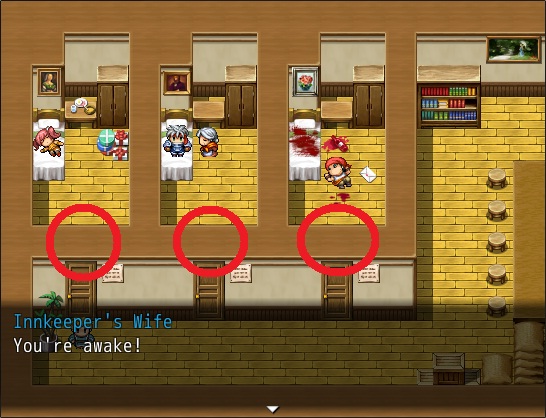

能设定门上的屋顶方块能穿过吗？

我為了下載

请问有没有方法能穿过那一格的墙壁？
还是要使用到脚本？

zeldafd

利用事件貼那一塊圖塊，再在事件中設置通行設置。

喵呜喵5

把这个图案复制到其他图块组(B、C、D)，通行设置设置为星号，门的上方那一格用这个图块来画

喵呜喵5

或者弄一张图案一样的行走图，在门的上方设置一个以此为图案的事件，事件优先级定义为在角色上方

爱尔伯塔

各位都说明了...
他们的方法都可以..

uuiio797

以下是地图区域穿透脚本，LS说的用事件也行。
脚本用法:
先复制脚本到你的工程。
如果要让该图块在人物头上并且穿过就在该图块区域添上区域号码1。
添上区域号码2就表示该区域不能通过。
添上3的话就表示该区域是秘密通道。
脚本来源:http://forums.rpgmakerweb.com/in ... -in-depth-maps-v20/

RUBY 代码复制

#××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××=×××
# In-Depth Maps v2.0
# FenixFyreX
# RPG Maker VxAce
#×××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××
# This script allows the player to define two regions:
# overhead ceilings, and blocking tiles.
# When the system finds the overhead ceilings region on top of a tile, it will
# move that tile to the highest layer in the tilemap, and put the tile above
# that tile (y - 1) in it's place on the 'ground', this allows the player to pass
# underneath the tile.
# To turn the system OFF, simply turn the switch defined below ON. To turn it
# on, flip the switch OFF. This allows the user to traverse the 'ceilings' when
# on top of them, but go behind them when on the ground.
#
#×××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××

module Fyx
  module MapDepth

    # This is the switch to turn ON to turn the overhead system OFF.
    # Remember, all switches are OFF by default, so the system is ON at startup.
    Switch = 1

    # Does the script turn on the switch automatically when each map loads?
    AutoSwitch = true

    # This is the region defining tiles that need to be above the player.
    Overhead_Region = 1

    # This is the region defining tiles that need to be unpassable no matter
    # what.
    Block_Region = 2

    # This is the region to use when defining 'secret passages'. This region
    # ensures that the tiles below it are ALWAYS above and passable.
    Secret_Region = 3

    # This is the user defined fall-back for when the system can't obtain a
    # tile to place under overhead tiles.
    Default_Ground_Tile = 2816
  end
end

#×××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××
# Don't edit below unless you know what it means.
#×××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××

class Game_Map

  alias setup_no_ceilings setup
  def setup(*a,&bl)
    setup_no_ceilings(*a,&bl)
    if Fyx::MapDepth::AutoSwitch
      $game_switches[ohead_switch] = false
    end
    @old_tileset_flags = tileset.flags
    @ohead_switch = ohead_sys_is_on?
    define_ceilings if ohead_sys_is_on?
  end

  def ohead_sys_is_on?
    return false if $game_switches[ohead_switch]
    return true
  end

  def ohead_switch
    Fyx::MapDepth::Switch
  end

  def ohead_region
    Fyx::MapDepth::Overhead_Region
  end

  def block_region
    Fyx::MapDepth::Block_Region
  end

  def secret_region
    Fyx::MapDepth::Secret_Region
  end

  def default_ground_tile
    Fyx::MapDepth::Default_Ground_Tile
  end

  def ceiling_ground_tile(x,y)
    return valid?(x,y-1) ? $game_map.data[x,y-1,0] : default_ground_tile
  end

  alias passable_no_ceilings? passable?
  def passable?(*a,&bl)
    if ohead_sys_is_on?
      return false if ceiling_block?(*a,&bl)
    end
    passable_no_ceilings?(*a,&bl)
  end

  def ceiling?(x,y)
    region_id(x,y) == ohead_region
  end

  def secret_passage?(x,y)
    region_id(x,y) == secret_region
  end

  def ceiling_block?(*a,&bl)
    x,y = *a[0...2]
    region_id(x,y) == block_region
  end

  def get_ceil_xys(clear=false)
    @ceilings = []
    @ceiling_blocks = []
    @pass_ceilings = []
    if clear
      @map = load_data(sprintf("Data/Map%03d.rvdata2", @map_id))
      tileset.flags = @old_tileset_flags
      return nil
    end
    height.times do |y|
      width.times do |x|
        @ceilings << [x,y] if ceiling?(x,y)
        @pass_ceilings << [x,y] if secret_passage?(x,y)
        @ceiling_blocks << [x,y] if ceiling_block?(x,y)
      end
    end
  end

  def define_ceilings
    get_ceil_xys
    @ceilings.each do |x,y|
      tid = $game_map.data[x,y,0]
      tileset.flags[tid] = 0x10
      $game_map.data[x,y,2] = tid
      $game_map.data[x,y,0] = ceiling_ground_tile(x,y)
    end
    @pass_ceilings.each do |x,y|
      tid = $game_map.data[x,y,0]
      tileset.flags[tid] = 0x10
      $game_map.data[x,y,2] = tid
      $game_map.data[x,y,0] = default_ground_tile
    end
  end

  alias update_no_ceilings update
  def update(*a,&bl)
    if @ohead_switch != ohead_sys_is_on?
      @ohead_switch = ohead_sys_is_on?
      if ohead_sys_is_on?
        define_ceilings
      else
        get_ceil_xys(true)
      end
    end
    update_no_ceilings(*a,&bl)
  end
end
#×××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××
# ×END OF SCRIPT×
#×××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××

#××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××=×××


# In-Depth Maps v2.0


# FenixFyreX


# RPG Maker VxAce


#×××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××


# This script allows the player to define two regions:


# overhead ceilings, and blocking tiles.


# When the system finds the overhead ceilings region on top of a tile, it will


# move that tile to the highest layer in the tilemap, and put the tile above


# that tile (y - 1) in it's place on the 'ground', this allows the player to pass


# underneath the tile.


# To turn the system OFF, simply turn the switch defined below ON. To turn it


# on, flip the switch OFF. This allows the user to traverse the 'ceilings' when


# on top of them, but go behind them when on the ground.


#


#×××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××





module Fyx


  module MapDepth





    # This is the switch to turn ON to turn the overhead system OFF.


    # Remember, all switches are OFF by default, so the system is ON at startup.


    Switch = 1





    # Does the script turn on the switch automatically when each map loads?


    AutoSwitch = true





    # This is the region defining tiles that need to be above the player.


    Overhead_Region = 1





    # This is the region defining tiles that need to be unpassable no matter


    # what.


    Block_Region = 2





    # This is the region to use when defining 'secret passages'. This region


    # ensures that the tiles below it are ALWAYS above and passable.


    Secret_Region = 3





    # This is the user defined fall-back for when the system can't obtain a


    # tile to place under overhead tiles.


    Default_Ground_Tile = 2816


  end


end





#×××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××


# Don't edit below unless you know what it means.


#×××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××





class Game_Map





  alias setup_no_ceilings setup


  def setup(*a,&bl)


    setup_no_ceilings(*a,&bl)


    if Fyx::MapDepth::AutoSwitch


      $game_switches[ohead_switch] = false


    end


    @old_tileset_flags = tileset.flags


    @ohead_switch = ohead_sys_is_on?


    define_ceilings if ohead_sys_is_on?


  end





  def ohead_sys_is_on?


    return false if $game_switches[ohead_switch]


    return true


  end





  def ohead_switch


    Fyx::MapDepth::Switch


  end





  def ohead_region


    Fyx::MapDepth::Overhead_Region


  end





  def block_region


    Fyx::MapDepth::Block_Region


  end





  def secret_region


    Fyx::MapDepth::Secret_Region


  end





  def default_ground_tile


    Fyx::MapDepth::Default_Ground_Tile


  end





  def ceiling_ground_tile(x,y)


    return valid?(x,y-1) ? $game_map.data[x,y-1,0] : default_ground_tile


  end





  alias passable_no_ceilings? passable?


  def passable?(*a,&bl)


    if ohead_sys_is_on?


      return false if ceiling_block?(*a,&bl)


    end


    passable_no_ceilings?(*a,&bl)


  end





  def ceiling?(x,y)


    region_id(x,y) == ohead_region


  end





  def secret_passage?(x,y)


    region_id(x,y) == secret_region


  end





  def ceiling_block?(*a,&bl)


    x,y = *a[0...2]


    region_id(x,y) == block_region


  end





  def get_ceil_xys(clear=false)


    @ceilings = []


    @ceiling_blocks = []


    @pass_ceilings = []


    if clear


      @map = load_data(sprintf("Data/Map%03d.rvdata2", @map_id))


      tileset.flags = @old_tileset_flags


      return nil


    end


    height.times do |y|


      width.times do |x|


        @ceilings << [x,y] if ceiling?(x,y)


        @pass_ceilings << [x,y] if secret_passage?(x,y)


        @ceiling_blocks << [x,y] if ceiling_block?(x,y)


      end


    end


  end





  def define_ceilings


    get_ceil_xys


    @ceilings.each do |x,y|


      tid = $game_map.data[x,y,0]


      tileset.flags[tid] = 0x10


      $game_map.data[x,y,2] = tid


      $game_map.data[x,y,0] = ceiling_ground_tile(x,y)


    end


    @pass_ceilings.each do |x,y|


      tid = $game_map.data[x,y,0]


      tileset.flags[tid] = 0x10


      $game_map.data[x,y,2] = tid


      $game_map.data[x,y,0] = default_ground_tile


    end


  end





  alias update_no_ceilings update


  def update(*a,&bl)


    if @ohead_switch != ohead_sys_is_on?


      @ohead_switch = ohead_sys_is_on?


      if ohead_sys_is_on?


        define_ceilings


      else


        get_ceil_xys(true)


      end


    end


    update_no_ceilings(*a,&bl)


  end


end


#×××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××


# ×END OF SCRIPT×


#×××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××

uuiio797

uuiio797 发表于 2012-11-28 12:47
以下是地图区域穿透脚本，LS说的用事件也行。
脚本用法:
先复制脚本到你的工程。

1号的用途:
当图上B图块的上方A图块没有任何图块挡住时就能通行，B图块就是遮挡的图块建筑。
