这个怎么做

hyx1963 · 发表于 2013-9-1 14:27:41

加入我们，或者，欢迎回来。

您需要登录才可以下载或查看，没有帐号？注册会员

x

张几个地图合起来，但没有断开的效果

Jousun · 发表于 2013-9-1 15:00:33

这个问题有点奇怪，有点小看不懂。

不过答案应该是：photoshop

hyx1963 · 发表于 2013-9-1 16:17:32

Jousun 发表于 2013-9-1 15:00
这个问题有点奇怪，有点小看不懂。

不过答案应该是：photoshop

？？？？？
这个你都讲得出真是xx啦

tseyik · 发表于 2013-9-1 16:29:56

本帖最后由 tseyik 于 2013-9-1 16:37 编辑

Connected Maps
http://himeworks.wordpress.com/2013/03/17/area-maps/
此腳本允許您將地圖連接在一起，提供一張地圖從無縫過渡到另一個。
你可以在單獨的部分中創建一張地圖，並將其所有一起以產生一個大地圖連接。
這應該在理論上允許您超過編輯器中所規定的 500 × 500 限制。
它們都使用相同的花紋，所以您不能連接兩個地圖有兩個不同的 tilesets

只看该作者 · 发表于 2013-9-1 18:21:06

提示: 作者被禁止或删除内容自动屏蔽

hyx1963 · 发表于 2013-9-1 21:31:11

david_ng223 发表于 2013-9-1 18:21
如果你的遊戲的畫面大小是544*416的話，可以在地圖上下預留7格，左右預留9格後，使用場景移動來進行地圖連 ...

你会有这种最lz的方法去做游戏吧

hyx1963 · 发表于 2013-9-1 21:32:41

tseyik 发表于 2013-9-1 16:29
Connected Maps
http://himeworks.wordpress.com/2013/03/17/area-maps/
此腳本允許您將地圖連接在一起，提 ...

什么来的打不开

tseyik · 发表于 2013-9-1 21:34:49

本帖最后由 tseyik 于 2013-9-1 21:39 编辑

=begin
#===============================================================================
Title: Connected Maps
Author: Tsukihime
Date: Apr 2, 2013
--------------------------------------------------------------------------------
** Change log
Apr 2
- added note-tag shortcut for width and height
Mar 17, 2013
- updated to support area map addon
- combined encounter lists
- fixed bug where transferring was not done correctly
- Initial release
--------------------------------------------------------------------------------
** Terms of Use
* Free to use in commercial/non-commercial projects
* No real support. The script is provided as-is
* Will do bug fixes, but no compatibility patches
* Features may be requested but no guarantees, especially if it is non-trivial
* Credits to Tsukihime in your project
* Preserve this header
--------------------------------------------------------------------------------
** Description

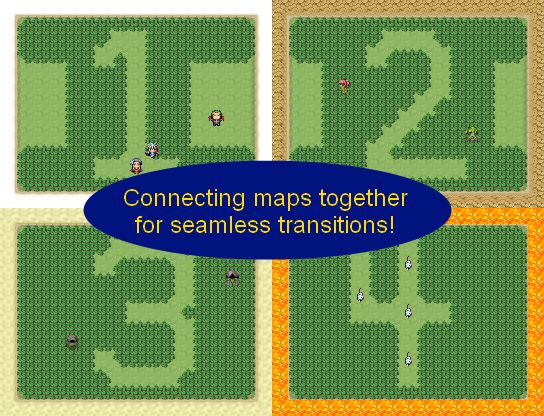

This script allows you to connect maps together, providing a seamless
transition from one map to another. You can create a map in separate parts
and then connect it all together to produce one large map. This allows you
to exceed the 500x500 limit imposed by the editor.
--------------------------------------------------------------------------------
** Usage
Place this script below Materials and above Main.
To connect a map to another, write a note-tag in the map object
<connect map: map_id offset_x offset_y>
<connect map: map_id offset_x offset_y recurse_limit>
The map_id is the ID of the map that you want to the current map.
Offset_x and Offset_y is the position that the new map will be placed.
You can use the letter "w" for offset_x to mean the width of the map.
You can use the letter "h" for offset_y to mean the height of the map.
The recurse_limit is special and will be described later.
-- Positioning modes --
There are two types of map connecting modes in this script.

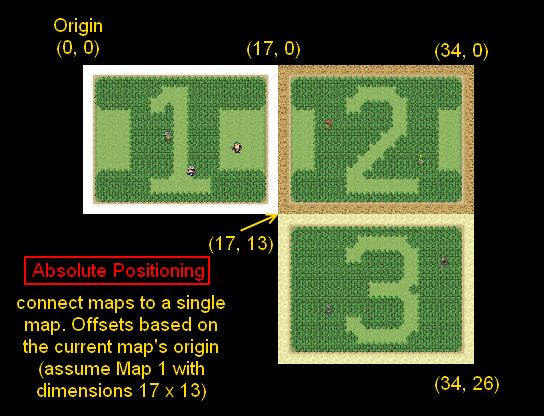

1. Absolute connection.
All offsets are specified relative to the current map, where the
origin is located at (0, 0), the upper-left corner of the current map.

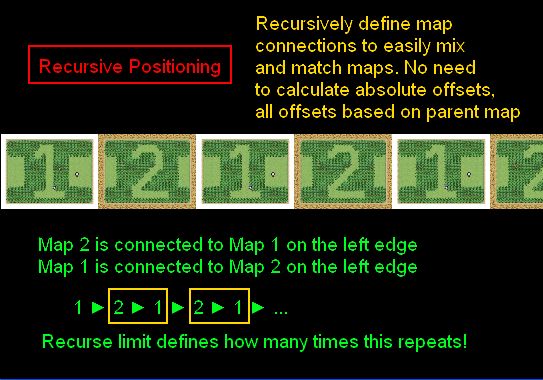

2. Recursive connection.
All offsets are specified relative to the parent map, where the
origin is the position of the upper-left corner of the parent map.
If you are using recursive mode, you can use the recurse limit in the note-tag.
The recurse limit is meant to save you some effort when connecting maps.
For example, suppose you have the following connection between two maps, A
and B
A --> B
B --> A
The recurse limit allows you to specify how many times these connections
should repeat. For example, if recurse limit is 2, then the connection is
allowed to repeat twice
A --> B --> A --> B --> A -> B -> A
There are some rules to follow when connecting maps
1. You start from the top-left, and connect maps to the right or below. You
cannot connect maps to the left or above, so plan carefully.
2. Maps that do not have equal dimensions will leave empty black squares that
are not passable.
3. Events can only reference events on the same map. They cannot reference
events from other maps.
#===============================================================================
=end
$imported = {} if $imported.nil?
$imported["TH_ConnectedMaps"] = true
#===============================================================================
# ** Configuration
#===============================================================================
module TH
module Connected_Maps
# Recursive mode allows you to connect maps relative to each other.
# Set this to false if youp refer absolute positioning. Though I think
# it is easier to leave it as recursive.
Recursive_Mode = true
Regex = /<connect[-_ ]map: (\d+)\s+(w|-?\d+)\s+(h|-?\d+)\s*(\d+)?>/im
end
end
#===============================================================================
# ** Rest of script
#===============================================================================
module RPG
class Map
def connected_maps
return @connected_maps unless @connected_maps.nil?
load_notetag_connected_maps
return @connected_maps
end
def load_notetag_connected_maps
@connected_maps = []
res = self.note.scan(TH::Connected_Maps::Regex)
res.each {|result|
map_id = result[0].to_i
offset_x = result[1] ? (result[1].downcase == "w" ? self.width : result[1].to_i) : 0
offset_y = result[2] ? (result[2].downcase == "h" ? self.height : result[2].to_i) : 0
recurse_limit = result[3] ? result[3].to_i : 1
@connected_maps.push([map_id, offset_x, offset_y, recurse_limit])
}
end
end
class Event
def update_for_map_connection(offset)
@pages.each {|page|
update_page_events(page, offset)
}
end
def update_page_events(page, offset)
page.list.each {|cmd|
case cmd.code
when 111 # cond branch, character (0, 1, 2, ...)
cmd.parameters[1] += offset if cmd.parameters[0] == 6 && cmd.parameters[1] > 0
when 122 # variables, character (0, 1 2, ... )
cmd.parameters[5] += offset if cmd.parameters[4] == 5 && cmd.parameters[5] > 0
when 203 # set event location
cmd.parameters[0] += offset if cmd.parameters[0] > 0
cmd.parameters[2] += offset if cmd.parameters[1] == 2 && cmd.parameters[2] > 0
when 205, 212, 213 # move route, animation, and balloon
cmd.parameters[0] += offset if cmd.parameters[0] > 0
end
}
end
end
end
class Game_Map
alias :th_connected_maps_setup :setup
def setup(map_id)
@new_width = nil
@new_height = nil
th_connected_maps_setup(map_id)
add_connected_maps(@map, {})
@map.width ||= @new_width
@map.height ||= @new_height
end
alias :th_connected_maps_width :width
def width
@new_width || th_connected_maps_width
end
alias :th_connected_maps_height :height
def height
@new_height || th_connected_maps_height
end
#-----------------------------------------------------------------------------
# Connect maps together with the current map. The recursive limit is a global
# limit, not a local limit, and is based on the number of times a map has
# been visited. TO-DO: implement as BFS...
#-----------------------------------------------------------------------------
def add_connected_maps(map, visited, ox=0, oy=0)
map.connected_maps.each {|map_id, offset_x, offset_y, recurse_limit|
visited[map_id] ||= 1
return if visited[map_id] > recurse_limit
visited[map_id] += 1
conmap = load_data(sprintf("Data/Map%03d.rvdata2", map_id))
setup_connected_map(map_id, ox, oy, offset_x, offset_y)
combine_maps(conmap.data, ox + offset_x, oy + offset_y)
combine_encounters(conmap.encounter_list)
combine_events(conmap.events, ox + offset_x, oy + offset_y, @events.keys.max || 0)
add_connected_maps(conmap, visited, ox + offset_x, oy + offset_y)
}
end
#-----------------------------------------------------------------------------
# Setup map metadata
#-----------------------------------------------------------------------------
def setup_connected_map(map_id, ox, oy, offset_x, offset_y)
end
#-----------------------------------------------------------------------------
# Extend the current map's tilemap with the new map's tile map. Resize
# only if needed. Remember that we are always connecting to the right or
# bottom.
#-----------------------------------------------------------------------------
def combine_maps(new_data, ox, oy)
new_x = ox + new_data.xsize >= width ? ox + new_data.xsize : width
new_y = oy + new_data.ysize >= height ? oy + new_data.ysize : height
@new_width = new_x
@new_height = new_y
@map.data.resize(new_x, new_y, @map.data.zsize)
for z in 0 ... 4
for x in 0 ... new_data.xsize
for y in 0 ... new_data.ysize
next if ox + x < 0 || oy + y < 0
@map.data[ox + x, oy + y, z] = new_data[x, y, z]
end
end
end
end
#-----------------------------------------------------------------------------
# Extend the current map's encounters with the new map's events, updating all
# events and event references as necessary
#-----------------------------------------------------------------------------
def combine_encounters(new_enc_list)
@map.encounter_list.concat(new_enc_list)
end
#-----------------------------------------------------------------------------
# Extend the current map's events with the new map's events, updating all
# events and event references as necessary
#-----------------------------------------------------------------------------
def combine_events(events, ofs_x, ofs_y, ofs_evt)
new_events = {}
events.each {|id, event|
new_id = id + ofs_evt
event.id = new_id
event.x += ofs_x
event.y += ofs_y
event.update_for_map_connection(ofs_evt)
@map.events[new_id] = event
new_events[new_id] = event
}
setup_new_events(new_events)
end
#-----------------------------------------------------------------------------
# Set up our new events
#-----------------------------------------------------------------------------
def setup_new_events(events)
events.each do |i, event|
@events[i] = Game_Event.new(@map_id, event)
end
end
end

复制代码

hyx1963 · 发表于 2013-9-1 22:17:10

本帖最后由 hyx1963 于 2013-9-1 22:18 编辑

tseyik 发表于 2013-9-1 21:34

上面英文与识我我5识与步骤

tseyik · 发表于 2013-9-2 11:48:09

本帖最后由 tseyik 于 2013-9-2 11:57 编辑

hyx1963 发表于 2013-9-1 22:17
上面英文与识我我5识与步骤

1:貼上脚本

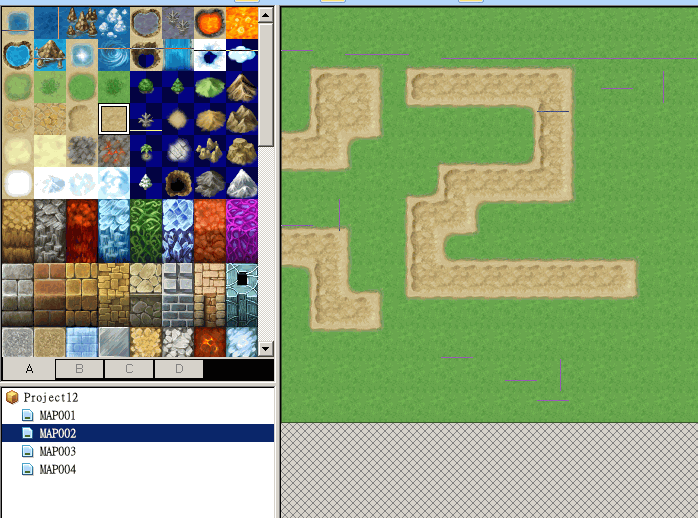

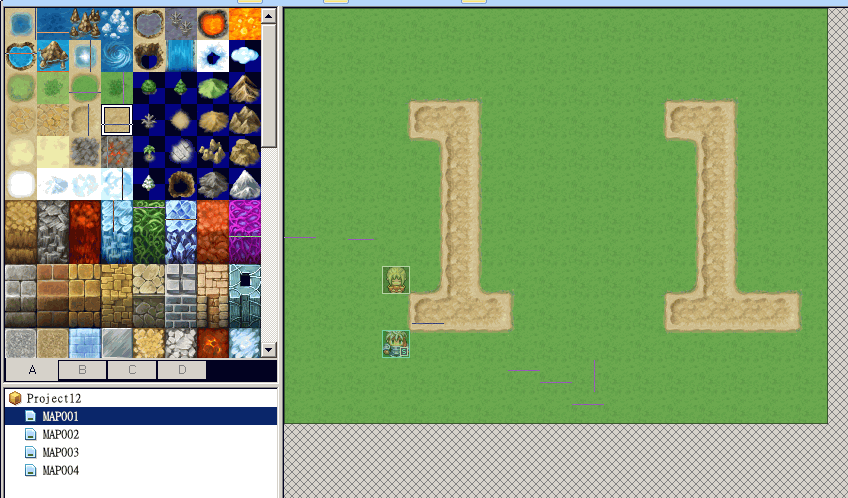

2:做四個新地圖(大小)17x14(如本無地圖)
3:在地圖1的附註加入<connect map: 2 17 0>
4:在地圖1的附註再加入<connect map: 4 0 13>
5:在地圖1的附註再加入<connect map: 3 17 13>
運行遊戯

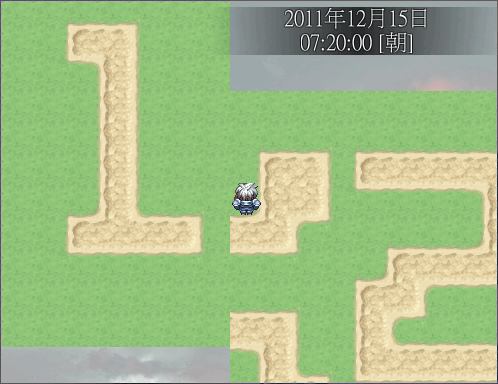

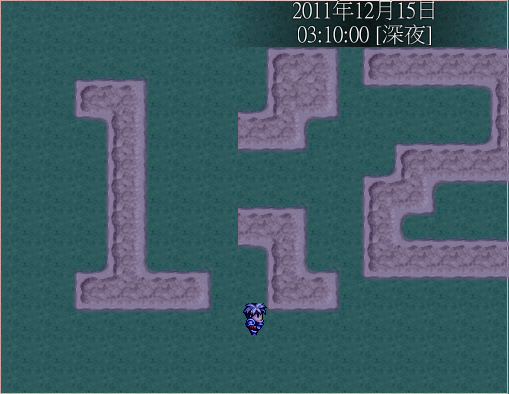

就會看到如下圖,四個地圖合而為一

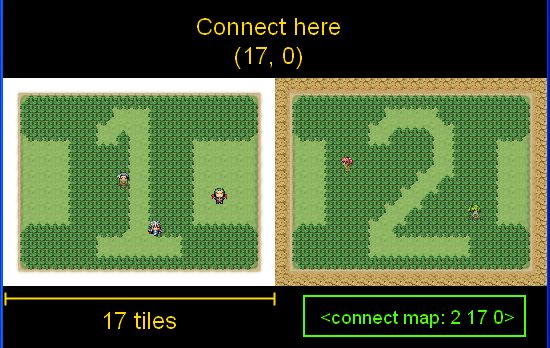

<connect map: 2 17 0>
<指令　　地圖ID　　X　　y>
其他用法自己摸索
