强迫症阴影图块

Galleesen · 发表于 2017-4-30 16:38:32

加入我们，或者，欢迎回来。

您需要登录才可以下载或查看，没有账号？注册会员

×

实在是受不了原作的阴影系统然后就自己画了一个

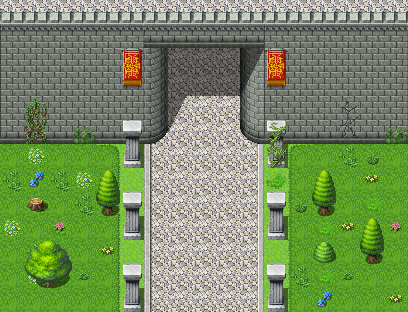

使用前：

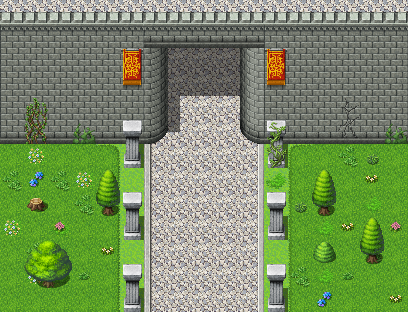

使用后：

下载：

Galleesen · 发表于 2017-4-30 16:40:17

谁有办法可以按原分辨率把地图存成jpg

sutao80216 · 发表于 2017-4-30 17:25:08

Galleesen 发表于 2017-4-30 16:40
谁有办法可以按原分辨率把地图存成jpg

[pre lang="javascript" line="1" file="OrangeMapshot.js"]/*=============================================================================
* Orange - Mapshot
* By Hudell - www.hudell.com
* OrangeMapshot.js
* Version: 1.7
* Free for commercial and non commercial use.
*=============================================================================*/
/*:
* @plugindesc This plugin will save a picture of the entire map on a Mapshots folder when you press a key. <OrangeMapshot>
* @author Hudell
*
* @param useMapName
* @desc if true, the filename will be the name of the map. If false it will be the number.
* @default true
*
* @param layerType
* @desc 0 = all, 1 = upper and lower, 2 = separate everything
* @default 0
*
* @param drawAutoShadows
* @desc set this to false to disable autoshadows on the map shot
* @default true
*
* @param drawEvents
* @desc set this to false to stop drawing the events on the full bitmap
* @default true
*
* @param keyCode
* @desc code of the key that will be used (44 = printscreen). http://link.hudell.com/js-keys
* @default 44
*
* @param imageType
* @desc What type of image should be generated. Can be png, jpeg or webp
* @default png
*
* @param imageQuality
* @desc If the imageType is jpeg or webp, you can set this to a number between 0 and 100 indicating the quality of the image
* @default 70
*
* @param imagePath
* @desc The path where the images will be saved
* @default ./Mapshots
*
* @help
* Check keycodes at  http://link.hudell.com/js-keys
*/
var Imported = Imported || {};

var OrangeMapshot = OrangeMapshot || {};

(function($) {
  "use strict";

  var parameters = $plugins.filter(function(plugin) {
return plugin.description.indexOf('<OrangeMapshot>') >= 0;
  });
  if (parameters.length === 0) {
throw new Error("Couldn't find OrangeMapshot parameters.");
  }
  $.Parameters = parameters[0].parameters;

  $.Param = {};
  $.Param.useMapName = $.Parameters.useMapName !== "false";
  $.Param.drawAutoShadows = $.Parameters.drawAutoShadows !== "false";
  $.Param.drawEvents = $.Parameters.drawEvents !== "false";
  $.Param.layerType = Number($.Parameters.layerType || 0);
  $.Param.imageType = $.Parameters.imageType || 'png';
  $.Param.imagePath = $.Parameters.imagePath || './Mapshots';
  $.Param.imageQuality = Number($.Parameters.imageQuality || 70);

  $.Param.keyCode = Number($.Parameters.keyCode || 44);

  $.imageType = function() {
if ($.Param.imageType == 'webp') return 'image/webp';
if ($.Param.imageType == 'jpeg' || $.Param.imageType == 'jpg') return 'image/jpeg';
return 'image/png';
  };

  $.imageRegex = function() {
if ($.Param.imageType == 'webp') return (/^data:image\/webp;base64,/);
if ($.Param.imageType == 'jpeg' || $.Param.imageType == 'jpg') return (/^data:image\/jpeg;base64,/);

return (/^data:image\/png;base64,/);
  };

  $.fileExtension = function() {
if ($.Param.imageType == 'webp') return '.webp';
if ($.Param.imageType == 'jpeg' || $.Param.imageType == 'jpg') return '.jpg';
return '.png';
  };

  $.imageQuality = function() {
if ($.fileExtension() == '.jpg' || $.fileExtension() == '.webp') {
   return Math.min($.Param.imageQuality, 100) / 100;
}

return 1;
  };

  $.baseFileName = function() {
var mapName = ($gameMap._mapId).padZero(3);
if ($.Param.useMapName) {
   mapName = $dataMapInfos[$gameMap._mapId].name;
} else {
   mapName = 'Map' + mapName;
}

return mapName;
  };

  $.getMapshot = function() {
var lowerBitmap;
var upperBitmap;

switch($.Param.layerType) {
   case 1 :
      lowerBitmap = new Bitmap($dataMap.width * $gameMap.tileWidth(), $dataMap.height * $gameMap.tileHeight());
      upperBitmap = new Bitmap($dataMap.width * $gameMap.tileWidth(), $dataMap.height * $gameMap.tileHeight());
      SceneManager._scene._spriteset._tilemap._paintEverything(lowerBitmap, upperBitmap);

      return [lowerBitmap, upperBitmap];
   case 2 :
      var groundBitmap = new Bitmap($dataMap.width * $gameMap.tileWidth(), $dataMap.height * $gameMap.tileHeight());
      var ground2Bitmap = new Bitmap($dataMap.width * $gameMap.tileWidth(), $dataMap.height * $gameMap.tileHeight());
      var lowerBitmapLayer = new Bitmap($dataMap.width * $gameMap.tileWidth(), $dataMap.height * $gameMap.tileHeight());
      var upperBitmapLayer = new Bitmap($dataMap.width * $gameMap.tileWidth(), $dataMap.height * $gameMap.tileHeight());
      var shadowBitmap = new Bitmap($dataMap.width * $gameMap.tileWidth(), $dataMap.height * $gameMap.tileHeight());
      var lowerEvents = new Bitmap($dataMap.width * $gameMap.tileWidth(), $dataMap.height * $gameMap.tileHeight());
      var normalEvents = new Bitmap($dataMap.width * $gameMap.tileWidth(), $dataMap.height * $gameMap.tileHeight());
      var upperEvents = new Bitmap($dataMap.width * $gameMap.tileWidth(), $dataMap.height * $gameMap.tileHeight());

      SceneManager._scene._spriteset._tilemap._paintLayered(groundBitmap, ground2Bitmap, lowerBitmapLayer, upperBitmapLayer, shadowBitmap, lowerEvents, normalEvents, upperEvents);
      return [groundBitmap, ground2Bitmap, lowerBitmapLayer, upperBitmapLayer, shadowBitmap, lowerEvents, normalEvents, upperEvents];
   default :
      lowerBitmap = new Bitmap($dataMap.width * $gameMap.tileWidth(), $dataMap.height * $gameMap.tileHeight());
      upperBitmap = new Bitmap($dataMap.width * $gameMap.tileWidth(), $dataMap.height * $gameMap.tileHeight());
      SceneManager._scene._spriteset._tilemap._paintEverything(lowerBitmap, upperBitmap);

      var bitmap = new Bitmap($dataMap.width * $gameMap.tileWidth(), $dataMap.height * $gameMap.tileHeight());
      bitmap.blt(lowerBitmap, 0, 0, lowerBitmap.width, lowerBitmap.height, 0, 0, lowerBitmap.width, lowerBitmap.height);
      bitmap.blt(upperBitmap, 0, 0, upperBitmap.width, upperBitmap.height, 0, 0, upperBitmap.width, upperBitmap.height);
      return [bitmap];
}
  };

  function MapShotTileMap() {
  }

  MapShotTileMap.prototype = Object.create(Tilemap.prototype);
  MapShotTileMap.prototype.constructor = MapShotTileMap;

  MapShotTileMap.prototype._drawAutotile = function(bitmap, tileId, dx, dy) {
var autotileTable = Tilemap.FLOOR_AUTOTILE_TABLE;
var kind = Tilemap.getAutotileKind(tileId);
var shape = Tilemap.getAutotileShape(tileId);
var tx = kind % 8;
var ty = Math.floor(kind / 8);
var bx = 0;
var by = 0;
var setNumber = 0;
var isTable = false;

if (Tilemap.isTileA1(tileId)) {
   var waterSurfaceIndex = [0, 1, 2, 1][this.animationFrame % 4];
   setNumber = 0;
   if (kind === 0) {
      bx = waterSurfaceIndex * 2;
      by = 0;
   } else if (kind === 1) {
      bx = waterSurfaceIndex * 2;
      by = 3;
   } else if (kind === 2) {
      bx = 6;
      by = 0;
   } else if (kind === 3) {
      bx = 6;
      by = 3;
   } else {
      bx = Math.floor(tx / 4) * 8;
      by = ty * 6 + Math.floor(tx / 2) % 2 * 3;
      if (kind % 2 === 0) {
      bx += waterSurfaceIndex * 2;
      }
      else {
      bx += 6;
      autotileTable = Tilemap.WATERFALL_AUTOTILE_TABLE;
      by += this.animationFrame % 3;
      }
   }
} else if (Tilemap.isTileA2(tileId)) {
   setNumber = 1;
   bx = tx * 2;
   by = (ty - 2) * 3;
   isTable = this._isTableTile(tileId);
} else if (Tilemap.isTileA3(tileId)) {
   setNumber = 2;
   bx = tx * 2;
   by = (ty - 6) * 2;
   autotileTable = Tilemap.WALL_AUTOTILE_TABLE;
} else if (Tilemap.isTileA4(tileId)) {
   setNumber = 3;
   bx = tx * 2;
   by = Math.floor((ty - 10) * 2.5 + (ty % 2 === 1 ? 0.5 : 0));
   if (ty % 2 === 1) {
      autotileTable = Tilemap.WALL_AUTOTILE_TABLE;
   }
}

var table = autotileTable[shape];
var source = this.bitmaps[setNumber];

if (table && source) {
   var w1 = this._tileWidth / 2;
   var h1 = this._tileHeight / 2;
   for (var i = 0; i < 4; i++) {
      var qsx = table[0];
      var qsy = table[1];
      var sx1 = (bx * 2 + qsx) * w1;
      var sy1 = (by * 2 + qsy) * h1;
      var dx1 = dx + (i % 2) * w1;
      var dy1 = dy + Math.floor(i / 2) * h1;
      if (isTable && (qsy === 1 || qsy === 5)) {
      var qsx2 = qsx;
      var qsy2 = 3;
      if (qsy === 1) {
         qsx2 = [0,3,2,1][qsx];
      }
      var sx2 = (bx * 2 + qsx2) * w1;
      var sy2 = (by * 2 + qsy2) * h1;
      bitmap.blt(source, sx2, sy2, w1, h1, dx1, dy1, w1, h1);
      dy1 += h1/2;
      bitmap.blt(source, sx1, sy1, w1, h1 / 2, dx1, dy1, w1, h1 / 2);
      } else {
      bitmap.blt(source, sx1, sy1, w1, h1, dx1, dy1, w1, h1);
      }
   }
}
  };

  MapShotTileMap.prototype._drawNormalTile = function(bitmap, tileId, dx, dy) {
var setNumber = 0;

if (Tilemap.isTileA5(tileId)) {
   setNumber = 4;
} else {
   setNumber = 5 + Math.floor(tileId / 256);
}

var w = this._tileWidth;
var h = this._tileHeight;
var sx = (Math.floor(tileId / 128) % 2 * 8 + tileId % 8) * w;
var sy = (Math.floor(tileId % 256 / 8) % 16) * h;

var source = this.bitmaps[setNumber];
if (source) {
   bitmap.blt(source, sx, sy, w, h, dx, dy, w, h);
}
  };

  MapShotTileMap.prototype._drawTableEdge = function(bitmap, tileId, dx, dy) {
if (Tilemap.isTileA2(tileId)) {
   var autotileTable = Tilemap.FLOOR_AUTOTILE_TABLE;
   var kind = Tilemap.getAutotileKind(tileId);
   var shape = Tilemap.getAutotileShape(tileId);
   var tx = kind % 8;
   var ty = Math.floor(kind / 8);
   var setNumber = 1;
   var bx = tx * 2;
   var by = (ty - 2) * 3;
   var table = autotileTable[shape];

   if (table) {
      var source = this.bitmaps[setNumber];
      var w1 = this._tileWidth / 2;
      var h1 = this._tileHeight / 2;
      for (var i = 0; i < 2; i++) {
      var qsx = table[2 + i][0];
      var qsy = table[2 + i][1];
      var sx1 = (bx * 2 + qsx) * w1;
      var sy1 = (by * 2 + qsy) * h1 + h1/2;
      var dx1 = dx + (i % 2) * w1;
      var dy1 = dy + Math.floor(i / 2) * h1;
      bitmap.blt(source, sx1, sy1, w1, h1/2, dx1, dy1, w1, h1/2);
      }
   }
}
  };

  Tilemap.prototype._drawTileOldStyle = function(bitmap, tileId, dx, dy) {
if (Tilemap.isVisibleTile(tileId)) {
   if (Tilemap.isAutotile(tileId)) {
      MapShotTileMap.prototype._drawAutotile.call(this, bitmap, tileId, dx, dy);
   } else {
      MapShotTileMap.prototype._drawNormalTile.call(this, bitmap, tileId, dx, dy);
   }
}
  };

  Tilemap.prototype._paintEverything = function(lowerBitmap, upperBitmap) {
var tileCols = $dataMap.width;
var tileRows = $dataMap.height;

for (var y = 0; y < tileRows; y++) {
   for (var x = 0; x < tileCols; x++) {
      this._paintTilesOnBitmap(lowerBitmap, upperBitmap, x, y);
   }
}

if ($.Param.drawEvents !== false) {
   this._paintCharacters(lowerBitmap, 0);
   this._paintCharacters(lowerBitmap, 1);
   this._paintCharacters(upperBitmap, 2);
}
  };

  Tilemap.prototype._paintLayered = function(groundBitmap, ground2Bitmap, lowerBitmap, upperLayer, shadowBitmap, lowerEvents, normalEvents, upperEvents) {
var tileCols = $dataMap.width;
var tileRows = $dataMap.height;

for (var y = 0; y < tileRows; y++) {
   for (var x = 0; x < tileCols; x++) {
      this._paintTileOnLayers(groundBitmap, ground2Bitmap, lowerBitmap, upperLayer, shadowBitmap, x, y);
   }
}

this._paintCharacters(lowerEvents, 0);
this._paintCharacters(normalEvents, 1);
this._paintCharacters(upperEvents, 2);
  };

  Tilemap.prototype._paintCharacters = function(bitmap, priority) {
this.children.forEach(function(child) {
   if (child instanceof Sprite_Character) {
      if (child._character !== null) {
      if (child._character instanceof Game_Player || child._character instanceof Game_Follower || child._character instanceof Game_Vehicle) return;
      }

      child.update();

      if (child._characterName === '' && child._tileId === 0) return;
      if (priority !== undefined && child._character._priorityType !== priority) return;

      var x = child.x - child._frame.width / 2 + $gameMap._displayX * $gameMap.tileWidth();
      var y = child.y - child._frame.height + $gameMap._displayY * $gameMap.tileHeight();

      bitmap.blt(child.bitmap, child._frame.x, child._frame.y, child._frame.width, child._frame.height, x, y, child._frame.width, child._frame.height);
   }
});
  };

  Tilemap.prototype._paintTileOnLayers = function(groundBitmap, ground2Bitmap, lowerBitmap, upperBitmap, shadowBitmap, x, y) {
var tableEdgeVirtualId = 10000;
var mx = x;
var my = y;
var dx = (mx * this._tileWidth);
var dy = (my * this._tileHeight);
var lx = dx / this._tileWidth;
var ly = dy / this._tileHeight;
var tileId0 = this._readMapData(mx, my, 0);
var tileId1 = this._readMapData(mx, my, 1);
var tileId2 = this._readMapData(mx, my, 2);
var tileId3 = this._readMapData(mx, my, 3);
var shadowBits = this._readMapData(mx, my, 4);
var upperTileId1 = this._readMapData(mx, my - 1, 1);

if (groundBitmap !== undefined) {
   groundBitmap.clearRect(dx, dy, this._tileWidth, this._tileHeight);
}

if (ground2Bitmap !== undefined) {
   ground2Bitmap.clearRect(dx, dy, this._tileWidth, this._tileHeight);
}

if (lowerBitmap !== undefined) {
   lowerBitmap.clearRect(dx, dy, this._tileWidth, this._tileHeight);
}

if (upperBitmap !== undefined) {
   upperBitmap.clearRect(dx, dy, this._tileWidth, this._tileHeight);
}

if (shadowBitmap !== undefined) {
   shadowBitmap.clearRect(dx, dy, this._tileWidth, this._tileHeight);
}

var me = this;

function drawTiles(bitmap, tileId, shadowBits, upperTileId1) {
   if (tileId < 0) {
      if ($.Param.drawAutoShadows && shadowBits !== undefined) {
      MapShotTileMap.prototype._drawShadow.call(me, bitmap, shadowBits, dx, dy);
      }
   } else if (tileId >= tableEdgeVirtualId) {
      MapShotTileMap.prototype._drawTableEdge.call(me, bitmap, upperTileId1, dx, dy);
   } else {
      me._drawTileOldStyle(bitmap, tileId, dx, dy);
   }
}

if (groundBitmap !== undefined) {
   drawTiles(groundBitmap, tileId0, undefined, upperTileId1);

   if (shadowBitmap !== undefined && tileId0 < 0) {
      drawTiles(shadowBitmap, tileId0, shadowBits, upperTileId1);
   }
}

if (ground2Bitmap !== undefined) {
   drawTiles(ground2Bitmap, tileId1, undefined, upperTileId1);

   if (shadowBitmap !== undefined && tileId1 < 0) {
      drawTiles(shadowBitmap, tileId1, shadowBits, upperTileId1);
   }
}

if (lowerBitmap !== undefined) {
   drawTiles(lowerBitmap, tileId2, undefined, upperTileId1);

   if (shadowBitmap !== undefined && tileId2 < 0) {
      drawTiles(shadowBitmap, tileId2, shadowBits, upperTileId1);
   }
}

if (upperBitmap !== undefined) {
   drawTiles(upperBitmap, tileId3, shadowBits, upperTileId1);

   if (shadowBitmap !== undefined && tileId3 < 0) {
      drawTiles(shadowBitmap, tileId3, shadowBits, upperTileId1);
   }
}
  };

  Tilemap.prototype._paintTilesOnBitmap = function(lowerBitmap, upperBitmap, x, y) {
var tableEdgeVirtualId = 10000;
var mx = x;
var my = y;
var dx = (mx * this._tileWidth);
var dy = (my * this._tileHeight);
var lx = dx / this._tileWidth;
var ly = dy / this._tileHeight;
var tileId0 = this._readMapData(mx, my, 0);
var tileId1 = this._readMapData(mx, my, 1);
var tileId2 = this._readMapData(mx, my, 2);
var tileId3 = this._readMapData(mx, my, 3);
var shadowBits = this._readMapData(mx, my, 4);
var upperTileId1 = this._readMapData(mx, my - 1, 1);
var lowerTiles = [];
var upperTiles = [];

if (this._isHigherTile(tileId0)) {
   upperTiles.push(tileId0);
} else {
   lowerTiles.push(tileId0);
}
if (this._isHigherTile(tileId1)) {
   upperTiles.push(tileId1);
} else {
   lowerTiles.push(tileId1);
}

lowerTiles.push(-shadowBits);

if (this._isTableTile(upperTileId1) && !this._isTableTile(tileId1)) {
   if (!Tilemap.isShadowingTile(tileId0)) {
      lowerTiles.push(tableEdgeVirtualId + upperTileId1);
   }
}

if (this._isOverpassPosition(mx, my)) {
   upperTiles.push(tileId2);
   upperTiles.push(tileId3);
} else {
   if (this._isHigherTile(tileId2)) {
      upperTiles.push(tileId2);
   } else {
      lowerTiles.push(tileId2);
   }
   if (this._isHigherTile(tileId3)) {
      upperTiles.push(tileId3);
   } else {
      lowerTiles.push(tileId3);
   }
}

lowerBitmap.clearRect(dx, dy, this._tileWidth, this._tileHeight);
upperBitmap.clearRect(dx, dy, this._tileWidth, this._tileHeight);

for (var i = 0; i < lowerTiles.length; i++) {
   var lowerTileId = lowerTiles;
   if (lowerTileId < 0) {
      if ($.Param.drawAutoShadows) {
      MapShotTileMap.prototype._drawShadow.call(this, lowerBitmap, shadowBits, dx, dy);
      }
   } else if (lowerTileId >= tableEdgeVirtualId) {
      MapShotTileMap.prototype._drawTableEdge.call(this, lowerBitmap, upperTileId1, dx, dy);
   } else {
      this._drawTileOldStyle(lowerBitmap, lowerTileId, dx, dy);
   }
}

for (var j = 0; j < upperTiles.length; j++) {
   this._drawTileOldStyle(upperBitmap, upperTiles[j], dx, dy);
}
  };

  $.saveMapshot = function() {
if (!Utils.isNwjs()) return;

var fs = require('fs');
var path = $.Param.imagePath;

try {
   fs.mkdir(path, function() {
      try{
      var fileName = path + '/' + $.baseFileName();
      var ext = $.fileExtension();
      var names = [fileName + ext];
      var regex = $.imageRegex();

      switch ($.Param.layerType) {
         case 1 :
            names = [
            fileName + ' Lower' + ext,
            fileName + ' Upper' + ext
            ];
            break;
         case 2 :
            names = [
            fileName + ' Ground' + ext,
            fileName + ' Ground 2' + ext,
            fileName + ' Lower' + ext,
            fileName + ' Upper' + ext,
            fileName + ' Shadows' + ext,
            fileName + ' Lower Events' + ext,
            fileName + ' Normal Events' + ext,
            fileName + ' Upper Events' + ext
            ];

            break;
         default :
            names = [fileName + ext];
            break;
      }

      var snaps = $.getMapshot();

      var callback = function(error) {
         if (error !== undefined && error !== null) {
            console.error('An error occured while saving the mapshot', error);
         }
      };

      for (var i = 0; i < names.length; i++) {
         var urlData = snaps.canvas.toDataURL($.imageType(), $.imageQuality());
         var base64Data = urlData.replace(regex, "");

         fs.writeFile(names, base64Data, 'base64', callback);
      }
      } catch (error) {
      if (error !== undefined && error !== null) {
         console.error('An error occured while saving the map shot:', error);
      }
      }
   });

   var nodePath = require('path');
   var longPath = nodePath.resolve(path);

   if (process.platform == 'win32' && $._openedFolder === undefined) {
      $._openedFolder = true;

      setTimeout(function(){
      var exec = require('child_process').exec;
      exec('explorer ' + longPath);
      }, 100);
   } else {
      $gameMessage.add('Mapshot saved to \n' + longPath.replace(/\\/g, '\\\\').match(/.{1,40}/g).join('\n'));
   }

} catch (error) {
   if (error !== undefined && error !== null) {
      console.error('An error occured while saving the mapshot:', error);
   }
}
  };

  $.onKeyUp = function(event) {
if (event.keyCode == $.Param.keyCode) {
   if (SceneManager._scene instanceof Scene_Map) {
      $.saveMapshot();
   }
}
  };

  document.addEventListener('keyup', $.onKeyUp);
})(OrangeMapshot);

Imported.OrangeMapshot = 1.7;
[/pre]

Galleesen · 发表于 2017-4-30 18:05:55

sutao80216 发表于 2017-4-30 17:25
/*=============================================================================
* Orange - Mapsho ...

泄泄！太感谢了

Nic0 · 发表于 2017-5-5 16:36:49

sutao80216 发表于 2017-4-30 17:25
/*=============================================================================
* Orange - Mapsho ...

谢谢分享，1.4可以用

大胃王大卫 · 发表于 2017-9-5 17:41:07

sutao80216 发表于 2017-4-30 17:25
/*=============================================================================
* Orange - Mapsho ...

我这串代码已经安装好了请问是在游戏运行中按PrintScreen 吗然后png图片是自动保存在 img/Mapshots 文件夹吗求告知？

大胃王大卫 · 发表于 2017-9-5 17:41:58

Nic0 发表于 2017-5-5 16:36
谢谢分享，1.4可以用

我这串代码已经安装好了请问是在游戏运行中按PrintScreen 吗然后png图片是自动保存在 img/Mapshots 文件夹吗求告知？

1970359915 · 发表于 2024-3-26 11:10:13

1.6.3版本好像用不了，我按Print Screen 键快按烂了都没有反应

小秋橙 · 发表于 2024-3-26 16:15:48

1970359915 发表于 2024-3-26 11:10
1.6.3版本好像用不了，我按Print Screen 键快按烂了都没有反应

挖坟可耻，print screen键按了要自己去找个地方（比如聊天框）ctrl+v粘贴出来，或者你可以用win+shift+S

1970359915 · 发表于 2024-3-26 21:30:43

小秋橙发表于 2024-3-26 16:15
挖坟可耻，print screen键按了要自己去找个地方（比如聊天框）ctrl+v粘贴出来，或者你可以用win+shift+S ...

哇咔咔，谢谢

[原创发布] 强迫症阴影图块

加入我们，或者，欢迎回来。

评分

点评

点评

评分

MZ评测员
