你们有没有拿RM做这种事

kuerlulu · 发表于 2014-4-19 20:32:18

加入我们，或者，欢迎回来。

您需要登录才可以下载或查看，没有账号？注册会员

×

嘛，，在下指的是画函数图象啦...#想歪的不用去面壁#

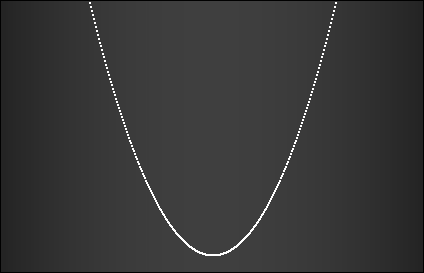

二次函数

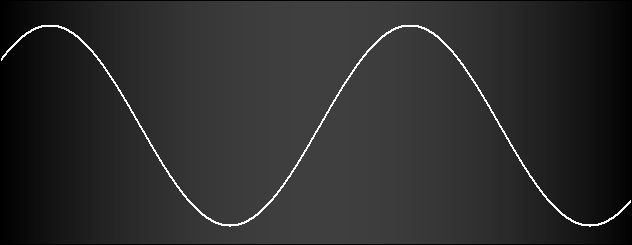

正弦
其它的比如y = x什么的太简单就不放了
脚本在这：
[pre lang="ruby" line="1"]class Fx
  include Math
  def initialize
@sprite = Sprite.new
@sprite.bitmap = Bitmap.new(640,480)
@sprite.ox,@sprite.oy = 320,240
@sprite.x,@sprite.y = 320,240
  end
  def clear
@sprite.bitmap.clear
  end
  # text = f(x) = "2*x"
  def draw(text)
for x in -320..320
   y = eval(text)
   @sprite.bitmap.draw_text(x + 320, 240 - y, 22, 22, '.')
end
  end
  # args = [[x1,y1],[x2,y2]...]
  def lines(*args)
for i in 1..args.size
   i == args.size ? line(args[i-1], args[0]) : line(args[i-1], args)
end
  end
  def line(pos1, pos2)
x1,y1 = *pos1
x2,y2 = *pos2
(x2-x1).abs.times do | x |
   @sprite.bitmap.draw_text(x1+x+320, 240-x*(y2-y1)/(x2-x1)-y1, 22, 22, '.')
end
  end
  def transition(color1, color2)
for x in 0..640
   r = (color1.red*(640-x) + color2.red*x  )/640
   g = (color1.green*(640-x) + color2.green*x)/640
   b = (color1.blue*(640-x)  + color2.blue*x )/640
   a = (color1.alpha*(640-x) + color2.alpha*x)/640
   @sprite.bitmap.fill_rect(x, 0, 1, 480, Color.new(r,g,b,a))
end
  end
  # r = 角度 = 30 中心旋转矩阵变换公式会造成像素丢失不如angle
  def turn(r)
a = @sprite.bitmap
b = Bitmap.new(a.width*3/2, a.height*3/2)
for x in 0...a.width
   for y in 0...a.height
      c = a.get_pixel(x, y)
      x1 = (x-a.width/2)*cos(r*PI/180)-(y-a.height/2)*sin(r*PI/180)+a.width/2
      y1 = (x-a.width/2)*sin(r*PI/180)+(y-a.height/2)*cos(r*PI/180)+a.height/2
      b.set_pixel(x1, y1, c)
   end
end
@sprite.bitmap = b
  end
  def angle=(r)
@sprite.angle = 360-r
  end
end

f = Fx.new
f.transition(Color.new(0,0,0,255), Color.new(255,255,255,0))
f.draw("sin(x*PI/180)*100")
loop{Graphics.update}[/pre]
在下好无聊
