请问怎么在选取菜单的时候让背景完全透明

buyanhai

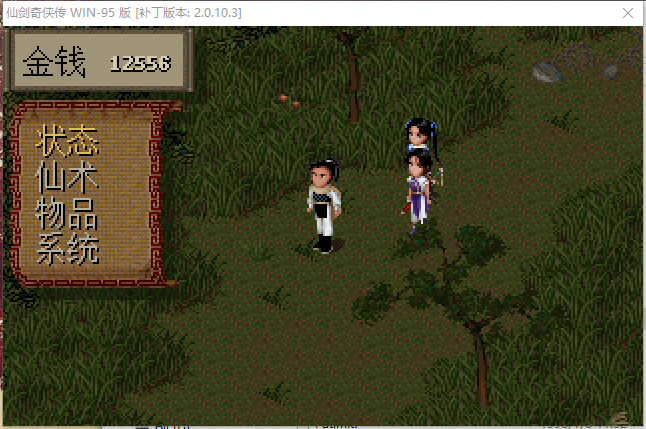

   想做成像仙剑那样除了状态栏和金钱栏外其余完全透明的窗口。
    #--------------------------------------------------------------------------
  # ● 生成背景
  #--------------------------------------------------------------------------
  def create_background
    @background_sprite = Sprite.new
    @background_sprite.bitmap = SceneManager.background_bitmap
    @background_sprite.color.set(0, 0, 0, 0)#(16, 16, 16, 128)
  end

#--------------------------------------------------------------------------
  # ● 获取背景用的场景截图
  #--------------------------------------------------------------------------
  def self.background_bitmap
    @background_bitmap
  end
end
#------------------------------------------------------------------
@background_bitmap = nil

buyanhai

顺便再请教个问题，结束游戏之类的符号 按照我目前的理解是在游戏的"Data/System.rvdata2"文件中

如果我想将"结束游戏"改成"结束"应该怎么做？

QQ蚊子湯

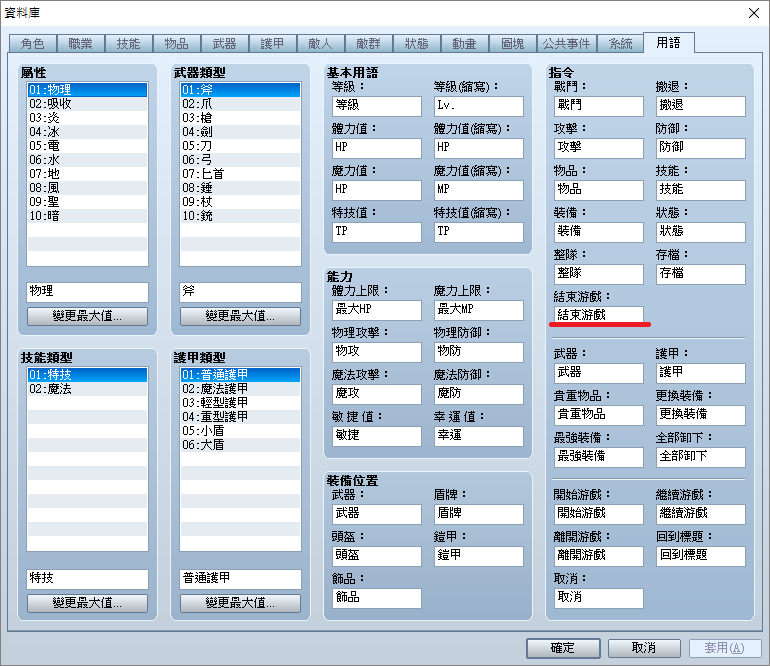

修改畫紅線的地方


第一個你不是做好了嗎~

buyanhai

QQ蚊子湯 发表于 2016-11-16 22:51
修改畫紅線的地方

  谢谢啦~ 原来资料库里就可以改啊~

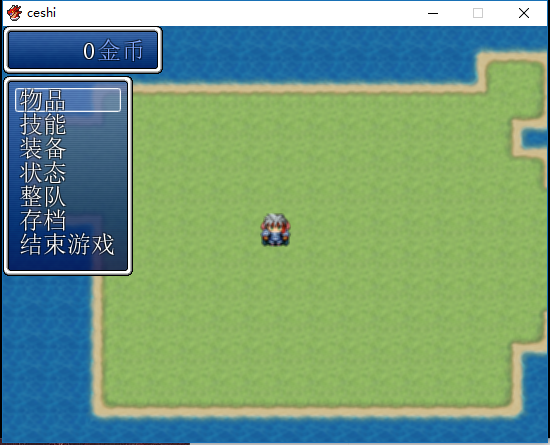

第一个我做出来的效果不是完全透明
有一种贴了一层毛玻璃的感觉。。。。

QQ蚊子湯

試試看這個ˊ
[pre lang="ruby"]class Scene_Menu < Scene_MenuBase
  def start
    super
    create_command_window
    create_gold_window
    create_status_window
  end
  def create_gold_window
    @gold_window = Window_Gold.new
  end
  def create_command_window
    @command_window = Window_MenuCommand.new
    @command_window.set_handler(:item,    method(:command_item))
    @command_window.set_handler(:skill,    method(:command_personal))
    @command_window.set_handler(:equip,    method(:command_personal))
    @command_window.set_handler(:status,    method(:command_personal))
    @command_window.set_handler(:formation,    method(:command_formation))
    @command_window.set_handler(:save,    method(:command_save))
    @command_window.set_handler(:game_end,    method(:command_game_end))

    @command_window.set_handler(:cancel,    method(:return_scene))
  end
  def create_status_window
    @status_window = Window_MenuStatus.new(160, 0)
    @status_window.visible = false
  end
  def command_personal
    on_personal_ok
  end
end
class Window_MenuCommand < Window_Command
  def initialize
    super(0, 47)
    self.opacity = 255 if SceneManager.scene_is?(Scene_Menu)
    select_last
  end
  def window_width
    return 160
  end
  def window_height
    return 192
  end
  def make_command_list
    add_command(Vocab::item,   :item,   main_commands_enabled)
    add_command(Vocab::skill,   :skill,   main_commands_enabled)
    add_command(Vocab::equip,   :equip,   main_commands_enabled)
    add_command(Vocab::status,   :status,   main_commands_enabled)
    add_command(Vocab::formation,   :formation,   false)
    add_command(Vocab::save,   :save,   save_enabled)
    add_command(Vocab::game_end,   :game_end)

  end
  def alignment
    return 0
  end
end
class Window_MenuStatus < Window_Selectable
  def initialize(x, y)
    super(x, y, window_width, window_height)
    @pending_index = -1
    self.opacity = 0 if SceneManager.scene_is?(Scene_Menu)
    refresh
  end
  def window_width
    return 384
  end
  def window_height
    return 416
  end
  def item_height
    return (height - standard_padding * 2) / 4
  end
  def draw_item(index)
    actor = $game_party.members[index]
    enabled = $game_party.battle_members.include?(actor)
    rect = item_rect(index)
    draw_item_background(index)
    draw_actor_face(actor, rect.x + 1, rect.y + 1, enabled)
    draw_actor_simple_status(actor, rect.x, rect.y)
  end
  def draw_actor_simple_status(actor, x, y)
    draw_actor_name(actor, x + 108, y + 12)
    draw_actor_level(actor, x + 108, y + 36)
    draw_actor_icons(actor, x + 108, y + 60)
    draw_actor_class(actor, x + 228, y + 12)
    draw_actor_hp(actor, x + 228, y + 36)
    draw_actor_mp(actor, x + 228, y + 60)
  end
  def draw_face(face_name, face_index, x, y, enabled = true)
    bitmap = Cache.face(face_name)
    rect = Rect.new(face_index % 4 * 96, face_index / 4 * 96, 96, 96)
    contents.blt(x, y, bitmap, rect, enabled ? 255 : translucent_alpha)
    bitmap.dispose
  end
  def draw_actor_name(actor, x, y, width = 112)
    change_color(hp_color(actor))
    draw_text(x, y, width, 24, actor.name)
  end
  def draw_actor_level(actor, x, y)
    change_color(system_color)
    draw_text(x, y, 32, line_height, Vocab::level_a)
    change_color(normal_color)
    draw_text(x + 56 - 24, y, 24, 24, actor.level, 2)
  end
  def draw_actor_icons(actor, x, y, width = 96)
    icons = (actor.state_icons + actor.buff_icons)[0, ((24/24)*width)/24]
    icons.each_with_index {|n, i| draw_icon(n, x + 24 * (i % (width / 24)), y + 24 * (i / (width / 24))) }
  end
  def draw_actor_class(actor, x, y, width = 112)
    change_color(normal_color)
    draw_text(x, y, width, 24, actor.class.name)
  end
  def draw_actor_hp(actor, x, y, width = 124)
    draw_gauge(x, y, width, actor.hp_rate, hp_gauge_color1, hp_gauge_color2)
    change_color(system_color)
    draw_text(x, y, 30, line_height, Vocab::hp_a)
    draw_current_and_max_values(x, y, width, actor.hp, actor.mhp,
    hp_color(actor), normal_color)
    end
  def draw_actor_mp(actor, x, y, width = 124)
    draw_gauge(x, y, width, actor.mp_rate, mp_gauge_color1, mp_gauge_color2)
    change_color(system_color)
    draw_text(x, y, 30, line_height, Vocab::mp_a)
    draw_current_and_max_values(x, y, width, actor.mp, actor.mmp,
    mp_color(actor), normal_color)
  end
end
class Window_MenuActor < Window_MenuStatus
  def initialize
    super(0, 0)
    self.visible = false
  end
  def window_height
    Graphics.height
  end
end
class Window_Gold < Window_Base
  def initialize
    super(0, 0, window_width, 48)
    self.opacity = 255 if SceneManager.scene_is?(Scene_Menu)
    refresh
  end
  def window_width
    return 160
  end
  def refresh
    contents.clear
    change_color(system_color)
    draw_text(4, 0, contents_width - 8, line_height, 'Gold')
    cx = text_size(currency_unit).width
    change_color(normal_color)
    draw_text(4, contents_height - line_height, contents.width - 8 - cx - 2, line_height, value, 2)
    change_color(system_color)
    draw_text(4, contents_height - line_height, contents.width - 8, line_height, currency_unit, 2)
  end
end
[/pre]

毛玻璃的現象可以用這段去除

[pre lang="ruby"]module SceneManager
def self.snapshot_for_background
    @background_bitmap.dispose if @background_bitmap
    @background_bitmap = Graphics.snap_to_bitmap
  end
  end[/pre]

buyanhai

QQ蚊子湯 发表于 2016-11-16 23:33
試試看這個ˊ
class Scene_Menu < Scene_MenuBase
  def start

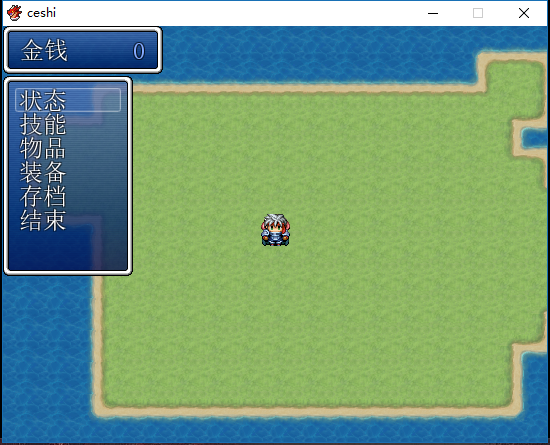

谢谢啦~~~  用你的方法问题已经解决了,之前自己有些问题理解错了,现在看明白了~

前面修改的Scene_Menu类应该是排版的一些问题吧？
我先自己试着排下，然后有问题再照你的改~{:2_280:}
