本帖最后由 M.Winderic. 于 2017-5-1 10:07 编辑
编辑器只将数据导出csv，
导入功能、RM地图的兼容性或者用在非RM作品，
请自己写RPG::Map之类的东西，
VA的全自动画笔还请自行实现（取半格等）
说人话就是：
使用本工具时，以下事情做得到：
- 使用键盘进行基本的地图绘制
- 使用多个图层、多个图块
- 将绘制的地图以“纯文本”形式导出
使用本工具时，以下事情请自己找程序猿实现：
- RMVA的全自动画笔功能
- 图块位置微调
- 使用鼠标进行基本的地图绘制
- 导入“纯文本”形式或者RMXP/VX/VA格式的地图
使用本工具时，以下事情做不到：
兼容 RM 新三作的地图编辑器【大雾】
用法与 vi/vim 类似
懒人包下载：
ebrgss_tilesets_editor.zip
(3.62 MB, 下载次数: 132)
源码：
[fold=toolkit.rb]
[pre lang="ruby"]#!/usr/bin/env ruby
#coding:utf-8
#======================================================================#
# [LibRGSSS] Ruby Game Slight Scripting System #
#----------------------------------------------------------------------#
# This project is licensed under the #
# Creative Commons Attribution-ShareAlike 4.0 International License. #
#======================================================================#
module RGSSS
module CLanguage
{ :cchar=>'C', :clong=>'L', :clonglong=>'Q', :cint=>'I', :cptr=>'J' }.each{|k, v|
CLanguage.const_set k.to_s.capitalize, [0].pack(v).freeze
CLanguage.const_set "P#{ k }", ( l = proc { CLanguage.const_get(k.to_s.capitalize).dup } )
define_method(k, &l)
}
define_method(:cmem){|size| Array.new(size, 0).pack('C*') }
end
module LazyWin32API
extend Module.new {
KEYS = { 'b' => 'I', 'v' => 'V' }
define_method(:apis) { @apis || @apis = Hash.new{|h, k| h[k] = {} } }
define_method(:set) {|d, f, i, o| apis[d][f] = Win32API.new(d, f, i, o) }
define_method(:gsub_api) {|*a| a.map{|w| KEYS.each{|k, v| w.gsub! k, v}; w } }
define_method(:phrase_args){|a|
return 'V' if a.empty?
return a.map {|obj|
case obj
when ::Integer; 'i';
when ::String; 'p';
end
}.join
}
def method_missing(meth, *a, &blk)
begin
dll, func, i, o = meth.to_s.split('_')
i, o = gsub_api(i || phrase_args(a), o || 'i')
c = apis[dll][func] || set(dll, func, i, o)
r = c.call(*a)
return r
rescue
super
end
end
}
hloadtime = Time.new
# A Special thanks to ZiSu@66RPG thread-id: 157287
HwndSelf = LazyWin32API.user33_GetHWND
# A Special thanks to Artoria@66RPG thread-id: 344608, post-id: 2397031
if HwndSelf == 0
msg, r, pm, ac = "\0"*24, 0,
Win32API.new('user32', 'PeekMessage','pLLLL','L'),
Win32API.new('user32', 'GetAncestor', 'LL', 'L')
HwndTop = while true do
break r if pm.call(msg, 0, 0, 0, 0) != 0 and
((r = ac.call(msg.unpack('L').first, 3))!=0)
if Time.new - hloadtime > 1
hloadtime = Time.new
Graphics.update
end
end
end
HWnd = HwndSelf != 0 ? HwndSelf : HwndTop
end
ConsoleTest = <<__ConsoleTest__
module LazyConsole
# You may want a better console from the link below: (Artoria@66RPG thread-id: 343335)
# https://github.com/Artoria/RMSFX/blob/master/gameconsole.rb
LazyWin32API.kernel32_AllocConsole
@stdin = File.open("CONIN$", "r")
@stdout = File.open("CONOUT$", "w")
@stderr = File.open("CONOUT$", "w")
LazyWin32API.user32_SwitchToThisWindow LazyWin32API::HWnd, 1
define_method(:print) {|*a| a.each{|w| @stdout.write w; @stdout.flush } }
module_function :print
module ::Kernel
define_method(:p) {|*a| RGSSS::LazyConsole.print a.map{|w| w.inspect + "\n" }.join }
define_method(:print) {|*a| RGSSS::LazyConsole.print *a }
define_method(:printf){|*a| RGSSS::LazyConsole.print sprintf *a }
end
END {
[@stdin, @stdout].each{|w| w.close }
LazyWin32API.kernel32_FreeConsole
}
end
__ConsoleTest__
module Inspector0x
Pointer = '0x%07x'.freeze
class Inspector0xPtr < String; def inspect; self; end; end
def printf0x(str, lsb=false)
r = []
s = str.unpack('C*').each_with_index.map{|c|
r.push 32 <= c && c <= 126 ? [32, c].pack('C*') : [32, 32].pack('C*')
next "%02x" % c
}
a = proc{|t, b| (0..3).map{|i| "#{ t[4*b+i] }" }.join }
l = proc{|t, b| (0..3).map{|i| a[ t,4*b+i] }.join ' ' }
print (0...((r.size+31)/32)).map{|j|
l[r, 2*j] + ' ' + l[r, 2*j+1] + "\n" +
l[s, 2*j] + ' ' + l[s, 2*j+1] + "\n"
}.join
end
def sprintf0x(obj)
obj = (obj.unpack('J')[0]||0) if obj.is_a? String
Inspector0xPtr.new(sprintf(Pointer, obj))
end
def inspector0x(klass, obj_id, inner_dom)
z = inner_dom.map{|k, v| " #{ k }=#{ v.inspect }"}.join(',')
"#<#{ klass }:#{ sprintf0x obj_id }#{ z }>"
end
end
class ::Bitmap
include Inspector0x
define_method(:inspect){
inspector0x self.class, object_id, { :width => self.width, :height => self.height }
}
end
module LazyUI
extend CLanguage
extend Module.new {
attr_reader :ty, :by
include CLanguage
define_method(:client_rect){
rect = clong * 4
LazyWin32API.user32_GetClientRect(LazyWin32API::HWnd, rect)
return *(rect.unpack('llll'))
}
define_method(:window_width) { client_rect[2] }
define_method(:window_height){ client_rect[3] }
def arrange(objs)
@ty = 0; @by = LazyUI.window_height
objs.each {|w|
w.init_y = w.y = @ty
unless w.type.include? :float
unless w.type.include? :bottom
@ty += w.bitmap.height
end
if w.type.include? :bottom
@by -= w.bitmap.height
w.init_y = w.y = @by
end
end
}
end
def need_resize?
@ow = @ow || 0; @oh = @oh || 0
@w = window_width; @h = window_height
r = (@ow != @w) || (@oh != @h)
if r; @ow = @w; @oh = @h; end
return r
end
def screen(*objs, &update_block)
i = true
arrange objs
while i
if need_resize?
arrange objs
objs.each{|w| w.auto_resize(@w, @h) }
end
::Input.update
objs.each{|w| w.respond }
i = update_block[*objs]
::Graphics.update
end
end
def mouse_pos
api_mouse = cmem(4*2)
LazyWin32API.user32_GetCursorPos api_mouse
LazyWin32API.user32_ScreenToClient LazyWin32API::HWnd, api_mouse
return api_mouse.unpack('ii')
end
def key_state(code)
LazyWin32API.user32_GetKeyState(code) & 0xFF
end
def fetch_letter
(0x30..0x5A).each{|k| return [k].pack('C') if key? k }
return false
end
def key?(code)
z = key_state(code)
if z < 128; Key_PLock[code] = 0; Key_PLoop[code] = 0; return false; end
if Key_PLoop[code] > 36; return true; end
if Key_PLock[code] > 0; Key_PLoop[code] += 1; return false; end
return Key_PLock[code] = Key_Lock
end
def update
Key_PLock.each{|k, v| Key_PLock[k] -= 1 unless v <= 0 }
end
}
class UniversalUI < ::Sprite
attr_accessor :init_y, :type
def initialize(type, *a, &b)
@type, @respond_block = type, b
super(*a)
end
define_method(:respond){|*a|self.instance_eval(*a, &@respond_block) if @respond_block }
define_method(:auto_resize){|w, h|}
end
class Window < UniversalUI
States = [:hover, :down]
attr_accessor :text, :w, :h
def cfg(type)
c = DefaultWindowBorder
c = InfoWindowBorder if type.include? :info
c = StatusWindowBorder if type.include? :status
ff = DefaultFontFamily
ff = MonoFontFamily if type.include? :mono# or type.include? :info
fs = DefaultFontSizeRegular
fs = DefaultFontSizeSmall if type.include? :status
fs = DefaultFontSizeTitle if type.include? :title
fs = DefaultFontSizeInfo if type.include? :info
fc = DefaultFontColor
fc = DarkFontColor if type.include? :dark
fc = ActiveFontColor if type.include? :hover or type.include? :down
bg = DefaultBackGroundColor
bg = DarkBackGroundColor if type.include? :dark
bg = HoverBackGroundColor if type.include? :hover
bg = DownBackGroundColor if type.include? :down
return c, ff, fs, fc, bg
end
def initialize(*argv, &respond_block)
@text, @type, @w, @h, *args = argv
c, ff, fs, fc, bg = cfg @type
@auto_resize = true unless @w and @h
@w = @w || LazyUI.window_width
@h = @h || ( c + fs ) if @type.include? :info
@h = @h || ( 2 * c + fs )
super(@type, *args, &respond_block)
self.bitmap = Bitmap.new @w, @h
self.z = DefaultWindowZIndex
self.refresh
end
def mouse_in_self?
a, b = LazyUI.mouse_pos
return( a >= self.x and b >= self.y and
a < self.x + self.w and b < self.y + self.h )
end
define_method(:do_normal){ States.each{|w| @type.delete w } }
define_method(:do_down) { do_normal; @type.push :down }
define_method(:do_hover) { do_normal; @type.push :hover }
def refresh
c, ff, fs, fc, bg = cfg @type
self.bitmap.clear
self.bitmap.font.name = ff
self.bitmap.font.size = fs
self.bitmap.font.color = fc
r = self.bitmap.text_size(@text)
self.bitmap.fill_rect 0, 0, @w, @h, bg
x, y = c, c
y = c + ( @h - 2 * c - r.height ) / 2
self.bitmap.draw_text x, y, r.width, r.height, @text
end
define_method(:auto_resize){|w, h|
if @auto_resize
@w = w
self.bitmap.dispose
self.bitmap = Bitmap.new @w, @h
self.refresh
end
}
end
class Picture < UniversalUI
def initialize(bmp, *args, &respond_block)
@type = type
super(*args, &respond_block)
case bmp
when ::Bitmap
self.bitmap = bmp
when ::String
self.bitmap = ::Bitmap.new bmp
when nil
self.bitmap = ::Bitmap.new 8, 8
end
end
end
class FixHeight < UniversalUI
attr_reader :init
def initialize(*a, &b)
@init = false
super(*a, &b)
end
def respond
auto_resize LazyUI.window_width, 0 unless @init
super
end
end
class VerticalBar < FixHeight
def initialize(x, w, color, *a, &b)
@w, @color = w, color
super([:float], *a, &b)
self.x = x
end
def auto_resize(w_, h_)
h = LazyUI.by - LazyUI.ty
w = @w
self.bitmap = Bitmap.new(w, h)
self.bitmap.fill_rect(0, 0, w, h, @color)
@init = true
end
end
class CanvasBack < FixHeight
W = Color.new 255, 255, 255
B = Color.new 204, 204, 204
Z = 8
def initialize
super([:float])
self.z = -1
end
def auto_resize(w, h_)
h = LazyUI.by - LazyUI.ty
self.bitmap = Bitmap.new(w, h)
c = false
(0..(w + 7)/8).each{|x|
d = c = !c
(0..(h + 7)/8).each{|y|
self.bitmap.fill_rect(x * 8, y * 8, 8, 8, (d = !d) ? W : B)
}
}
@init = true
end
end
class CanvasCover < FixHeight
B = Color.new 192, 192, 192, 192
def initialize(&b)
self.instance_eval(&b)
super([:float])
end
def auto_resize(w, h_)
h = LazyUI.by - LazyUI.ty
self.bitmap = Bitmap.new(w, h)
self.bitmap.fill_rect 0, 0, w, h, B
@init = true
end
def respond
auto_resize LazyUI.window_width, 0 unless @init
super
end
end
end
module LazyUI
Key_Lock = 24
Key_PLock = Hash.new { |h, k| h[k] = 0 }
Key_PLoop = Hash.new { |h, k| h[k] = 0 }
DefaultBackGroundColor = Color.new(128, 128, 128, 128)
DefaultBackGroundColorZ = Color.new(128, 128, 128, 255)
DarkBackGroundColor = Color.new( 32, 32, 32, 128)
DarkBackGroundColorZ = Color.new( 32, 32, 32, 255)
HoverBackGroundColor = Color.new(255, 255, 255, 200)
DownBackGroundColor = Color.new(255, 255, 255, 128)
DefaultWindowZIndex = 64
unless window_width < 1280 && window_height < 720
StatusWindowBorder = 8
DefaultWindowBorder = 4
InfoWindowBorder = 2
DefaultFontSizeInfo = 16
DefaultFontSizeSmall = 16
DefaultFontSizeRegular = 24
DefaultFontSizeTitle = 36
else
StatusWindowBorder = 0
DefaultWindowBorder = 0
InfoWindowBorder = 0
DefaultFontSizeInfo = 8
DefaultFontSizeSmall = 12
DefaultFontSizeRegular = 16
DefaultFontSizeTitle = 24
end
ChineseFontFamily = [
'Source Han Sans SC Light',
'DengXian Light',
'SimSun'
]
DefaultFontFamily = [
'Calibri Light',
'Arial',
'Helvetica'
]
MonoFontFamily = [
'Source Code Pro',
'Lucida Console',
'Consolas',
'Courier New'
]
DefaultFontColor = Color.new(255, 255, 255, 255)
DarkFontColor = Color.new(192, 192, 192, 255)
ActiveFontColor = Color.new( 0, 0, 0, 255)
EMPTYBMP = Bitmap.new 8, 8
def self.mkc(*i, &b)
mkb = Bitmap.new 32, 32
mkb.fill_rect 0, 0, 32, 32, Color.new(*i)
mkb.fill_rect 2, 2, 28, 28, Color.new(0, 0, 0, 0)
b.call(mkb) if b
return mkb
end
MkC = proc{|b|
b.fill_rect 4, 0, 24, 2, Color.new(0, 0, 0, 0)
b.fill_rect 0, 4, 2, 24, Color.new(0, 0, 0, 0)
b.fill_rect 30, 4, 2, 24, Color.new(0, 0, 0, 0)
b.fill_rect 4, 30, 24, 2, Color.new(0, 0, 0, 0)
}
mKcW = (0..32).map{|i|mkc 8*i, 8*i, 8*i, 8*i}
mKCW = (0..32).map{|i|mkc 8*i, 8*i, 8*i, 8*i, &MkC}
mKcB = (0..32).map{|i|mkc 255-8*i, 255-8*i, 255-8*i, 8*i}
mKCB = (0..32).map{|i|mkc 255-8*i, 255-8*i, 255-8*i, 8*i, &MkC}
mkcr = (0..32).map{|i|mkc 8*i, 0, 0, 8*i}
mKcr = (0..32).map{|i|mkc 8*i, 0, 0, 8*i, &MkC}
mkcg = (0..32).map{|i|mkc 0, 8*i, 0, 8*i}
mKcg = (0..32).map{|i|mkc 0, 8*i, 0, 8*i, &MkC}
mkcb = (0..32).map{|i|mkc 0, 0, 8*i, 8*i}
mKcb = (0..32).map{|i|mkc 0, 0, 8*i, 8*i, &MkC}
mkcc = (0..32).map{|i|mkc 0, 8*i, 8*i, 8*i}
mKcc = (0..32).map{|i|mkc 0, 8*i, 8*i, 8*i, &MkC}
mkcm = (0..32).map{|i|mkc 8*i, 0, 8*i, 8*i}
mKcm = (0..32).map{|i|mkc 8*i, 0, 8*i, 8*i, &MkC}
mkcy = (0..32).map{|i|mkc 8*i, 8*i, 0, 8*i}
mKcy = (0..32).map{|i|mkc 8*i, 8*i, 0, 8*i, &MkC}
mkcW = (0..95).map{|i|mKcW[i/3]}
mkcB = (0..95).map{|i|mKcB[i/3]}
mkCW = (0..95).map{|i|mKCW[i/3]}
mkCB = (0..95).map{|i|mKCB[i/3]}
BlinkCB = mkCW + mkCW.reverse + mkCB + mkCB.reverse
BlinkWB = mkcW + mkcW.reverse + mkcB + mkcB.reverse
BlinkAll = mkcr + mkcr.reverse + mkcg + mkcg.reverse + mkcb + mkcb.reverse +
mkcm + mkcm.reverse + mkcy + mkcy.reverse + mkcc + mkcc.reverse
BlinkCA = mKcr + mKcr.reverse + mKcg + mKcg.reverse + mKcb + mKcb.reverse +
mKcm + mKcm.reverse + mKcy + mKcy.reverse + mKcc + mKcc.reverse
end
module Kboard
#==========================================================================
Mouse_L = 0x01 # left mouse button
Mouse_R = 0x02 # right mouse button
Mouse_M = 0x04 # middle mouse button
Mouse_4 = 0x05 # 4th mouse button
Mouse_5 = 0x06 # 5th mouse button
#--------------------------------------------------------------------------
Key_BACK = 0x08 # BACKSPACE key
Key_TAB = 0x09 # TAB key
Key_RETURN = 0x0D # ENTER key
Key_SHIFT = 0x10 # SHIFT key
Key_CTLR = 0x11 # CTLR key
Key_ALT = 0x12 # ALT key
Key_PAUSE = 0x13 # PAUSE key
Key_CAPITAL = 0x14 # CAPS LOCK key
Key_ESCAPE = 0x1B # ESC key
Key_SPACE = 0x20 # SPACEBAR
Key_PRIOR = 0x21 # PAGE UP key
Key_NEXT = 0x22 # PAGE DOWN key
Key_END = 0x23 # END key
Key_HOME = 0x24 # HOME key
Key_LEFT = 0x25 # LEFT ARROW key
Key_UP = 0x26 # UP ARROW key
Key_RIGHT = 0x27 # RIGHT ARROW key
Key_DOWN = 0x28 # DOWN ARROW key
Key_SELECT = 0x29 # SELECT key
Key_PRINT = 0x2A # PRINT key
Key_BB = 0x2B # SELECT key
Key_SNAPSHOT = 0x2C # PRINT SCREEN key
Key_INSERT = 0x2D # INS key
Key_DELETE = 0x2E # DEL key
#--------------------------------------------------------------------------
Key_0 = 0x30 # 0 key
Key_1 = 0x31 # 1 key
Key_2 = 0x32 # 2 key
Key_3 = 0x33 # 3 key
Key_4 = 0x34 # 4 key
Key_5 = 0x35 # 5 key
Key_6 = 0x36 # 6 key
Key_7 = 0x37 # 7 key
Key_8 = 0x38 # 8 key
Key_9 = 0x39 # 9 key
#--------------------------------------------------------------------------
Key_A = 0x41 # A key
Key_B = 0x42 # B key
Key_C = 0x43 # C key
Key_D = 0x44 # D key
Key_E = 0x45 # E key
Key_F = 0x46 # F key
Key_G = 0x47 # G key
Key_H = 0x48 # H key
Key_I = 0x49 # I key
Key_J = 0x4A # J key
Key_K = 0x4B # K key
Key_L = 0x4C # L key
Key_M = 0x4D # M key
Key_N = 0x4E # N key
Key_O = 0x4F # O key
Key_P = 0x50 # P key
Key_Q = 0x51 # Q key
Key_R = 0x52 # R key
Key_S = 0x53 # S key
Key_T = 0x54 # T key
Key_U = 0x55 # U key
Key_V = 0x56 # V key
Key_W = 0x57 # W key
Key_X = 0x58 # X key
Key_Y = 0x59 # Y key
Key_Z = 0x5A # Z key
#--------------------------------------------------------------------------
Key_LWIN = 0x5B # Left Windows key (Microsoft Natural keyboard)
Key_RWIN = 0x5C # Right Windows key (Natural keyboard)
Key_APPS = 0x5D # Applications key (Natural keyboard)
#--------------------------------------------------------------------------
Key_NUMPAD0 = 0x60 # Numeric keypad 0 key
Key_NUMPAD1 = 0x61 # Numeric keypad 1 key
Key_NUMPAD2 = 0x62 # Numeric keypad 2 key
Key_NUMPAD3 = 0x63 # Numeric keypad 3 key
Key_NUMPAD4 = 0x64 # Numeric keypad 4 key
Key_NUMPAD5 = 0x65 # Numeric keypad 5 key
Key_NUMPAD6 = 0x66 # Numeric keypad 6 key
Key_NUMPAD7 = 0x67 # Numeric keypad 7 key
Key_NUMPAD8 = 0x68 # Numeric keypad 8 key
Key_NUMPAD9 = 0x69 # Numeric keypad 9 key
Key_MULTIPLY = 0x6A # Multiply key (*)
Key_ADD = 0x6B # Add key (+)
Key_SEPARATOR = 0x6C # Separator key
Key_SUBTRACT = 0x6D # Subtract key (-)
Key_DECIMAL = 0x6E # Decimal key
Key_DIVIDE = 0x6F # Divide key (/)
#--------------------------------------------------------------------------
Key_F1 = 0x70 # F1 key
Key_F2 = 0x71 # F2 key
Key_F3 = 0x72 # F3 key
Key_F4 = 0x73 # F4 key
Key_F5 = 0x74 # F5 key
Key_F6 = 0x75 # F6 key
Key_F7 = 0x76 # F7 key
Key_F8 = 0x77 # F8 key
Key_F9 = 0x78 # F9 key
Key_F10 = 0x79 # F10 key
Key_F11 = 0x7A # F11 key
Key_F12 = 0x7B # F12 key
#--------------------------------------------------------------------------
Key_NUMLOCK = 0x90 # NUM LOCK key
Key_SCROLL = 0x91 # SCROLL LOCK key
#--------------------------------------------------------------------------
Key_LSHIFT = 0xA0 # Left SHIFT key
Key_RSHIFT = 0xA1 # Right SHIFT key
Key_LCONTROL = 0xA2 # Left CONTROL key
Key_RCONTROL = 0xA3 # Right CONTROL key
Key_L_ALT = 0xA4 # Left ALT key
Key_R_ALT = 0xA5 # Right ALT key
#--------------------------------------------------------------------------
Key_SEP = 0xBC # , key
Key_DASH = 0xBD # - key
Key_DOTT = 0xBE # . Key
end
end
#======================================================================#
# CC-BY-SA #
#======================================================================#
[/pre]
[/fold]
[fold=map_editor.rb]
[pre lang="ruby"]#!/usr/bin/env ruby
#coding:utf-8
#======================================================================#
# [LibRGSSS] Ruby Game Slight Scripting System #
#----------------------------------------------------------------------#
# This project is licensed under the #
# Creative Commons Attribution-ShareAlike 4.0 International License. #
#======================================================================#
module RGSSSEditor
def kload(pth, lib='rgsss_editor', base='./lib')
eval File.read "#{ base }/#{ lib }/#{ pth }"
end
module_function :kload
kload 'ebrgss_compatible_toolkit/toolkit.rb', 'rgsss/extension'
include RGSSS
MAX_LAYER = LazyUI::DefaultWindowZIndex
SAVE_FILE = './output/map.csv'

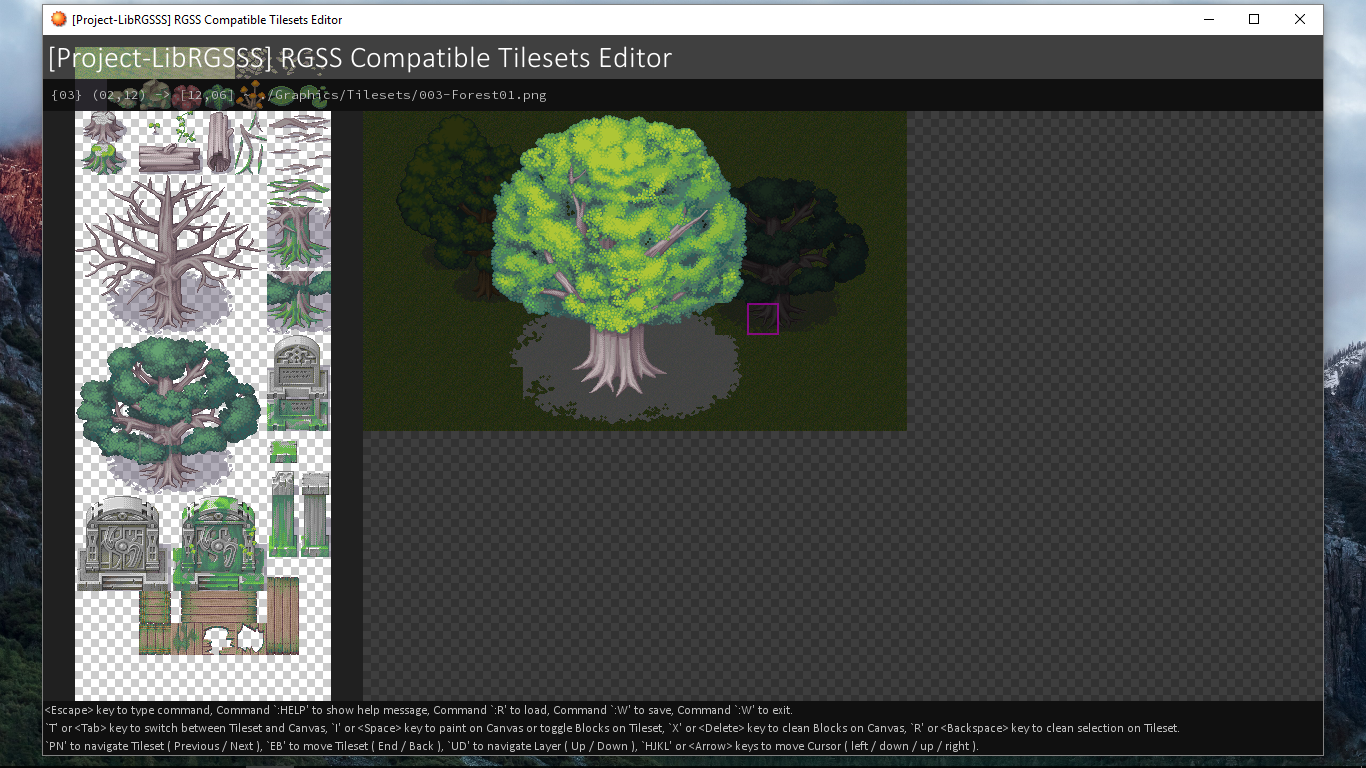

Title = '[Project-LibRGSSS] RGSS Compatible Tilesets Editor'
HMsg1 = [
%q{`PN' to navigate Tileset ( Previous / Next )},
%q{`EB' to move Tileset ( End / Back )},
%q{`UD' to navigate Layer ( Up / Down )},
%q{`HJKL' or <Arrow> keys to move Cursor ( left / down / up / right )},
]
HMsg2 = [
%q{`T' or <Tab> key to switch between Tileset and Canvas},
%q{`I' or <Space> key to paint on Canvas or toggle Blocks on Tileset},
%q{`X' or <Delete> key to clean Blocks on Canvas},
%q{`R' or <Backspace> key to clean selection on Tileset},
]
HMsg3 = [
%q{<Escape> key to type command},
%q{Command `:HELP' to show help message},
%q{Command `:R' to load},
%q{Command `:W' to save},
%q{Command `:W' to exit},
]
%q{<Enter> key to edit Block ( Unsupported yet, finish it yourself please)}
if LazyUI::window_width < 1280 || LazyUI::window_height < 720
print "HELP MESSAGE: \n\n" + ( HMsg1 + HMsg2 + HMsg3 ).join(". \n") + ".\n\n" + '-' * 80 +
"\n\nTo avoid this message, keep your window NOT LESS THAN 1280x720 please.\n"
end
BMPs = {}
loadtime = Time.new
(
Dir['./Graphics/Tilesets/*' ] +
[]#Dir['./Graphics/Autotiles/*']
).each_with_index { |e, idx|
if Time.new - loadtime > 1
loadtime = Time.new
Graphics.update
end
loadbmp = Bitmap.new e
BMPs[e] = [loadbmp, loadbmp.width / 32, loadbmp.height / 32]
}
CursorPassive = LazyUI::BlinkWB
CursorActive = LazyUI::BlinkAll
MaxCanvasX = proc{ [ (LazyUI::window_width - $app[:mapx]) / 32 , 8].max }
MaxCanvasY = proc{ [ (LazyUI.by - LazyUI.ty) / 32 , 8].max }
canvasMapAll = proc{|b|
(0..MaxCanvasX[]).each{|mx|(0..MaxCanvasY[]).each{|my|
dx = $app[:cx] + (mx - $app[:dx])
dy = $app[:cy] + $app[:ty] + (my - $app[:dy])
b.call mx, my, dx, dy
}}
}
$app = {
:tid => 0,
:cid => 0,
:list => BMPs.to_a.sort,
:bmps => BMPs.to_a.sort.collect{|k, (w, *_)| w },
:posx => 0,
:posy => 0,
:mapx => 0,
:mapy => 0,
:cx => 0,
:cy => 0,
:dx => 0,
:dy => 0,
:ty => 0,
:active => 0,
:layer => 0,
:cover => false,
:dst => Hash.new{|h0,k0|h0[k0]=Hash.new{|h1,k1|nil}},
:select => Hash.new{|h0,k0|h0[k0]=Hash.new{|h1,k1|nil}},
:canvas => Hash.new{|h0,k0|h0[k0]=Hash.new{|h1,k1|h1[k1]=Hash.new{|h2,k2|nil}}}
}
class ECOMap < LazyUI::UniversalUI
class MapPoint < Sprite
attr_accessor :data
def initialize(dx, dy, map, *a)
@dx, @dy, @map = dx, dy, map
super(*a)
self.bitmap = ::Bitmap.new 32, 32
reposition
end
def reposition
self.x = @dx * 32 + @map.x
self.y = @dy * 32 + @map.y
end
end
def initialize(map, src, x, *a, &b)
@map, @src = map, src
super(*a, &b)
self.bitmap = ::Bitmap.new 8, 8
self.x = x
self.z = MAX_LAYER
@init = false
end
def refresh
if Chkapp[$app] != @lstapp
auto_resize RGSSSEditor::LazyUI.window_width, 0
@lstapp = Chkapp[$app]
end
auto_resize RGSSSEditor::LazyUI.window_width, 0 unless @init
@map.each{|kz, vz| vz.each{|kx, vx| vx.each{|ky, point|
point.reposition
point.z = kz
point.z = MAX_LAYER + 1 if $app[:layer] == kz
}}}
end
def draw(dx, dy, si, sx, sy, dz)
c = @map[$app[:layer]][dx][dy] ||
( @map[$app[:layer]][dx][dy] ||= MapPoint.new(dx, dy, self) )
c.bitmap.clear
c.bitmap.blt 0, 0, @src[si], Rect.new(sx * 32, sy * 32, 32, 32)
c.data = [dz, dx, dy, $app[:list][$app[:tid]][0], sx, sy]
end
def clean(dx, dy, si, sx, sy, sz)
c = @map[$app[:layer]][dx][dy] ||
( @map[$app[:layer]][dx][dy] ||= MapPoint.new(dx, dy, self) )
c.bitmap.clear
c.data = nil
end
def auto_resize(w, h_)
h = RGSSSEditor::LazyUI.by - RGSSSEditor::LazyUI.ty
self.bitmap = Bitmap.new w - self.x, h
self.bitmap.fill_rect 0, 0, w - self.x, h, Color.new(0, 0, 0, 192)
@init = true
end
end
class SelMap < LazyUI::UniversalUI
class SelPoint < Sprite
def initialize(dx, dy, map, *a)
@dx, @dy, @map = dx, dy, map
super(*a)
self.bitmap = ::Bitmap.new 32, 32
self.visible = false
reposition
end
def reposition
self.x = @dx * 32 + @map.x
self.y = @dy * 32 + @map.y
self.z = MAX_LAYER + 2
end
end
def initialize(map, *a, &b)
super([:float], *a, &b)
@map = map
self.bitmap = ::Bitmap.new 8, 8
end
def toggle(x, y)
@map[x][y] = @map[x][y] || SelPoint.new(x, y, self)
@map[x][y].visible = !@map[x][y].visible
end
end
b = proc {|i, a, x| (i + x) % a }
ab = proc {|i, a, x| b[i, a.size, x] }
Chkapp = proc{|a|next a[:layer], a[:cx], a[:cy] + a[:ty], a[:dx], a[:dy], a[:list][a[:tid]][0]}
spapp = proc{|app| sprintf '{%02d} (%02d,%02d) -> [%02d,%02d] ~ %s', *Chkapp[app] }
man = proc{|str|
str.gsub('/\A','').gsub('\Z/', '').gsub('|', ' | ').gsub('\A','').gsub('\Z','')
}
AppLoad = proc{|f|
}
AppSave = proc{|f|
result = []
$app[:canvas].each{|kz, vz| vz.each{|kx, vx| vx.each{|ky, point|
result.push point.data.map{|e| e.inspect }.join(', ') if point and point.data
}}}
string = result.join("\n") + "\n"
File.open(f, "w"){|file| file.write string }
}
CMDSTR = %q{# HELP MESSAGE:
case cmd
when /\AH\Z|\AHELP\Z/
print man[CMDSTR]
result = 'CMD HELP'
when /\AR\Z|\AREAD\Z/
AppLoad[SAVE_FILE]
result = sprintf 'Successfully READ from %s', SAVE_FILE
when /\AW\Z|\AWRITE\Z/
AppSave[SAVE_FILE]
result = sprintf 'Successfully WROTE to %s', SAVE_FILE
when /\AQ\Z|\AQUIT\Z|\AEXIT\Z|\AEXITWITHOUTSAVING\Z/
$exit = true
result = 'CMD EXIT without saving'
when /\AX\Z|\AZZ\Z|\AWQ\Z|\AFINISH\Z|\ASAVEANDEXIT\Z/
appSave[SAVE_FILE]
$exit = true
result = 'CMD SAVE and exit'
when ''
result = false
else
result = 'Command Error'
end
}
cmdproc = proc {|update_block|
cmd = ''
timer = Time.new
cmdio = true
ioptr = true
result = nil
while true
cmd = '' if LazyUI.key? Kboard::Key_ESCAPE
cmd.chop! if LazyUI.key? Kboard::Key_BACK
break if LazyUI.key? Kboard::Key_RETURN
if l = LazyUI.fetch_letter
cmd += l
end
iot = Time.new
if iot - timer >= 1
timer = iot
ioptr = !ioptr
end
update_block.call cmd, ioptr if update_block
LazyUI.update
Graphics.update
end
eval CMDSTR
next result
}
$exit = false
Graphics.frame_rate = 60
LazyUI.screen(
LazyUI::Window.new(Title, [:title]),
LazyUI::Window.new('', [:dark, :mono, :status]){
cmdexit = nil
if LazyUI.key? Kboard::Key_ESCAPE
$app[:cover].z = 64
cmdexit = cmdproc[proc{|cmd, ioptr| @text = ":#{ cmd }#{ ioptr ? '_' : '' }"; refresh }]
end
$app[:cover].z = -2
$app[:tid] = ab[$app[:tid], $app[:list], -1] if LazyUI.key? Kboard::Key_P
$app[:tid] = ab[$app[:tid], $app[:list], 1] if LazyUI.key? Kboard::Key_N
@text = spapp[$app]
@text = cmdexit if cmdexit
if Chkapp[$app] != @lstapp or cmdexit != nil
refresh
@lstapp = Chkapp[$app]
end
},
LazyUI::VerticalBar.new(0, 32, LazyUI::DarkBackGroundColorZ),
LazyUI::Picture.new(nil, [:float]){
self.bitmap = $app[:list][$app[:tid]][1][0]
$app[:tilex] = self.bitmap.width + 32
sp = 32 * ( $app[:list][$app[:tid]][1][2] - 1 )
self.oy = [ self.oy + 32, sp].min if LazyUI.key? Kboard::Key_E
self.oy = [ self.oy - 32, 0].max if LazyUI.key? Kboard::Key_B
$app[:ty] = self.oy / 32
$app[:posx] = self.x = 32; $app[:posy] = self.y
},
LazyUI::Picture.new(CursorPassive[$app[:cid]], [:float]){
self.bitmap = ($app[:active] == 0) ? CursorActive[$app[:cid]] : CursorPassive[$app[:cid]]
self.x = $app[:posx] + 32 * $app[:cx]
self.y = $app[:posy] + 32 * $app[:cy]
self.z = MAX_LAYER + 2
t = $app[:list][$app[:tid]][1]
x0 = [LazyUI::window_width / 32, t[1] ].min
y0 = [MaxCanvasY[], t[2] - $app[:ty]].min
$app[:cy] = [[0, $app[:cy]].max, t[2] - $app[:ty] - 1].min
next unless $app[:active] == 0
$app[:cx] = b[$app[:cx], x0, -1] if LazyUI.key?(Kboard::Key_H) or
LazyUI.key?(Kboard::Key_LEFT)
$app[:cy] = b[$app[:cy], y0, 1] if LazyUI.key?(Kboard::Key_J) or
LazyUI.key?(Kboard::Key_DOWN)
$app[:cy] = b[$app[:cy], y0, -1] if LazyUI.key?(Kboard::Key_K) or
LazyUI.key?(Kboard::Key_UP)
$app[:cx] = b[$app[:cx], x0, 1] if LazyUI.key?(Kboard::Key_L) or
LazyUI.key?(Kboard::Key_RIGHT)
},
SelMap.new($app[:select]){
self.x = $app[:posx]; self.y = $app[:posy] - 32 * $app[:ty]
if $app[:active] == 0 and LazyUI.key? Kboard::Key_SPACE
toggle $app[:cx], $app[:cy] + $app[:ty]
end
@map.each{|kx, vx| vx.each{|ky, point|
z = ($app[:active] == 0) ? LazyUI::BlinkCA : LazyUI::BlinkCB
point.bitmap = z[$app[:cid]]
point.reposition
}}
},
LazyUI::VerticalBar.new(0, 32, LazyUI::DarkBackGroundColorZ){ self.x = $app[:tilex] },
ECOMap.new($app[:canvas], $app[:bmps], 256 + 32 * 2, [:float]){
if $app[:active] == 1 and LazyUI.key?(Kboard::Key_I) or LazyUI.key?(Kboard::Key_SPACE)
sf = false
canvasMapAll[proc{|mx, my, dx, dy|
s = $app[:select][dx][dy]
if s and s.visible
draw mx, my, $app[:tid], dx, dy, $app[:layer]
sf = true
end
}]
unless sf
draw $app[:dx], $app[:dy], $app[:tid], $app[:cx], $app[:cy] + $app[:ty], $app[:layer]
end
end
if $app[:active] == 1 and LazyUI.key?(Kboard::Key_X) or LazyUI.key?(Kboard::Key_DELETE)
sf = false
canvasMapAll[proc{|mx, my, dx, dy|
s = $app[:select][dx][dy]
if s and s.visible
clean mx, my, $app[:tid], dx, dy, $app[:layer]
sf = true
end
}]
unless sf
clean $app[:dx], $app[:dy], $app[:tid], $app[:cx], $app[:cy] + $app[:ty], $app[:layer]
end
end
$app[:layer] = [$app[:layer] + 1, MAX_LAYER].min if LazyUI.key?(Kboard::Key_U)
$app[:layer] = [$app[:layer] - 1, 0].max if LazyUI.key?(Kboard::Key_D)
$app[:mapx] = self.x = 32 + $app[:tilex]; $app[:mapy] = self.y
refresh
},
LazyUI::Picture.new(CursorPassive[$app[:cid]], [:float]){
self.bitmap = ($app[:active] == 1) ? CursorActive[$app[:cid]] : CursorPassive[$app[:cid]]
self.x = $app[:mapx] + 32 * $app[:dx]
self.y = $app[:mapy] + 32 * $app[:dy]
self.z = MAX_LAYER + 2
next unless $app[:active] == 1
$app[:dx] = b[$app[:dx], MaxCanvasX[], -1] if LazyUI.key?(Kboard::Key_H) or
LazyUI.key?(Kboard::Key_LEFT)
$app[:dy] = b[$app[:dy], MaxCanvasY[], 1] if LazyUI.key?(Kboard::Key_J) or
LazyUI.key?(Kboard::Key_DOWN)
$app[:dy] = b[$app[:dy], MaxCanvasY[], -1] if LazyUI.key?(Kboard::Key_K) or
LazyUI.key?(Kboard::Key_UP)
$app[:dx] = b[$app[:dx], MaxCanvasX[], 1] if LazyUI.key?(Kboard::Key_L) or
LazyUI.key?(Kboard::Key_RIGHT)
},
SelMap.new($app[:dst]){
self.x = $app[:mapx]; self.y = $app[:mapy]
canvasMapAll[proc{|mx, my, dx, dy|
@map[mx][my] = @map[mx][my] || SelMap::SelPoint.new(mx, my, self)
@map[mx][my].visible = $app[:select][dx][dy] ? $app[:select][dx][dy].visible : false
}]
@map.each{|kx, vx| vx.each{|ky, point|
z = ($app[:active] == 1) ? LazyUI::BlinkCA : LazyUI::BlinkCB
point.bitmap = z[$app[:cid]]
point.reposition
}}
},
LazyUI::Window.new(HMsg1.join(', ') + '. ', [:dark, :info, :bottom, :hint]),
LazyUI::Window.new(HMsg2.join(', ') + '. ', [:dark, :info, :bottom, :hint]),
LazyUI::Window.new(HMsg3.join(', ') + '. ', [:dark, :info, :bottom, :hint]),
LazyUI::CanvasBack.new,
LazyUI::CanvasCover.new{$app[:cover] = self}
){
$app[:cid] = ab[$app[:cid], CursorPassive, 1]
$app[:active] = b[$app[:active], 2, 1] if false or
LazyUI.key?(Kboard::Key_T) or LazyUI.key?(Kboard::Key_TAB)
$app[:select].each{|kx, vx|vx.each{|ky, vy| vy.visible = false if vy}} if false or
LazyUI.key?(Kboard::Key_R) or LazyUI.key?(Kboard::Key_BACK)
LazyUI.update
next !$exit
}
end
#======================================================================#
# CC-BY-SA #
#======================================================================#
[/pre]
[/fold]

|
评分
-
查看全部评分
|
写轮眼
发表于 2017-5-1 00:04:14
提升卡
沉默号角
喧嚣号角
变色卡
升龙剑
