关于菜单界面显示角色HP/MP数值排版的问题

莱恩哈特ss

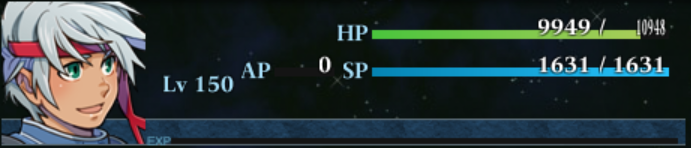

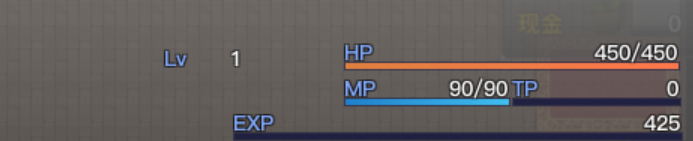

图一使用了Yanfly的菜单脚本，包括技能、状态等界面在内，角色的HP/MP是以值槽右侧对其来显示的，也不存在如图二所示因为数字位数过长导致字体被严重压缩的情况

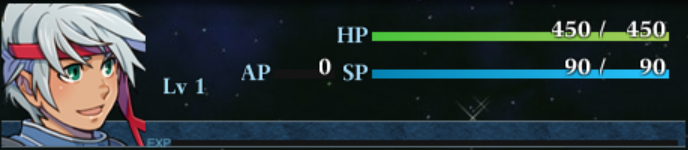

图三则是使用了如下所示的 Galv's Menu Themes Engine 菜单主题脚本，当前值/最大值的位置如默认排版一样位于固定位置，因数字位数过长被压缩。

特来请教一下如何在Galv的菜单脚本下实现这种右对齐的排版样式？

另附galv的脚本：

[pre lang="ruby" line="1"]#------------------------------------------------------------------------------#
#  Galv's Menu Themes Engine
#------------------------------------------------------------------------------#
#  For: RPGMAKER VX ACE
#  Version 1.6
#------------------------------------------------------------------------------#
#  NOTICE: This script is NOT free for commercial use.
#  Contact Galv via PM at one of the following forums:
#  http://www.rpgmakervxace.net/
#  http://forums.rpgmakerweb.com/
#------------------------------------------------------------------------------#

#------------------------------------------------------------------------------#
#  2013-06-27 - Version 1.6 - compatibility fix for xp rate
#  2013-06-11 - Version 1.5 - bug fixed with help menu text on incorrect menu
#  2013-06-09 - Version 1.4 - bug missed with last fix... now fixed. I hope.
#  2013-06-08 - Version 1.3 - fixed bug with hidden menu items
#                           - made disabled buttons text transparent
#  2013-04-16 - Version 1.2 - fixed a graphic object bug. Also included
#                           - Killozappit's Cache Back script in the demo to
#                           - help with lag on slower computers.
#  2013-04-15 - Version 1.1 - fixed a bug with using items/skills on actors
#  2013-04-15 - Version 1.0 - release
#------------------------------------------------------------------------------#
#  This script replaces the default menu and thus will not be compatible with
#  other scripts that do the same. The new changes to the menu offer a few
#  things such as:
#  - Image controlled menu scenes (including moving backgrounds)
#  - 'Themes' allow you to customize the look of the menu and change it in game
#  - Other scenes can change with theme (eg. item, equip, custom scenes, etc.)
#  - Customisable menu commands (icons, visibility switches, order, vocab)
#  - Animated (sliding) commands
#  - Help window for selected command
#  - Information bar with gold, current location and play time
#  - Modified actor status to include exp and tp (for actors with preserve tp)
#------------------------------------------------------------------------------#

#-------------------------------------------------------------------------------
#  SCRIPT CALL
#-------------------------------------------------------------------------------
#
#  theme("Theme_Name")      # Changes your menu theme to use the specified one.
#
#-------------------------------------------------------------------------------

($imported ||= {})["Galv_Menu_Themes"] = true
module GMENU
    COMMAND_LIST = [ # don't touch

#-------------------------------------------------------------------------------
#
#  *  MENU - COMMAND SETUP
#
#-------------------------------------------------------------------------------
#  Below list is your in-game menu commands. This replaces the database vocab
#  names and adds more control over customizing your game menu.
#-------------------------------------------------------------------------------

# ["Menu Text", :command_type, :Scene, switch1, switch2, help txt, icon]
  ["Items",     :cmd, :Scene_Item,   0, 0, "View or use items from your inventory.",270],
  ["Skills",    :sel, :Scene_Skill,  0, 0, "View or use character skills.",112],
  ["Equip",     :sel, :Scene_Equip,  0, 0, "Equip your characters with weapons and armor.",170],
  ["Status",    :sel, :Scene_Status, 0, 0, "View status of your characters.",117],
  ["Formation", :sel, :Formation,    0, 0, "Change your character order",121],
  ["Save",      :cmd, :Scene_Save,   0, 0, "Record your game progress.",224],
  ["Game End",  :cmd, :Scene_End,    0, 0, "End or restart the game.",6],

  ["Example1",:cmd, 1, 0, 0, "Example command - calls common event 1",278],
  ["Example2",:cmd, 1, 0, 0, "Example command - calls common event 1",278],



  # Here are examples of adding functionality via script. The script code for
  # these examples is in the "Example Script Commands" script in the list.
  #["Gold!",  :cmd, :custom1, 0, 0, "Scripted custom symbol example",280],
  #["Levelup!",  :sel, :custom2, 0, 0, "Scripted custom symbol on actor select example",290],

#-------------------------------------------------------------------------------
    ] # don't touch
#-------------------------------------------------------------------------------
#  INSTRUCTIONS
#-------------------------------------------------------------------------------
#  "Menu Text"........ the text used for the menu item
#  :command_type...... :cmd - goes to the scene when menu item accessed.
#                      :sel - select actor before going to the scene.
#  scene.............. name of the scene as a symbol. eg. :Scene_Item  (*)
#                      make this a number instead to call a common event.
#  switch1............ if switch is OFF, item is disabled. 0 to not use
#  switch2............ if switch is OFF, item will not appear. 0 to not use
#  help txt........... text that appears at the top of the menu screen
#  icon............... the icon id to use an icon next to your menu command
#-------------------------------------------------------------------------------
#  (*) Scripters can use a custom symbol here to do other functions by aliasing
#  or overwriting methods found on
#-------------------------------------------------------------------------------


#-------------------------------------------------------------------------------
#
#  *  MENU SETTINGS
#
#-------------------------------------------------------------------------------


    SHOW_TP = true    # Show TP if actor has 'preserve tp' feature true or false

    ACTORS_SHOWN = 4  # Number of actors visible in the menu before scrolling

    DEFAULT_THEME = "Theme_Default"  # The theme your game will use to begin.


#-------------------------------------------------------------------------------
#  THEME SETUP - DEFAULT THEME
#-------------------------------------------------------------------------------
    module Theme_Default

      # Gerenal Options
      FONT = "Arial"             # Font used throughout theme.
      FONT_SIZE = 21             # Font size used throughout theme.
      WINDOW_TONE = [22,52,72,0] # Color tone of scenes that use windowskins

      # Background
      BACK1_XY = [1,1]           # X,Y movement for background1 (default stars)
      BACK1_OPACITY = 190        # Background opacity

      BACK2_XY = [0,0]           # X,Y movement for background2 (default top bar)
      BACK2_OPACITY = 255        # Background opacity

      BACK3_XY = [0,0]       # X,Y movement for background2 (default bottom bar)
      BACK3_OPACITY = 255    # Background opacity

      SCENE_BACK_OPACITY = 255  # Background opacity for other scene background

      # Command Menu
      MENU_FONT = "Arial"        # Different font used for the menu text
      MENU_FONT_SIZE = 21        # Size of menu text
      MENU_TXT_COLOR = Color.new(255, 255, 255, 255)   # Color of menu text
      MENU_TXT_OUT = Color.new(27, 57, 97, 255)     # Color of menu text outline
      MENU_TXT_XY = [0,-2]      # X,Y offset for text in command menu
      MENU_ICON_XY = [35,1]     # X,Y offset for icons in command menu
      SLIDE_ICON = true         # true or false to slide icon with menu text
      SLIDE_SPEED = 5           # Speed the menu buttons slide in and out
      SLIDE_OFF = -30           # X Position of button when cursor not on it
      SLIDE_ON = 0            # X Position of button when cursor is on it
      MENU_Y_OFFSET = 45        # Distance Y from top of screen
      MENU_WIDTH = 170          # Width reserved for the main menu.

      # Help Window
      HELP_XY = [44,2]          # X,Y offset for help text
      HELP_TEXT_COLOR = Color.new(200, 235, 255, 255) # Color of help text

      # Game Info Window
      INFO_XY = [0,0]          # X,Y offset for info text
      GAME_INFO_TXT_COLOR = Color.new(200, 235, 255, 255) # Game Info text color
      CURRENCY_ICON = 262       # Icon used instead of currency vocab. 0 = vocab

      # Actor Status
      STAT_COLOR = Color.new(167, 223, 248, 255) # Color used for lvl,hp,mp
      GAUGEB_COLOR = Color.new(20, 20, 20, 255) # Color of gauge backs
      HP_COLOR1 = Color.new(74, 197, 61, 255) # Color for hp gauge gradient
      HP_COLOR2 = Color.new(169, 206, 89, 255)# Color for hp gauge gradient
      MP_COLOR1 = Color.new(5, 132, 179, 255) # Color for mp gauge gradient
      MP_COLOR2 = Color.new(40, 197, 255, 255)# Color for mp gauge gradient
      XP_COLOR1 = Color.new(88, 147, 174, 255) # Color for xp gauge gradient
      XP_COLOR2 = Color.new(133, 181, 203, 255)# Color for xp gauge gradient
      TP_COLOR1 = Color.new(255, 166, 12, 255) # Color for tp gauge gradient
      TP_COLOR2 = Color.new(255, 126, 12, 255)# Color for tp gauge gradient
      GAUGE_FONT = "VL Gothic Regular"  # Font used for hp/mp and amounts.
    end

#-------------------------------------------------------------------------------
#  CUSTOM THEMES
#-------------------------------------------------------------------------------
#  You can make your own custom menu themes and swap between them during the
#  game or make them available for others to use. Each theme has it's own folder
#  in your project located in /Graphics/GMenu/Theme_Name/
#  For example the default theme is:
#  /Graphics/GMenu/Theme_Default/
#
#  HOW TO MAKE A THEME:
#  1. Make a duplicate of the /Theme_Default/ folder and rename it.
#  2. Modify the graphics how you see fit, using the default as templates
#  3. (Optional) You can use the theme_settings.txt file found in the template
#     folder to create new settings for the theme. Copy the script from the
#     file and paste it a new script position below this menu script. Change
#     "Theme_Default" at the top to the name of your theme's folder.
#  4. If you did that right, now in your game, you can use the script call:
#     theme("Theme_Name")
#     To change your menu theme during the game to any theme you have installed.
#
#  If you do not create your own settings script (step 3) for your custom theme,
#  it will use the settings from Theme_Default.
#-------------------------------------------------------------------------------

#-------------------------------------------------------------------------------
#  THEME SETUP - INNER SCENES
#-------------------------------------------------------------------------------
#  Inner scenes (such as item, equip, skills etc) can use the same Background
#  (using BACK1 setting) as well as windowskin used in the current theme.
#  List scenes below that you wish for this to occur.
#-------------------------------------------------------------------------------
    SCENE_THEMES = [ # don't touch
#-------------------------------------------------------------------------------

      "Scene_Item",
      "Scene_Skill",
      "Scene_Equip",
      "Scene_Status",
      "Scene_Save",
      "Scene_End",
      "Scene_Party",
      "Scene_System",
      "Scene_Load",

      #"Scene_File",
      #"Scene_Load",
      #"Scene_Shop",
      #"Scene_Name",
      #"Scene_Gameover",
      #"Scene_Title",

#-------------------------------------------------------------------------------
      ] # don't touch
#-------------------------------------------------------------------------------
#  In addition to this, the script will check the theme folder for any images.
#  with the scene name (above) followed by "_Background" and "_Background2".
#  For example if the following file is found in the theme folder:
#  Scene_Item_Background.png (or jpg)
#  It will use that image INSTEAD of Background.jpg for Background1. It will
#  also look for Scene_Item_Background2.png (or jpg) which will appear above
#  the first background. This background is static and does not move.
#-------------------------------------------------------------------------------

#-------------------------------------------------------------------------------
#
#  * END SETTINGS
#
#-------------------------------------------------------------------------------

end # GMENU


module Check_Theme
  def mtheme
    Object.const_get("GMENU").const_get($game_system.menu_theme) rescue
      GMENU::Theme_Default
  end
end # Check_Theme


    #----------------------#
#---|   GAME_INTERPERTER   |----------------------------------------------------
    #----------------------#

class Game_Interpreter
  def theme(name)
    $game_system.menu_theme = name
  end
end # Game_Interpreter


    #-----------#
#---|   CACHE   |---------------------------------------------------------------
    #-----------#

module Cache
  def self.gmenu(filename,theme)
    load_bitmap("Graphics/GMenu/" + theme + "/", filename)
  end
end # Cache


    #-----------------#
#---|   GAME_SYSTEM   |---------------------------------------------------------
    #-----------------#

class Game_System
  attr_accessor :menu_theme

  alias gmenu_engine_gs_initialize initialize
  def initialize
    @menu_theme = GMENU::DEFAULT_THEME
    gmenu_engine_gs_initialize
  end
end # Game_System


    #---------------#
#---|   GAME_TEMP   |-----------------------------------------------------------
    #---------------#

class Game_Temp
  attr_accessor :themed_scene
  attr_accessor :menuindexes

  alias gmenu_engine_gt_initialize initialize
  def initialize
    @themed_scene = false
    gmenu_engine_gt_initialize
  end
end # Game_Temp


    #----------------#
#---|   GAME_ACTOR   |----------------------------------------------------------
    #----------------#

class Game_Actor < Game_Battler
  def xp_rate
    a = (exp.to_f - current_level_exp.to_f)
    b = (next_level_exp.to_f - current_level_exp.to_f)
    if exp > 0 && b > 0
      return a / b
    else
      return 0
    end
  end
end # Game_Actor < Game_Battler


    #----------------#
#---|   SCENE_MENU   |----------------------------------------------------------
    #----------------#

class Scene_Menu < Scene_MenuBase
  attr_accessor :command_window
  include Check_Theme

  # OVERWRITE
  def start
    super
    create_graphics
    create_help_window
    create_new_command_window
    create_gameinfo_window
    create_status_window
  end

#---|   CREATE WINDOWS   |

  def create_help_window
    @help_window = Window_MenuHelp.new
  end

  # OVERWRITE
  def create_status_window
    @status_window = Window_MainMenuStatus.new(@command_window.width,
      @help_window.height,Graphics.height - @help_window.height -
      @gameinfo_window.height)
  end

  # OVERWRITE
  def create_new_command_window
    @command_window = Window_MenuCommand.new(0,@help_window.height)
    @command_window.help_window = @help_window
    menu_array = Array.new(GMENU::COMMAND_LIST)
    menu_array.each { |cmd|
      handle = cmd[0].delete(' ').downcase.to_sym
      @command_window.set_handler(handle, method(cmd[1]))
    }
    @command_window.set_handler(:cancel, method(:return_scene))
  end

  def create_gameinfo_window
    @gameinfo_window = Window_GameInfo.new
    @gameinfo_window.x = 0
    @gameinfo_window.y = Graphics.height - @gameinfo_window.height
  end

#---|   CREATE GRAPHICS   |

  def create_graphics
    create_background2
    create_background3
  end

  def create_background2
    @background2 = Plane.new
    @background2.bitmap = Cache.gmenu("Background2",$game_system.menu_theme)
    @background2.opacity = mtheme::BACK2_OPACITY
  end

  def create_background3
    @background3 = Plane.new
    @background3.bitmap = Cache.gmenu("Background3",$game_system.menu_theme)
    @background3.opacity = mtheme::BACK3_OPACITY
    @background3.oy = -Graphics.height
  end

#---|   UPDATING   |

  def update
    super
    update_background2
    update_background3
    update_gameinfo
  end

  def update_background2
    @background2.ox -= mtheme::BACK2_XY[0]
    @background2.oy -= mtheme::BACK2_XY[1]
  end
  def update_background3
    @background3.ox -= mtheme::BACK3_XY[0]
    @background3.oy -= mtheme::BACK3_XY[1]
  end
  def update_gameinfo
    @gameinfo_window.refresh
  end

#---|   FUNCTIONALITY   |

  alias gmenu_engine_sm_dispose_background dispose_background
  def dispose_background
    gmenu_engine_sm_dispose_background
    if @background2
      @background2.bitmap.dispose
      @background2.dispose
    end
    if @background3
      @background3.bitmap.dispose
      @background3.dispose
    end
  end

  def cmd
    cmd = $game_temp.menuindexes[@command_window.index]
    symbol = GMENU::COMMAND_LIST[cmd][2]
    if GMENU::COMMAND_LIST[cmd][2].is_a?(Integer)
      common_event_command(GMENU::COMMAND_LIST[cmd][2])
    elsif custom_symbol(symbol)
      custom_on_command_ok(symbol)
    else
      SceneManager.call(GMENU::COMMAND_LIST[cmd][2])
    end
  end

  def common_event_command(id)
    $game_temp.reserve_common_event(id)
    SceneManager.return
  end

  def sel
    command_personal
  end

  # OVERWRITE
  def command_personal
    @status_window.select_last
    @status_window.activate
    @status_window.set_handler(:ok,     method(:on_personal_ok))
    @status_window.set_handler(:cancel, method(:on_personal_cancel))
  end

  # OVERWRITE
  def on_personal_ok
    cmd = $game_temp.menuindexes[@command_window.index]
    symbol = GMENU::COMMAND_LIST[cmd][2]
    if symbol == :Formation
      on_formation_ok
    elsif custom_symbol(symbol)
      custom_on_personal_ok(symbol)
    else
      SceneManager.call(symbol)
    end
  end

  def custom_symbol(symbol)
    # Alias/overwrite this method for custom symbols.
    # Make this method return true if symbol equals your custom symbol.
  end

  def custom_on_command_ok(symbol)
    # Alias/overwrite this method for custom symbols. (For 'ok' on command)
    # Add your functionality here including if symbol equals your custom symbol.
  end

  def custom_on_personal_ok(symbol)
    # Alias/overwrite this method for custom symbols. (For 'ok' on actor)
    # Add your functionality here including if symbol equals your custom symbol.
  end

  def custom_on_personal_cancel(symbol)
    # Alias/overwrite this method for custom symbols. (Cancelling on actor)
    # Add your cancel code here including if symbol equals your custom symbol.
  end

  # OVERWRITE
  def on_personal_cancel
    cmd = @command_window.index
    symbol = GMENU::COMMAND_LIST[cmd][2]
    if symbol == :Formation
      on_formation_cancel
    elsif custom_symbol(symbol)
      custom_on_personal_cancel(symbol)
    else
      @status_window.unselect
      @command_window.activate
    end
  end
end # Scene_Menu < Scene_MenuBase


    #------------------------#
#---|   WINDOW_MENUCOMMAND   |--------------------------------------------------
    #------------------------#

class Window_MenuCommand < Window_Command

  #OVERWRITE
  def initialize(x,y)
    @menu_buttons = []
    super(x, y)
    select_last
    self.opacity = 0
  end

  def draw_item(index)
    @menu_buttons << MenuBtn.new(@viewport,index)
  end

  def visible_line_number
    item_max
  end

  def window_width
    return mtheme::MENU_WIDTH
  end

  def update
    super
    @menu_buttons.each { |btn| btn.update(index) }
  end

  def dispose
    @menu_buttons.each { |btn| btn.dispose }
    super
  end

  def update_cursor
    if @cursor_all
      cursor_rect.empty
      self.top_row = 0
    elsif @index < 0
      cursor_rect.empty
    else
      ensure_cursor_visible
      cursor_rect.empty
    end
  end

  def add_new_main_commands
    $game_temp.menuindexes = []
    menu_array = Array.new(GMENU::COMMAND_LIST)
    menu_array.each_with_index { |cmd,i|
      next if cmd[4] > 0 && !$game_switches[cmd[4]]
      $game_temp.menuindexes << i
      text = cmd[0]
      active = get_active(cmd[2],cmd[3])
      handle = cmd[0].delete(' ').downcase.to_sym
      add_command(text, handle, active)
    }
  end

  def get_active(symbol,switch)
    return false if switch > 0 && !$game_switches[switch]
    case symbol
    when :Formation
      formation_enabled
    when :Scene_Save
      save_enabled
    else
      main_commands_enabled
    end
  end

  def make_command_list
    add_new_main_commands
  end

end # Window_MenuCommand < Window_Command


    #----------------------#
#---|   WINDOW_MENUSTATUS  |----------------------------------------------------
    #----------------------#

class Window_MainMenuStatus < Window_MenuStatus
  include Check_Theme

  def initialize(x, y, h = 0)
    @height = h
    super(x, y)
    self.opacity = 0
  end

  def window_width
    Graphics.width - mtheme::MENU_WIDTH
  end

  def standard_padding
    return 6
  end

  def window_height
    @height
  end

  def item_height
    (@height - 12) / GMENU::ACTORS_SHOWN
  end

  def draw_item(index)
    actor = $game_party.members[index]
    enabled = $game_party.battle_members.include?(actor)
    rect = item_rect(index)
    draw_item_background(index)
    draw_back_graphics(index,item_height,item_width,enabled)
    draw_gface(actor.face_name,actor.face_index,rect.x + 1,rect.y + 1,
      item_height - 2,enabled)
    draw_gsimple_status(actor, rect.x + 108, rect.y, item_height)
  end
end


    #--------------------#
#---|   WINDOW_MENUHELP  |------------------------------------------------------
    #--------------------#

class Window_MenuHelp < Window_Help
  include Check_Theme

  def initialize
    super(1)
    self.opacity = 0
  end

  def standard_padding
    return 6
  end

  def clear
    ind = $game_temp.menuindexes[SceneManager.scene.command_window.index]
    set_text(GMENU::COMMAND_LIST[ind][5])
  end

  def refresh
    contents.clear
    draw_text_ex(mtheme::HELP_XY[0], mtheme::HELP_XY[1], @text)
  end

  def draw_text_ex(x, y, text)
    reset_font_settings
    change_color(mtheme::HELP_TEXT_COLOR)
    self.contents.font.name = mtheme::FONT
    self.contents.font.size = mtheme::FONT_SIZE
    text = convert_escape_characters(text)
    pos = {:x => x, :y => y, :new_x => x, :height => calc_line_height(text)}
    process_character(text.slice!(0, 1), text, pos) until text.empty?
  end
end


    #---------------------#
#---|   WINDOW_GAMEINFO   |-----------------------------------------------------
    #---------------------#

class Window_GameInfo < Window_Base
  include Check_Theme

  def initialize
    super(0, 0, Graphics.width, fitting_height(1))
    self.opacity = 0
    refresh
  end

  def standard_padding
    return 6
  end

  def refresh
    contents.clear
    self.contents.font.name = mtheme::FONT
    self.contents.font.size = mtheme::FONT_SIZE
    draw_gld
    draw_location
    draw_playtime
  end

  def draw_gld
    value = $game_party.gold
    if mtheme::CURRENCY_ICON > 0
      i = draw_icon(mtheme::CURRENCY_ICON, contents.width / 4 - 43, -1, true)
      draw_currency_value(value,i,tx+4,ty,contents.width / 4 - 45)
    else
      draw_currency_value(value,Vocab::currency_unit,tx+4,ty,contents.width / 4 - 18)
    end
  end

  def tx
    mtheme::INFO_XY[0]
  end
  def ty
    mtheme::INFO_XY[1]
  end

  def draw_location
    change_color(mtheme::GAME_INFO_TXT_COLOR)
    draw_text(tx,ty,Graphics.width,line_height,$game_map.display_name,1)
  end

  def draw_playtime
    draw_text(tx,ty,Graphics.width - 20,line_height,time_text,2)
  end

  def time_text
    sprintf("%02d:%02d:%02d", (Graphics.frame_count / 60**2) / 60,
      Graphics.frame_count / 60**2 % 60,
      Graphics.frame_count / 60 % 60)
  end

  def draw_currency_value(value, unit, x, y, width)
    cx = text_size(unit).width
    change_color(mtheme::GAME_INFO_TXT_COLOR)
    draw_text(x, y, width - cx - 2, line_height, value, 2)
    change_color(system_color)
    draw_text(x, y, width, line_height, unit, 2)
  end

  def open
    refresh
    super
  end
end


    #-----------------#
#---|   WINDOW_BASE   |---------------------------------------------------------
    #-----------------#

class Window_Base < Window
  include Check_Theme

  alias galv_gmenu_engine_wb_initialize initialize
  def initialize(x, y, width, height)
    galv_gmenu_engine_wb_initialize(x, y, width, height)
    if $game_temp.themed_scene
      self.windowskin = Cache.gmenu("Windowskin",$game_system.menu_theme) rescue
        Cache.system("Window")
        set_theme_tone
    end
  end

  alias galv_gmenu_engine_wb_system_color system_color
  def system_color
    if $game_temp.themed_scene
      mtheme::STAT_COLOR
    else
      galv_gmenu_engine_wb_system_color
    end
  end

  alias galv_gmenu_engine_wb_gauge_back_color gauge_back_color
  def gauge_back_color
    if $game_temp.themed_scene
      mtheme::GAUGEB_COLOR
    else
      galv_gmenu_engine_wb_gauge_back_color
    end
  end

  def set_theme_tone
    a,b,c,d = mtheme::WINDOW_TONE
    self.tone.set(a,b,c,d)
  end

  alias galv_gmenu_engine_wb_update_tone update_tone
  def update_tone
    if $game_temp.themed_scene
      set_theme_tone
    else
      galv_gmenu_engine_wb_update_tone
    end
  end

  def draw_back_graphics(ind,height,width,enabled = true)
    if enabled
      bitmap = Cache.gmenu("ActorBackground",$game_system.menu_theme)
    else
      bitmap = Cache.gmenu("ActorBackgroundDisabled",$game_system.menu_theme)
    end
    rect = Rect.new(1,0,width - 2,bitmap.height + 2)
    y = (rect.y + height) * ind - (bitmap.height - height) - 2
    contents.blt(rect.x, y, bitmap, rect, 255)
    bitmap.dispose
  end

  def draw_gsimple_status(actor, x, y, height)
    contents.font.name = mtheme::FONT
    contents.font.size = mtheme::FONT_SIZE
    draw_actor_name(actor, x, y + height - 30)
    draw_glevel(actor, x, y + height - 30 - line_height * 1)
    draw_gicons(actor, x - 108, y + line_height * 2 + 3)
    draw_gclass(actor, x, y + height - 30)
    contents.font.size = 20
    contents.font.name = mtheme::GAUGE_FONT
    w = contents.width - 260
    h = (height - 80) / 2
    draw_ghp(actor, x + 140, y + h / 2 , w)
    draw_gmp(actor, x + 140, y + line_height - 4 + h,w)
    if actor.preserve_tp? && GMENU::SHOW_TP
      draw_gtp(actor, x + 75, y + line_height - 4 + h,40)
    end
    draw_gxp(actor, x + 6, y + height - 23, contents.width - 120)
  end

  def draw_gtp(actor, x, y, width = 124)
    draw_gauge(x, y, width, actor.tp_rate,mtheme::TP_COLOR1,mtheme::TP_COLOR1)
    change_color(system_color)
    draw_text(x - 30, y + 7, 30, line_height, Vocab::tp_a,2)
    change_color(tp_color(actor))
    draw_text(x + width - 42, y + 3, 42, line_height, actor.tp.to_i, 2)
  end

  def draw_gxp(actor,x,y,width = 124)
    draw_xpgauge(x, y, width, actor.xp_rate, mtheme::XP_COLOR1, mtheme::XP_COLOR2)
  end

  def draw_xpgauge(x, y, width, rate, color1, color2)
    fill_w = (width * rate).to_i
    gauge_y = y + line_height - 8
    contents.fill_rect(x, gauge_y, width, 4, gauge_back_color)
    contents.gradient_fill_rect(x, gauge_y, fill_w, 4, color1, color2)
  end

  def draw_ghp(actor, x, y, width = 124)
    draw_gauge(x, y, width, actor.hp_rate, mtheme::HP_COLOR1, mtheme::HP_COLOR2)
    change_color(system_color)
    draw_text(x - 30, y + 7, 30, line_height, Vocab::hp_a,2)
    draw_current_and_max_values(x, y + 3, width, actor.hp, actor.mhp,
      hp_color(actor), normal_color)
  end

  def draw_gmp(actor, x, y, width = 124)
    draw_gauge(x, y, width, actor.mp_rate, mtheme::MP_COLOR1, mtheme::MP_COLOR2)
    change_color(system_color)
    draw_text(x - 30, y + 7, 30, line_height, Vocab::mp_a,2)
    draw_current_and_max_values(x, y + 3, width, actor.mp, actor.mmp,
      mp_color(actor), normal_color)
  end

  def draw_gicons(actor, x, y, width = 96)
    icons = (actor.state_icons + actor.buff_icons)[0, width / 24]
    icons.each_with_index {|n, i| draw_icon(n, x, y - 16 * i) }
  end

  def draw_gface(face_name, face_index, x, y, height, enabled = true)
    bitmap = Cache.face(face_name)
    h = [height,96].min - 1
    y_offset = GMENU::ACTORS_SHOWN > 4 ? 1.25 : 1
    h2 = 96 - h * y_offset
    rect = Rect.new(face_index % 4 * 96, face_index / 4 * 96 + h2, 96, h)
    contents.blt(x, y, bitmap, rect, enabled ? 255 : translucent_alpha)
    bitmap.dispose
  end

  def draw_glevel(actor, x, y)
    wid = Graphics.width - 300
    change_color(system_color)
    draw_text(x, y, wid, line_height, Vocab::level_a + " " + actor.level.to_s, 0)
  end

  def draw_gclass(actor, x, y)
    change_color(normal_color)
    draw_text(x, y, Graphics.width - 290, line_height, actor.class.name,2)
  end
end # Window_Base < Window


    #-----------------#
#---|   SCENEMANAGER  |---------------------------------------------------------
    #-----------------#

module SceneManager
  class << self
    alias gmenu_engine_sm_call call
  end

  def self.call(scene_class)
    if scene_class.is_a?(Symbol)
      @stack.push(@scene)
      @scene = Kernel.const_get(scene_class).new
    else
      gmenu_engine_sm_call(scene_class)
    end
  end

  def self.themed_scene
    array = ["Scene_Menu"] + GMENU::SCENE_THEMES
    return true if array.include?(@scene.name)
    return false
  end
end # SceneManager


class Scene_MenuBase < Scene_Base
  include Check_Theme

  alias gmenu_engine_sb_start start
  def start
    gmenu_engine_sb_start
    if SceneManager.themed_scene
      $game_temp.themed_scene = true
      create_theme_backgrounds
    end
  end

  def create_theme_backgrounds
    create_background1
    create_themebg2
  end

  def create_background1
    @background1 = Plane.new
    @background1.bitmap = Cache.gmenu(name + "_Background",$game_system.menu_theme) rescue
      Cache.gmenu("Background",$game_system.menu_theme)
    @background1.opacity = mtheme::BACK1_OPACITY
    @background1.z = -1
    @background_sprite.z = -2
  end

  def create_themebg2
    @themebg2 = Sprite.new
    if !SceneManager.scene_is?(Scene_Menu)
      @themebg2.bitmap = Cache.gmenu(name + "_Background2",$game_system.menu_theme) rescue
      Cache.gmenu("Scene_Generic_Background2",$game_system.menu_theme) rescue
      nil
    end
    @themebg2.opacity = mtheme::SCENE_BACK_OPACITY
    if @themebg2.bitmap
      @themebg2.x = [(Graphics.width - @themebg2.bitmap.width) / 2,0].max
    end
    @themebg2.z = 0
  end

  alias gmenu_engine_sb_update update
  def update
    gmenu_engine_sb_update
    if @background1
      @background1.ox -= mtheme::BACK1_XY[0]
      @background1.oy -= mtheme::BACK1_XY[1]
    end
  end

  alias gmenu_engine_sb_terminate terminate
  def terminate
    gmenu_engine_sb_terminate
    $game_temp.themed_scene = false
    @background1.dispose if @background1
    @themebg2.dispose if @themebg2
  end

  def name
    if self.to_s =~ /#<(.*):/i
      return $1
    else
      return ""
    end
  end
end # Scene_Base


    #--------------------#
#---|   SPRITE_MENUBTN   |------------------------------------------------------
    #--------------------#

class MenuBtn
  include Check_Theme

  def initialize(viewport,index)
    @index1 = index
    @index = 0
    create_bitmap
    create_text
    create_icon
  end

  def dispose
    @text.dispose
    @icon.dispose
    @btn.dispose
    @text.bitmap.dispose
    @icon.bitmap.dispose
    @btn.bitmap.dispose
  end

  def update(index)
    @index = $game_temp.menuindexes[index]
    update_position
  end

  def menuitem
    GMENU::COMMAND_LIST[$game_temp.menuindexes[@index1]]
  end

  def create_bitmap
    if SceneManager.scene.command_window
      cmd_index = SceneManager.scene.command_window.index
    else
      cmd_index = 0
    end
    @btn = Sprite.new
    @btn.bitmap = Cache.gmenu("MenuButton",$game_system.menu_theme)
    @btn.y = mtheme::MENU_Y_OFFSET + @index1 * @btn.bitmap.height
    @btn.x = @index1 == cmd_index ? mtheme::SLIDE_ON : mtheme::SLIDE_OFF
    @btn.opacity = @index1 == cmd_index ? 255 : 160
  end

  def create_icon
    @icon = Sprite.new
    @icon.bitmap = Bitmap.new(800,800)
    @tempicon = Sprite.new
    @tempicon.bitmap = Cache.system("Iconset")
    icon_index = menuitem[6]
    rect = Rect.new(icon_index % 16 * 24, icon_index / 16 * 24, 24, 24)
    @icon.bitmap.blt(mtheme::MENU_ICON_XY[0], mtheme::MENU_ICON_XY[1],
      @tempicon.bitmap, rect, 255)
    @tempicon.bitmap.dispose if @tempicon.bitmap
    @tempicon.dispose
    @icon.x = @btn.x if mtheme::SLIDE_ICON
    @icon.y = @btn.y
    @icon.z = 100
  end

  def create_text
    @text = Sprite.new
    @text.bitmap = Bitmap.new(180,35)
    @text.bitmap.font.name = mtheme::MENU_FONT
    @text.bitmap.font.color = mtheme::MENU_TXT_COLOR
    @text.bitmap.font.out_color = mtheme::MENU_TXT_OUT
    @text.bitmap.font.size = mtheme::MENU_FONT_SIZE
    text = menuitem[0]
    @text.bitmap.draw_text(mtheme::MENU_TXT_XY[0],
      mtheme::MENU_TXT_XY[1],150,35, text,2)
    @text.x = @btn.x
    @text.y = @btn.y
    @text.opacity = 100 if menuitem[3] > 0 && !$game_switches[menuitem[3]]
  end

  def update_position
    if $game_temp.menuindexes[@index1] == @index
      @btn.opacity = 255
      return if @btn.x >= mtheme::SLIDE_ON
      @btn.x += mtheme::SLIDE_SPEED
      @text.x += mtheme::SLIDE_SPEED
      @icon.x += mtheme::SLIDE_SPEED if mtheme::SLIDE_ICON
    else
      @btn.opacity = 160
      return if @btn.x <= mtheme::SLIDE_OFF
      @btn.x -= mtheme::SLIDE_SPEED
      @text.x -= mtheme::SLIDE_SPEED
      @icon.x -= mtheme::SLIDE_SPEED if mtheme::SLIDE_ICON
    end
  end
end # Sprite_MenuBtn < Sprite_Base[/pre]
