VX图块扩充简易方法

长奁 · 发表于 2013-6-21 23:14:39

加入我们，或者，欢迎回来。

您需要登录才可以下载或查看，没有帐号？注册会员

x

真正有效的脚本内容很短呢。
由于脚本内已经够啰嗦了，这里也没什么好说的了……。

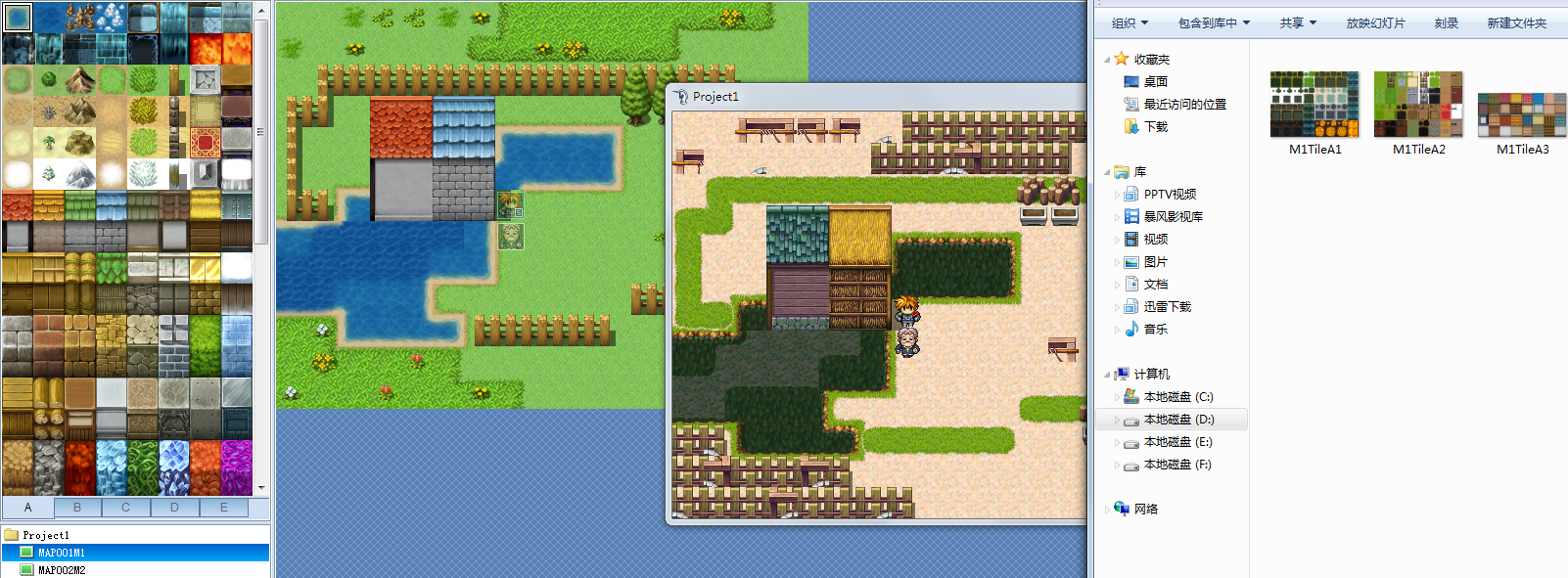

看脚本吧。上图。

#==================================================================
# ● VX图块扩充 -BY 长奁
#------------------------------------------------------------------
#
# ○ 前言/ 介绍：
#
# 是否觉得VX的图块太吝啬，在风格多变的大工程中根本不够用呢？
# 可以通过此脚本，在不同的地图使用不同的素材哦。
# 再怎么丰富的内容，一张地图，一组图块素材，也该够用了。
#
#------------------------------------------------------------------
#
# 本是基于自己需求所写，不过好VX图块少这一点被大家广为诟病，
# 就发上来同大家分享了。有些粗糙，而且可能不够精简，请见谅。
#
#==================================================================
#
# ● 使用方法：
#
# - 素材：在图块名称内加入"Mx"，其中x代表其组别编号。放在System文件夹下。
# - 地图：在地图名字中加入"Mx"，其中x代表使用第几组图块。
#
# P.S.地图名字中无此标识时，使用默认图块（RTP原名称）。
#
# ○ 其他说明：
#
# 由于"Mx"无论放在什么位置，脚本都可生效，
# 故使用显示地图名脚本的朋友可以在地图名后加入长串空格，再打上标识，
# 这样标识可以不被显示出来。
#
#------------------------------------------------------------------
#
# ● 设定部分：
#
# 在下方的设置之中可以设定共有几组图块素材。
#
#==================================================================
module Map_Amount
MAP_AMOUNT = 3 # 设定共有几组图块。
end
#==================================================================
class Game_Map
attr_reader :map_id
def mapname
$mapname = load_data("Data/MapInfos.rvdata")
$mapname[@map_id].name
end
end
class Spriteset_Map
def create_tilemap
@tilemap = Tilemap.new(@viewport1)
@tilemap.bitmaps[0] = Cache.system("TileA1")
@tilemap.bitmaps[1] = Cache.system("TileA2")
@tilemap.bitmaps[2] = Cache.system("TileA3")
@tilemap.bitmaps[3] = Cache.system("TileA4")
@tilemap.bitmaps[4] = Cache.system("TileA5")
@tilemap.bitmaps[5] = Cache.system("TileB")
@tilemap.bitmaps[6] = Cache.system("TileC")
@tilemap.bitmaps[7] = Cache.system("TileD")
@tilemap.bitmaps[8] = Cache.system("TileE")
for i in 0..(Map_Amount::MAP_AMOUNT - 1)
if $game_map.mapname.to_s.include? "M#{i+1}"
@tilemap.bitmaps[0] = Cache.system("M#{i+1}TileA1")
@tilemap.bitmaps[1] = Cache.system("M#{i+1}TileA2")
@tilemap.bitmaps[2] = Cache.system("M#{i+1}TileA3")
@tilemap.bitmaps[3] = Cache.system("M#{i+1}TileA4")
@tilemap.bitmaps[4] = Cache.system("M#{i+1}TileA5")
@tilemap.bitmaps[5] = Cache.system("M#{i+1}TileB")
@tilemap.bitmaps[6] = Cache.system("M#{i+1}TileC")
@tilemap.bitmaps[7] = Cache.system("M#{i+1}TileD")
@tilemap.bitmaps[8] = Cache.system("M#{i+1}TileE")
end
end
@tilemap.map_data = $game_map.data
@tilemap.passages = $game_map.passages
end
end

复制代码

就先不做范例了。
可能有表述不清的地方…不懂可以问我。
请各位前辈多指教。

rrz1 · 发表于 2013-6-22 20:53:30

挺实用的……

审判者 · 发表于 2013-6-22 22:06:01

{:2_282:} 不错

scottyfan · 发表于 2013-6-26 03:03:01

请问，通行度问题怎么解决。

yangjunyin2002 · 发表于 2013-6-29 14:08:46

纳尼？！通行度的问题如何解决？

yangjunyin2002 · 发表于 2013-6-30 15:14:54

本帖最后由 yangjunyin2002 于 2013-6-30 15:54 编辑

@长奁加个好友吧~另外我建议通行问题这样：
就是让你在system文件夹中加个txt文件，文件名就单纯的MX（X就是对应的图块组号），然后里面按TileA1到TileE的顺序（一行一行左到右的顺序）写。（1代表X，2代表O，3代表☆）
这样子写好数字保存。

发现问题！此脚本和Wall Tile Extension脚本（ http://anonymouscreations.we.bs ）不兼容？！

satgo1546 · 发表于 2013-6-30 15:45:14

打空格后Mx不显示出来是不对的，这样只能控制编辑器内不显示，而实际游戏中由于draw_text会把超出的文本压缩显示，因此仍然会显示出来，有必要考虑获取地名时不给出Mx。

长奁 · 发表于 2013-6-30 18:14:22

yangjunyin2002 发表于 2013-6-30 15:14
@长奁加个好友吧~另外我建议通行问题这样：
就是让你在system文件夹中加个txt文件，文件名就单纯的MX（X就 ...

谢谢您的提议，有时间我一定看看。可惜现在快考试了。关于通行度我个人的看法是新建工程，在新工程里用新图块，然后设定通行度，在data文件夹里，然后可以把它复制过来名字加MX。
这样的话地图也可以直接在新工程里绘制了，还直观方便，到时候直接把整张地图复制过来就好了。

yangjunyin2002 · 发表于 2013-6-30 18:25:39

本帖最后由 yangjunyin2002 于 2013-6-30 18:28 编辑

长奁发表于 2013-6-30 18:14
谢谢您的提议，有时间我一定看看。可惜现在快考试了。关于通行度我个人的看法是新建工程，在新工程里用新 ...

恩，不过通行度有DATA文件的吗？顺便加我QQ吧：1337253857
另外，话说我后天也要期末考了。。。

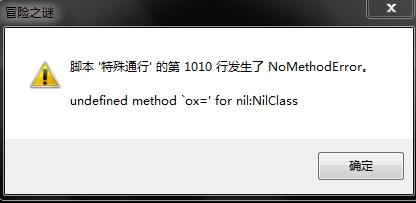

@长奁对了，你那个脚本和下面这个特殊通行脚本冲突。

#============================================================================
#
#　** Wall Tile Extension　* Ver1.00　
# * Creator: 月紳士 (Moon Man) ( http://tsukishinshi.blog73.fc2.com )
#
#　* RPG Maker VX RGSS2 Script
#
# * Translation by: Mr. Anonymous ( http://anonymouscreations.we.bs )
#
#============================================================================
=begin
This script chiefly enhances the movement judgment and enables the following
expressions for the wall tiles.
.Basic Features
　　The following functions work by using this script:
　* Enables movement behind walls and atop roofs.
　*　Reproduction of the XP ceiling conceal, which makes designated tiles conceal
characters like they did in XP.
* Creates "invisible passage" so you can make secret passages or movement under
fake bridges.
　*　Added passability options.
　*　A function to create ladders/stairs which penetrate normally impassible tiles.
　* Bridges automatically act as such, having you walk on and under them, at the
same time if events do it, with no events to control it.
#------------------------------------------------------------------------------
* Tags
　* Bridge Passage Area
When you need to create a bridge in which the player can move under when in
a vehicle, first create a new area that contains said bridge, and name the
area:
<bridge>
　* Event Behind Roof/Ceiling/Wall/Cliff
When you need to create an event that rests behind a roof, cieling, wall,
cliff, etc, (if BACK_SEEING = true, when the player is 1 tile away from this
event it will also be shown as semi-transparent) create an event and include
the follow tag in its name:
　　 <behind>
　* Event Behind Roof/Ceiling/Wall/Cliff (when BACK_SEEING = true)
When you need to create an event that rests behind a roof, cieling, wall,
cliff, etc, and is NOT shown as semi-transparent while near it, create an
event and include the follow tag in its name:
　　 <hidebehind>
=end
#==============================================================================
# * Customization
#==============================================================================
module Expansion_Passable
# * Cliff Type Maps
# In the following array, you may define what maps determined as "Cliff" maps.
# These allow for recognition of certain tiles to function differently. This
# is used to create a slope-like effect (different grass tile elevations)
# for some tiles without making it global across all maps. It's best to test
# this function out for yourself by testing it in the demo, then remove the
# 5 (by default) from the array and try it again.
# Note that since this is an array, it can contain multiple map IDs as such:
# CLIFF_MAP = [5, 6, 7, 12, 30]
CLIFF_MAP = [18]
# * True wall depth
# This allows you to specify whether the player can move down the full depth
# of the wall or only the first tile. For example, if set as true, and a wall
# is 3 tiles high + 1 tile for ceiling/roofing, then the player will be able
# to move all the way down to the base of the wall (down three tiles).
# It's easier just to test it both ways to understand.
# true : Wall depth and player moveability range is increased to wall scale.
# false : Wall depth and player moveability is fixed at 1 tile.
BACK_TILE_DEEP = false
# * Display of character behind cieling tiles
# This allows you to adjust whether the character is visible (semi-transparent)
# or not displayed at all when the character is behind a roof/ceiling tile.
# true : Characters are draw semi-transparent
# false : Characters are hidden
BACK_SEEING = true
# * Remove Shadow Tiles ID
# The "No Shadow" tile indicates a tile that removes and autoshadow tile that
# would normally be displayed on it. It is used for removing any awkward look
# that would normally be produced by creating special hills or cliffs.
# When not using this feature, set the value as nil.
SHADOW_ERASER_TILE_ID = 768
# * Prohibit Docking Tile ID
# The "No Docking" tile indicates a tile that does not allow for a vehicle to
# 'dock' at. It is used to determine features such as cliffs that the player
# should not be allowed to dock on, given it would have raised elevation.
# When not using this feature, set the value as nil.
PROHIBITED_GET_OFF_TILE_ID = 769
# * Walk Through Wall Tile ID
# The "Walk Through" tile indicates a tile that allows the player to walk
# through it, used specifically for segements where you allow the player to
# walk through a given wall.
# When not using this feature, set the value as nil.
ADDITION_BACK_TILE_ID = 770
# * Delete Background Tile ID
# The "No Background" tile indicates a tile that deletes the tile behind it.
# It is primarily used for determining roof/cieling tiles with the player
# cannot walk behind.
# When not using this feature, set the value as nil.
DELETE_BACK_TILE_ID = 771
REMOVE_TILE_MARKER = 783
end
#==============================================================================
# * Tile customization options (very advanced users only!)
#==============================================================================
module Data_Tile
# Ceiling, roof, & terrain tile feature setup
FUNCTION_TILE = [
2816, 2960, # Plains (field and outdoor)
3200, 3344, # Dry (field and outdoor)
3584, 3728, # Desert (field and outdoor)
3968, 4016, # Snow (field and outdoor)
4352, 4400, 4448, 4496, 4544, 4592, 4640, 4688, # Roof (1st Column)
4736, 4784, 4832, 4880, 4928, 4976, 5024, 5072, # Wall (1st Column)
5120, 5168, 5216, 5264, 5312, 5360, 5408, 5456, # Roof (2nd Column)
5504, 5552, 5600, 5648, 5696, 5744, 5792, 5840, # Wall (2nd Column)
5888, 5936, 5984, 6032, 6080, 6128, 6176, 6224, # Cave Ceiling (1st Column)
6272, 6320, 6368, 6416, 6464, 6512, 6560, 6608, # Cave Wall (1st Column)
6656, 6704, 6752, 6800, 6848, 6896, 6944, 6992, # Cave Ceiling (2nd Column)
7040, 7088, 7136, 7184, 7232, 7280, 7328, 7376, # Cave Wall (2nd Column)
7424, 7472, 7520, 7568, 7616, 7664, 7712, 7760, # Cave Ceiling (3rd Column)
7808, 7856, 7904, 7952, 8000, 8048, 8096, 8144, # Cave Wall (3rd Column)
1952, 2000] # Dummy TileIDs
# * Horizontal bridge TileIDs
BRIDRE_LENGTH = [17, 808, 810, 812]
# * Vertical bridge TileIDs
BRIDGE_BREADTH = [18, 19, 21, 23, 809, 811, 813]
# * TileIDs treated as entrances for stairs, ladders, and caves
# When the player is on one of these tiles, the passage settings are altered
# so that the player is constrainted within the tile's ideal passage.
STEP = [67, 68, 69, 70, 71, 172, 173, 174, 175,
260, 261, 262, 263, 268, 269, 270,
271, 278, 279, 284, 285, 286, 287,
612, 613, 616, 617, 618, 619,
1600, 1601, 1602, 1603, 1604, 1605, 1606, 1607,
1608, 1609, 1610, 1611, 1612, 1613, 1614, 1615]
# * TileID for passability determination under bridges
# The default of TileID 1664 is not visible within the editor and has no in-
# game image. If not necessary, please do not change this value.
UNDER_BRIDGE = 1664
end
#==============================================================================
# * Please do not change autotile setup
#==============================================================================
module Data_Auto_Tile
# Array for each direction in which the tiles have an edge (AutotileID)
# Floor type
VERGE_DOWN_A = [28, 29, 30, 31, 33, 38, 39, 40, 41, 43, 44, 45, 46]
VERGE_LEFT_A = [16, 17, 18, 19, 32, 34, 35, 40, 41, 42, 43, 44, 46]
VERGE_RIGHT_A = [24, 25, 26, 27, 32, 36, 37, 38, 39, 42, 44, 45, 46]
VERGE_UP_A = [20, 21, 22, 23, 33, 34, 35, 36, 37, 42, 43, 45, 46]
# Wall Type
VERGE_DOWN_B = [ 8, 9, 10, 11, 12, 13, 14, 15]
VERGE_LEFT_B = [ 1, 3, 5, 7, 9, 11, 13, 15]
VERGE_RIGHT_B = [ 4, 5, 6, 7, 12, 13, 14, 15]
VERGE_UP_B = [ 2, 3, 6, 7, 10, 11, 14, 15]
end
#==============================================================================
# ■ RPG::Area
#==============================================================================
class RPG::Area
#--------------------------------------------------------------------------
# ○ 公開インスタンス変数
#--------------------------------------------------------------------------
attr_accessor :ship_pass
end
#==============================================================================
# ■ Game_Map
#------------------------------------------------------------------------------
# 　マップを扱うクラスです。スクロールや通行可能判定などの機能を持っています。
# このクラスのインスタンスは $game_map で参照されます。
#==============================================================================
class Game_Map
#--------------------------------------------------------------------------
# ○ 公開インスタンス変数
#--------------------------------------------------------------------------
attr_reader :under_bridge_passages
attr_reader :back_tiles_position
attr_reader :keep_back_position
attr_reader :ex_data
attr_reader :prohibited_get_off
#--------------------------------------------------------------------------
# ◎ セットアップ
# map_id : マップ ID
#--------------------------------------------------------------------------
alias tig_ep_setup setup
def setup(map_id)
tig_ep_setup(map_id)
@ex_data = Table.new(width, height, 3)
@under_bridge_passages = {}
@back_tiles_position = []
@keep_back_position = []
prohibited_get_off_setup
setup_back_tiles
shadow_eraser_tile_setup
end
#--------------------------------------------------------------------------
# ○ 接岸禁止タイルのセットアップ
# map_id : マップ ID
#--------------------------------------------------------------------------
def prohibited_get_off_setup
@prohibited_get_off = []
return if Expansion_Passable::PROHIBITED_GET_OFF_TILE_ID == nil
for x in 0...width
for y in 0...height
if @map.data[x, y, 2] == Expansion_Passable::PROHIBITED_GET_OFF_TILE_ID
@map.data[x, y, 2] = 0
@prohibited_get_off.push([x, y])
end
end
end
end
#--------------------------------------------------------------------------
# ○ 影消しタイルのセットアップ
#--------------------------------------------------------------------------
def shadow_eraser_tile_setup
return if Expansion_Passable::SHADOW_ERASER_TILE_ID == nil
for x in 0...width
for y in 0...height
if @map.data[x, y, 2] == Expansion_Passable::SHADOW_ERASER_TILE_ID
r_x = round_x(x - 1)
tile_id = @map.data[r_x, y, 0]
if (4352...5888).include?(tile_id) or
(6272...6656).include?(tile_id) or
(7040...7424).include?(tile_id) or
(7808...8192).include?(tile_id)
dummy_tile_id = 2000 + auto_(tile_id)
else
dummy_tile_id = 1952 + auto_(tile_id)
end
@map.data[x, y, 2] = 0
@map.data[r_x, y, 1] = @map.data[r_x, y, 0]
@map.data[r_x, y, 0] = dummy_tile_id
end
end
end
end
#--------------------------------------------------------------------------
# ○ 指定座標のタイルIDの取得
#--------------------------------------------------------------------------
def point_tile_id(x, y)
return [data[x, y, 0], data[x, y, 1], data[x, y, 2]]
end
#--------------------------------------------------------------------------
# ○ オートタイルIDの取得（オートタイル郡の中で順番にIDをつけた独自のIDです）
#--------------------------------------------------------------------------
def auto_(tile_id)
return 0 unless (1952...8192).include?(tile_id)
return (tile_id - 1952) % 48
end
#--------------------------------------------------------------------------
# ○ トップタイルIDの取得（オートタイル郡の最初のID）
#--------------------------------------------------------------------------
def top_(tile_id)
return 0 if tile_id == nil
return (tile_id - auto_(tile_id))
end
#--------------------------------------------------------------------------
# ○ スクリプト機能を使用する屋根・天井・壁タイルか？
#--------------------------------------------------------------------------
def ceiling?(tile_id)
return false unless Data_Tile::FUNCTION_TILE.include?(top_(tile_id))
return true if wall?(tile_id)
return true if (1952...2048).include?(tile_id)
return true if (4352...4736).include?(tile_id)
return true if (5120...5504).include?(tile_id)
return true if (5888...6272).include?(tile_id)
return true if (6656...7040).include?(tile_id)
return (7424...7808).include?(tile_id)
end
#--------------------------------------------------------------------------
# ○ スクリプト機能を使用する壁タイルか？
#--------------------------------------------------------------------------
def wall?(tile_id)
return false unless Data_Tile::FUNCTION_TILE.include?(top_(tile_id))
return true if (4736...5120).include?(tile_id)
return true if (5504...5888).include?(tile_id)
return true if (6272...6656).include?(tile_id)
return true if (7040...7424).include?(tile_id)
return (7808...8192).include?(tile_id)
end
#--------------------------------------------------------------------------
# ○ スクリプト機能を使用する地形タイルか？
#--------------------------------------------------------------------------
def cliff?(tile_id)
return false unless Data_Tile::FUNCTION_TILE.include?(top_(tile_id))
return [2816, 3200, 3584, 2960, 3344, 3728, 4112].include?(top_(tile_id))
end
#--------------------------------------------------------------------------
# ○ 指定の向きにオートタイルチップの境目があるか？
#--------------------------------------------------------------------------
def verge?(tile_id, direction)
auto_tile_id = auto_(tile_id)
return false if auto_tile_id == 0
return false unless ceiling?(tile_id) or cliff?(tile_id)
if (2000...2048).include?(tile_id) or
(4352...5888).include?(tile_id) or
(6272...6656).include?(tile_id) or
(7040...7424).include?(tile_id) or
(7808...8192).include?(tile_id) # オートタイルの線画タイプ判別
case direction # 壁タイプの場合　方向ごとに振り分け
when 2 ; return true if Data_Auto_Tile::VERGE_DOWN_B.include?(auto_tile_id)
when 4 ; return true if Data_Auto_Tile::VERGE_LEFT_B.include?(auto_tile_id)
when 6 ; return true if Data_Auto_Tile::VERGE_RIGHT_B.include?(auto_tile_id)
when 8 ; return true if Data_Auto_Tile::VERGE_UP_B.include?(auto_tile_id)
end
else
case direction # 床タイプの場合　方向ごとに振り分け
when 2 ; return true if Data_Auto_Tile::VERGE_DOWN_A.include?(auto_tile_id)
when 4 ; return true if Data_Auto_Tile::VERGE_LEFT_A.include?(auto_tile_id)
when 6 ; return true if Data_Auto_Tile::VERGE_RIGHT_A.include?(auto_tile_id)
when 8 ; return true if Data_Auto_Tile::VERGE_UP_A.include?(auto_tile_id)
end
end
end
#--------------------------------------------------------------------------
# ○ 指定の向きに通行不可の境目があるか？
#--------------------------------------------------------------------------
def rip?(tile_id, front_tile_id, direction)
if Data_Tile::BRIDRE_LENGTH.include?(tile_id[2])
return true if direction == 4 or direction == 6
elsif Data_Tile::BRIDGE_BREADTH.include?(tile_id[2])
return true if direction == 2 or direction == 8
end
if cliff?(tile_id[0])
return false unless ceiling?(front_tile_id[0]) or cliff?(front_tile_id[0])
if cliff?(front_tile_id[0]) and verge?(front_tile_id[0], 10 - direction)
return false
end
end
return verge?(tile_id[0], direction)
end
#--------------------------------------------------------------------------
# ○ 指定の向きに準じた橋タイルか？（渡ることの出来る向きか）
#--------------------------------------------------------------------------
def bridge?(tile_id, direction)
if direction == 2 or direction == 8
return true if Data_Tile::BRIDRE_LENGTH.include?(tile_id)
elsif direction == 4 or direction == 6
return true if Data_Tile::BRIDGE_BREADTH.include?(tile_id)
end
return false
end
#--------------------------------------------------------------------------
# ○ <船の橋下通過>処理をするエリアか？
#--------------------------------------------------------------------------
def ship_pass_area?(x, y)
result = false
for area in $data_areas.values
next if area == nil
next unless area.ship_pass
next if $game_map.map_id != area.map_id
next if x < area.rect.x
next if y < area.rect.y
next if x >= area.rect.x + area.rect.width
next if y >= area.rect.y + area.rect.height
result = true
end
return result
end
#--------------------------------------------------------------------------
# ○ 裏回り用タイル存在座標ピックアップと通行判定初期化
#--------------------------------------------------------------------------
def setup_back_tiles
for i in 4352...8192
@passages[i] = 0x00 if ceiling?(i) # 天井タイルの通行判定を○に
end
back_tiles = [] # 裏回りタイル郡の生成
for i in 2816...8192
next unless ceiling?(i) or cliff?(i)
next if wall?(i)
next unless verge?(i, 8)
if cliff?(i)
next unless Expansion_Passable::CLIFF_MAP.include?(@map_id)
end
back_tiles.push(i)
end
for i in (Data_Tile::BRIDRE_LENGTH + Data_Tile::BRIDGE_BREADTH)
@passages[i] = 0x10 # 橋タイル通行判定を☆に
end
@passages[Data_Tile::UNDER_BRIDGE] = 0x00 # 橋下用タイルの通行判定を○に
for x in 0...width
for reverse_y in 1..height
y = height - reverse_y
tile_id = point_tile_id(x, y)
if (Data_Tile::BRIDRE_LENGTH + Data_Tile::BRIDGE_BREADTH).include?(tile_id[2])
@back_tiles_position.push([x, y])
if (2048...2815).include?(tile_id[0])
@map.data[x, y, 1] = Data_Tile::UNDER_BRIDGE
if ship_pass_area?(x, y)
@under_bridge_passages[[x, y]] = 1
else
@under_bridge_passages[[x, y]] = 0
end
elsif @passages[tile_id[0]] != 0x06
@map.data[x, y, 1] = Data_Tile::UNDER_BRIDGE
@under_bridge_passages[[x, y]] = -1
end
if @under_bridge_passages[[x, y]] != 0 and Data_Tile::BRIDGE_BREADTH.include?(tile_id[2])
@keep_back_position.push([x, round_y(y+1)])
end
elsif tile_id[2] != 0 and @passages[tile_id[2]] & 0x10 == 0x10
if @back_tiles_position.include?([x, round_y(y+1)])
@keep_back_position.push([x, y])
else
@ex_data[x, y, 2] = @map.data[x, y, 2]
end
end
if (2816...8192).include?(tile_id[0])
if back_tiles.include?(tile_id[0])
@back_tiles_position.push([x, y])
@ex_data[x, y, 0] = @map.data[x, y, 0]
@ex_data[x, y, 1] = @map.data[x, y, 1]
if tile_id[2] != Expansion_Passable::ADDITION_BACK_TILE_ID
@ex_data[x, y, 2] = @map.data[x, y, 2]
end
@map.data[x, y, 1] = 0
@map.data[x, y, 2] = 0
if Expansion_Passable::BACK_TILE_DEEP
unless @back_tiles_position.include?([x, round_y(y+1)])
unless wall?(data[x, round_y(y+1), 0]) and
verge?(data[x, round_y(y+1), 0], 2)
@back_tiles_position.push([x, round_y(y+1)])
@ex_data[x, round_y(y+1), 0] = @map.data[x, round_y(y+1), 0]
@ex_data[x, round_y(y+1), 1] = @map.data[x, round_y(y+1), 1]
@ex_data[x, round_y(y+1), 2] = @map.data[x, round_y(y+1), 2]
@map.data[x, round_y(y+1), 1] = 0
@map.data[x, round_y(y+1), 2] = 0
end
end
end
elsif Expansion_Passable::ADDITION_BACK_TILE_ID != nil and
tile_id[2] == Expansion_Passable::ADDITION_BACK_TILE_ID
@back_tiles_position.push([x, y])
@ex_data[x, y, 0] = @map.data[x, y, 0]
@ex_data[x, y, 1] = @map.data[x, y, 1]
@map.data[x, y, 1] = 0
@map.data[x, y, 2] = 0
if (2816...8192).include?(@map.data[x, round_y(y-1), 0])
@ex_data[x, round_y(y-1), 0] = @map.data[x, round_y(y-1), 0]
@ex_data[x, round_y(y-1), 1] = @map.data[x, round_y(y-1), 1]
end
end
end
end
end
if Expansion_Passable::DELETE_BACK_TILE_ID != nil
for x in 0...width
for y in 0...height
if @ex_data[x, y, 2] == Expansion_Passable::DELETE_BACK_TILE_ID
@back_tiles_position.delete([x, y])
@ex_data[x, y, 2] = 0
elsif @map.data[x, y, 2] == Expansion_Passable::DELETE_BACK_TILE_ID
@map.data[x, y, 2] = 0
end
end
end
end
end
#--------------------------------------------------------------------------
# ○ 裏回り用タイルの存在する座標か？
#--------------------------------------------------------------------------
def back_tile?(x, y)
return false if @back_tiles_position == nil
return @back_tiles_position.include?([x, y])
end
end
#==============================================================================
# ■ Game_Character
#------------------------------------------------------------------------------
# 　キャラクターを扱うクラスです。このクラスは Game_Player クラスと Game_Event
# クラスのスーパークラスとして使用されます。
#==============================================================================
class Game_Character
#--------------------------------------------------------------------------
# ○ 公開インスタンス変数
#--------------------------------------------------------------------------
attr_reader :on_tile
attr_reader :turn_back
attr_accessor :no_turn_back
attr_reader :not_back_seeing
#--------------------------------------------------------------------------
# ◎ オブジェクト初期化
#--------------------------------------------------------------------------
alias tig_ep_initialize initialize
def initialize
tig_ep_initialize
@vehicle_type = -1
@turn_back = false
@no_turn_back = false
@on_tile = true
@back_seeing = false
@not_back_seeing = false
end
#--------------------------------------------------------------------------
# ◎ フレーム更新
#--------------------------------------------------------------------------
alias tig_ep_update update
def update
if @first_update == nil
update_turn_back
@first_update = true
end
tig_ep_update
end
#--------------------------------------------------------------------------
# ◎ 茂み深さの更新
#--------------------------------------------------------------------------
alias tig_ep_update_bush_depth update_bush_depth
def update_bush_depth
update_turn_back
tig_ep_update_bush_depth
end
#--------------------------------------------------------------------------
# ○ 裏回り状態更新
#--------------------------------------------------------------------------
def update_turn_back
unless @real_x == @x * 256 and @real_y == @y * 256
@back_seeing = false
@on_tile = false if @turn_back
else
@turn_back = false if @no_turn_back
unless $game_map.back_tile?(@x, @y)
@turn_back = false
@no_turn_back = false
end
@on_tile = true unless @turn_back
end
if not @turn_back or @no_turn_back
if $game_map.keep_back_position != nil and $game_map.keep_back_position.include?([@x, @y])
@on_tile = false
return
end
end
end
#--------------------------------------------------------------------------
# ○ 段差マップ用・拡張通過判定
#--------------------------------------------------------------------------
def ex_passable(direction, test = false)
front_x = $game_map.x_with_direction(@x, direction)
front_y = $game_map.y_with_direction(@y, direction)
tile_id = $game_map.point_tile_id(@x, @y)
front_tile_id = $game_map.point_tile_id(front_x, front_y)
if Data_Tile::STEP.include?(front_tile_id[0]) or
Data_Tile::STEP.include?(front_tile_id[2])
return true
else
unless $game_map.wall?(front_tile_id[0])
return true if Data_Tile::STEP.include?(tile_id[0])
return true if Data_Tile::STEP.include?(tile_id[2])
end
end
if $game_map.back_tiles_position.include?([@x, @y]) and @turn_back # この場が裏
if $game_map.under_bridge_passages.key?([front_x, front_y])
if (@vehicle_type == -1 and $game_map.under_bridge_passages[[front_x, front_y]] == 1) or
$game_map.under_bridge_passages[[front_x, front_y]] <= 0
return false unless debug_through? or @through
end
end
if $game_map.back_tiles_position.include?([front_x, front_y]) # 目の前が裏
return true
else # 目の前が裏でない
if $game_map.rip?(tile_id, front_tile_id, direction) # この場に境目がある
if $game_map.rip?(front_tile_id, tile_id, 10 - direction) # 目の前に境目がある
return false unless debug_through? or @through # 通行不可
else
return true
end
else # この場に境目がない
return false unless debug_through? or @through # 通行不可
end
end
else # この場は裏でない
unless $game_map.bridge?(front_tile_id[2], direction) or # 橋がなければ
$game_map.bridge?(tile_id[2], direction)
if $game_map.rip?(tile_id, front_tile_id, direction) # この場に境目がある
return false unless debug_through? or @through # 通行不可
else # この場に境目がない
if $game_map.rip?(front_tile_id, tile_id, 10 - direction) # 目の前に境目がある
if $game_map.back_tiles_position.include?([front_x, front_y]) # 目の前が裏タイル
unless $game_map.bridge?(tile_id[2], direction) # この場が橋でなければ
if $game_map.under_bridge_passages.key?([front_x, front_y])
if (@vehicle_type == -1 and $game_map.under_bridge_passages[[front_x, front_y]] == 1) or
$game_map.under_bridge_passages[[front_x, front_y]] <= 0
return false unless debug_through? or @through
end
end
unless @no_turn_back
@turn_back = true unless test # 裏回り開始
@back_seeing = true
end
end
else # 目の前が裏タイルでない
unless $game_map.bridge?(tile_id[2], direction) # この場が橋でなければ
return false unless debug_through? or @through # 通行不可
end
end
else # 目の前に境目がない
if $game_map.wall?(front_tile_id[0])
return false unless debug_through? or @through # 通行不可
end
end
end
end
end
if $game_map.back_tile?(front_x, front_y) and not @turn_back
for i in [2, 1, 0] # レイヤーの上から順に調べる
tile_id = $game_map.ex_data[front_x, front_y, i] # タイル ID を取得
unless tile_id == nil
pass = $game_map.passages[tile_id] # 通行属性を取得
next if pass & 0x10 == 0x10 # [☆] : 通行に影響しない
next if pass & 0x01 == 0x00 # [○] : 通行可
if pass & 0x01 == 0x01 # [×] : 通行不可
return false unless debug_through? or @through
end
end
end
end
return true
end
#--------------------------------------------------------------------------
# ◎ 下に移動
# turn_ok : その場での向き変更を許可
#--------------------------------------------------------------------------
alias tig_ep_move_down move_down
def move_down(turn_ok = true)
last_turn_back = @turn_back
unless ex_passable(2)
turn_down if turn_ok
@move_failed = true
check_event_trigger_touch(@x, @y+1) # 接触イベントの起動判定
return
end
tig_ep_move_down(turn_ok)
if @move_failed and @turn_back and not last_turn_back
@turn_back = false
end
end
#--------------------------------------------------------------------------
# ◎ 左に移動
# turn_ok : その場での向き変更を許可
#--------------------------------------------------------------------------
alias tig_ep_move_left move_left
def move_left(turn_ok = true)
last_turn_back = @turn_back
unless ex_passable(4)
turn_left if turn_ok
@move_failed = true
check_event_trigger_touch(@x-1, @y) # 接触イベントの起動判定
return
end
tig_ep_move_left(turn_ok)
if @move_failed and @turn_back and not last_turn_back
@turn_back = false
end
end
#--------------------------------------------------------------------------
# ◎ 右に移動
# turn_ok : その場での向き変更を許可
#--------------------------------------------------------------------------
alias tig_ep_move_right move_right
def move_right(turn_ok = true)
last_turn_back = @turn_back
unless ex_passable(6)
turn_right if turn_ok
check_event_trigger_touch(@x+1, @y) # 接触イベントの起動判定
@move_failed = true
return
end
tig_ep_move_right(turn_ok)
if @move_failed and @turn_back and not last_turn_back
@turn_back = false
end
end
#--------------------------------------------------------------------------
# ◎ 上に移動
# turn_ok : その場での向き変更を許可
#--------------------------------------------------------------------------
alias tig_ep_move_up move_up
def move_up(turn_ok = true)
last_turn_back = @turn_back
unless ex_passable(8)
turn_up if turn_ok
check_event_trigger_touch(@x, @y-1) # 接触イベントの起動判定
@move_failed = true
return
end
tig_ep_move_up(turn_ok)
if @move_failed and @turn_back and not last_turn_back
@turn_back = false
end
end
#--------------------------------------------------------------------------
# ● キャラクター衝突判定
# x : X 座標
# y : Y 座標
# プレイヤーと乗り物を含め、通常キャラの衝突を検出する。
#--------------------------------------------------------------------------
def collide_with_characters?(x, y)
for event in $game_map.events_xy(x, y) # イベントの座標と一致
next unless parallel?(event) ##### 追加部分 (この行) #####
unless event.through # すり抜け OFF？
return true if self.is_a?(Game_Event) # 自分がイベント
return true if event.priority_type == 1 # 相手が通常キャラ
end
end
if @priority_type == 1 # 自分が通常キャラ
return true if $game_player.pos_nt?(x, y) # プレイヤーの座標と一致
return true if $game_map.boat.pos_nt?(x, y) # 小型船の座標と一致
return true if $game_map.ship.pos_nt?(x, y) # 大型船の座標と一致
end
return false
end
#--------------------------------------------------------------------------
# ○ キャラクターの同軸存在判定
#--------------------------------------------------------------------------
def parallel?(event)
if @x == event.x
if @y < event.y
direction = 2
elsif @y > event.y
direction = 8
end
elsif @y = event.y
if @x < event.x
direction = 6
elsif @x > event.x
direction = 4
end
end
return @turn_back == event.turn_back if direction == nil
last_turn_back = @turn_back
passable = ex_passable(direction)
tile_id = $game_map.data[event.x, event.y, 0]
unless $game_map.wall?(tile_id)
return false unless passable
end
if last_turn_back != @turn_back
@turn_back = last_turn_back
return @turn_back != event.turn_back
else
return true unless $game_map.back_tile?(event.x, event.y)
return @turn_back == event.turn_back
end
end
end
#==============================================================================
# ■ Game_Event
#------------------------------------------------------------------------------
# 　イベントを扱うクラスです。条件判定によるイベントページ切り替えや、並列処理
# イベント実行などの機能を持っており、Game_Map クラスの内部で使用されます。
#==============================================================================
class Game_Event < Game_Character
#--------------------------------------------------------------------------
# ◎ オブジェクト初期化
# map_id : マップ ID
# event : イベント (RPG::Event)
#--------------------------------------------------------------------------
alias tig_ep_event_initialize initialize
def initialize(map_id, event)
tig_ep_event_initialize(map_id, event)
set_turn_back_setting
end
#--------------------------------------------------------------------------
# ○ Get Initial Arrangement Position (Place behind)
#--------------------------------------------------------------------------
def set_turn_back_setting
@event.name = @event.name.sub(/[\<＜]behind[\>＞]/, "")
@turn_back = $& != nil
@on_tile = $& == nil
@event.name = @event.name.sub(/[\<＜]hidebehind[\>＞]/, "")
@not_back_seeing = $& != nil
end
end
#==============================================================================
# ** Game_Vehicle
#------------------------------------------------------------------------------
# 　乗り物を扱うクラスです。このクラスは Game_Map クラスの内部で使用されます。
# 現在のマップに乗り物がないときは、マップ座標 (-1,-1) に設定されます。
#==============================================================================
class Game_Vehicle < Game_Character
def on_tile
if @driving
return $game_player.on_tile
else
return @on_tile
end
end
end
#==============================================================================
# ** Game_Player
#------------------------------------------------------------------------------
# 　プレイヤーを扱うクラスです。イベントの起動判定や、マップのスクロールなどの
# 機能を持っています。このクラスのインスタンスは $game_player で参照されます。
#==============================================================================
class Game_Player < Game_Character
#--------------------------------------------------------------------------
# ○ 裏配置イベント透過状態か？
#--------------------------------------------------------------------------
def back_seeing?
return true if @turn_back or @back_seeing
return false
end
#--------------------------------------------------------------------------
# ● 同位置のイベント起動判定
# triggers : トリガーの配列
#--------------------------------------------------------------------------
def check_event_trigger_here(triggers)
return false if $game_map.interpreter.running?
result = false
for event in $game_map.events_xy(@x, @y)
next unless parallel?(event) ##### 追加部分 (この行) #####
if triggers.include?(event.trigger) and event.priority_type != 1
event.start
result = true if event.starting
end
end
return result
end
#--------------------------------------------------------------------------
# ● 正面のイベント起動判定
# triggers : トリガーの配列
#--------------------------------------------------------------------------
def check_event_trigger_there(triggers)
return false if $game_map.interpreter.running?
result = false
front_x = $game_map.x_with_direction(@x, @direction)
front_y = $game_map.y_with_direction(@y, @direction)
for event in $game_map.events_xy(front_x, front_y)
next unless parallel?(event) ##### 追加部分 (この行) #####
if triggers.include?(event.trigger) and event.priority_type == 1
event.start
result = true
end
end
if result == false and $game_map.counter?(front_x, front_y)
front_x = $game_map.x_with_direction(front_x, @direction)
front_y = $game_map.y_with_direction(front_y, @direction)
for event in $game_map.events_xy(front_x, front_y)
next unless parallel?(event) ##### 追加部分 (この行) #####
if triggers.include?(event.trigger) and event.priority_type == 1
event.start
result = true
end
end
end
return result
end
#--------------------------------------------------------------------------
# ◎ 乗り物から降りる
# 現在乗り物に乗っていることが前提。
#--------------------------------------------------------------------------
alias tig_ep_get_off_vehicle get_off_vehicle
def get_off_vehicle
return if $game_map.back_tile?(@x, @y)
if @vehicle_type == 0 or @vehicle_type == 1
front_x = $game_map.x_with_direction(@x, @direction)
front_y = $game_map.y_with_direction(@y, @direction)
return if $game_map.under_bridge_passages[[front_x, front_y]] == 1
return if $game_map.prohibited_get_off.include?([front_x, front_y])
@no_turn_back = true
end
tig_ep_get_off_vehicle
end
end
#==============================================================================
# ** Spriteset_Map
#------------------------------------------------------------------------------
# 　マップ画面のスプライトやタイルマップなどをまとめたクラスです。このクラスは
# Scene_Map クラスの内部で使用されます。
#==============================================================================
class Spriteset_Map
#--------------------------------------------------------------------------
# ◎ ビューポートの作成
#--------------------------------------------------------------------------
alias tig_ep_create_viewports create_viewports
def create_viewports
tig_ep_create_viewports
@viewport4 = Viewport.new(0, 0, 544, 416) # 追加レイヤー�"��"ューポート
if Expansion_Passable::BACK_SEEING
@viewport5 = Viewport.new(0, 0, 544, 416) # 裏回りキャラ透過�"��"ューポート
end
@viewport6 = Viewport.new(0, 0, 544, 416) # 色調変更�"��"ューポート
end
#--------------------------------------------------------------------------
# ◎ タイルマップの作成
#--------------------------------------------------------------------------
alias tig_ep_create_tilemap create_tilemap
def create_tilemap
tig_ep_create_tilemap
setup_shadow_eraser_tilemap
@ex_tilemap = Tilemap.new(@viewport4)
@ex_tilemap.bitmaps[0] = Cache.system("TileA1")
@ex_tilemap.bitmaps[1] = Cache.system("TileA2")
@ex_tilemap.bitmaps[2] = Cache.system("TileA3")
@ex_tilemap.bitmaps[3] = Cache.system("TileA4")
@ex_tilemap.bitmaps[4] = Cache.system("TileA5")
@ex_tilemap.bitmaps[5] = Cache.system("TileB")
@ex_tilemap.bitmaps[6] = Cache.system("TileC")
@ex_tilemap.bitmaps[7] = Cache.system("TileD")
@ex_tilemap.bitmaps[8] = Cache.system("TileE")
@ex_tilemap.map_data = $game_map.ex_data
@ex_tilemap.passages = $game_map.passages
end
#--------------------------------------------------------------------------
# ○ 影消し処理用タイルの準備
#--------------------------------------------------------------------------
def setup_shadow_eraser_tilemap
for i in 1952...2048
@tilemap.passages[i] = 0x00
end
end
#--------------------------------------------------------------------------
# ◎ 飛行船の影スプライトの作成
#--------------------------------------------------------------------------
alias tig_ep_create_shadow create_shadow
def create_shadow
tig_ep_create_shadow
@shadow_sprite.viewport = @viewport4
end
#--------------------------------------------------------------------------
# ◎ タイルマップの解放
#--------------------------------------------------------------------------
alias tig_ep_dispose_tilemap dispose_tilemap
def dispose_tilemap
tig_ep_dispose_tilemap
@ex_tilemap.dispose
end
#--------------------------------------------------------------------------
# ◎ ビューポートの解放
#--------------------------------------------------------------------------
alias tig_ep_dispose_viewports dispose_viewports
def dispose_viewports
tig_ep_dispose_viewports
@viewport4.dispose
@viewport5.dispose if Expansion_Passable::BACK_SEEING
@viewport6.dispose
end
#--------------------------------------------------------------------------
# ◎ タイルマップの更新
#--------------------------------------------------------------------------
alias tig_ep_update_tilemap update_tilemap
def update_tilemap
tig_ep_update_tilemap
@ex_tilemap.ox = $game_map.display_x / 8
@ex_tilemap.oy = $game_map.display_y / 8
@ex_tilemap.update
end
#--------------------------------------------------------------------------
# ◎ キャラクタースプライトの更新
#--------------------------------------------------------------------------
alias tig_ep_update_characters update_characters
def update_characters
back_seeing_characters = []
for sprite in @character_sprites
next if sprite.character.not_back_seeing
if $game_player.back_seeing? and Expansion_Passable::BACK_SEEING
x = $game_player.x ; y = $game_player.y
if ($game_map.round_x(x-2)..$game_map.round_x(x+2)).include?(sprite.character.x) and
($game_map.round_y(y-2)..$game_map.round_y(y+2)).include?(sprite.character.y)
back_seeing_characters.push(sprite.character)
end
end
if sprite.character.on_tile
sprite.viewport = @viewport4
else
sprite.viewport = @viewport1
end
end
back_seeing(back_seeing_characters)
tig_ep_update_characters
end
#--------------------------------------------------------------------------
# ○ 裏回りキャラ透過
#--------------------------------------------------------------------------
def back_seeing(characters)
return unless Expansion_Passable::BACK_SEEING
@back_seeing_sprites = [] if @back_seeing_sprites == nil
@characters = [] if @characters == nil
now_character = []
for character in characters
now_character.push(character)
unless @characters.include?(character)
new_sprite = Sprite_Character.new(@viewport5, character)
new_sprite.back_seeing = true
@back_seeing_sprites.push(new_sprite)
@characters.push(new_sprite.character)
end
end
for sprite in @back_seeing_sprites
if now_character.include?(sprite.character)
sprite.update
else
@characters.delete(sprite.character)
sprite.dispose
@back_seeing_sprites.delete(sprite)
end
end
end
#--------------------------------------------------------------------------
# ● ビューポートの更新
#--------------------------------------------------------------------------
def update_viewports
@viewport6.tone = $game_map.screen.tone ##### 修正部分 (この行) #####
@viewport1.ox = $game_map.screen.shake
@viewport4.ox = $game_map.screen.shake ### 追加部分 (この行から) ###
if Expansion_Passable::BACK_SEEING
@viewport5.rect.set($game_player.screen_x - 48, $game_player.screen_y - 64, 96, 96)
@viewport5.ox = $game_map.screen.shake
end ### 追加部分 (ここ行まで) ###
@viewport2.color = $game_map.screen.flash_color
@viewport3.color.set(0, 0, 0, 255 - $game_map.screen.brightness)
@viewport1.update
@viewport2.update
@viewport3.update
@viewport4.update ### 追加部分 (この行から) ###
@viewport5.update if Expansion_Passable::BACK_SEEING
@viewport6.update ### 追加部分 (ここ行まで) ###
end
end
#==============================================================================
# ** Sprite_Character
#------------------------------------------------------------------------------
# 　キャラクター表示用のスプライトです。Game_Character クラスのインスタンスを
# 監視し、スプライトの状態を自動的に変化させます。
#==============================================================================
class Sprite_Character < Sprite_Base
#--------------------------------------------------------------------------
# ○ 公開インスタンス変数
#--------------------------------------------------------------------------
attr_accessor :back_seeing
#--------------------------------------------------------------------------
# ◎ オブジェクト初期化
# viewport : ビューポート
# character : キャラクター (Game_Character)
#--------------------------------------------------------------------------
alias tig_ep_initialize initialize
def initialize(viewport, character = nil)
tig_ep_initialize(viewport, character)
@back_seeing = false
end
#--------------------------------------------------------------------------
# ◎ フレーム更新
#--------------------------------------------------------------------------
alias tig_ep_update update
def update
tig_ep_update
if @back_seeing
self.opacity = 40 if self.opacity > 100
self.x -= $game_player.screen_x - 48
self.y -= $game_player.screen_y - 64
end
end
end
#==============================================================================
# ** Scene_Title
#------------------------------------------------------------------------------
# 　タイトル画面の処理を行うクラスです。
#==============================================================================
class Scene_Title < Scene_Base
#--------------------------------------------------------------------------
# ◎ データベースのロード
# name から<船の橋下通過>の設定を得ます。
#--------------------------------------------------------------------------
alias tig_ep_load_database load_database
def load_database
tig_ep_load_database
for area in $data_areas.values
area.name = area.name.sub(/[\<＜]bridge[\>＞]/, "") # adjust area name
area.ship_pass = $& != nil # set ship passability
end
end
end

复制代码

876加几 · 发表于 2013-6-30 18:58:50

顶一个，但是我总是觉得栏杆变成的草地不能通行，草地变成的栏杆可以通行……

帐号		自动登录	找回密码
密码			注册会员

[RMVX发布] VX图块扩充简易方法

加入我们，或者，欢迎回来。

评分

点评

点评

点评

点评

浏览过的版块

[RMVX发布] VX图块扩充 简易方法

加入我们，或者，欢迎回来。

评分

点评

点评

点评

点评

浏览过的版块

[RMVX发布] VX图块扩充简易方法
