RMXP-地图教程ChapterⅩ-光影篇

进击の虎叔 · 发表于 2017-9-9 17:29:02

加入我们，或者，欢迎回来。

您需要登录才可以下载或查看，没有账号？注册会员

×

本帖最后由进击の虎叔于 2017-9-9 17:39 编辑


当今，「光影」一词已经不再陌生，层出不穷的各类游戏的光影渲染确实给画面带来很大的改观。
当然对于环境的塑造、气氛的烘托，同样是不可缺少的一个关键元素。
个人对这个概念的研究其实毫无头绪，先前还是主要把精力放在怎么把画面和光影结合起来... ...
也就是说只看重过程和结果，当然收获还是有的。
趁这个机会，最后分享一下自己的心得。

P.S. 教程算上这个算是只有三期（主要太懒...加上自己某些主题的地图也是苦手），也没什么技术含量...请多多包涵> <...

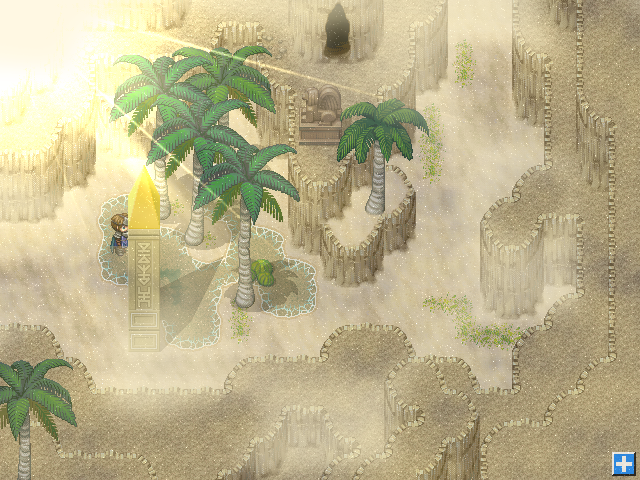

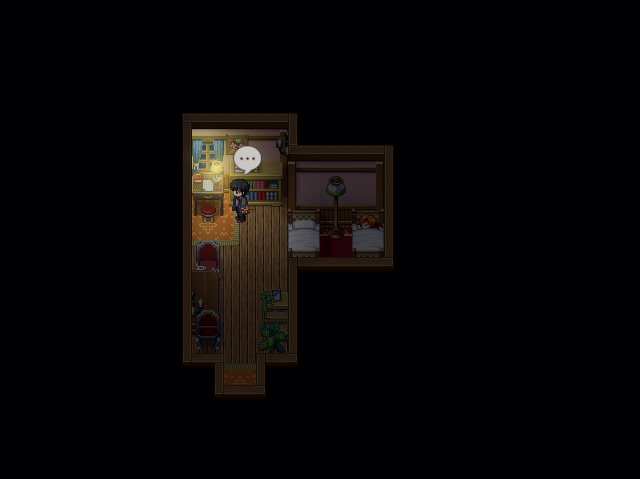

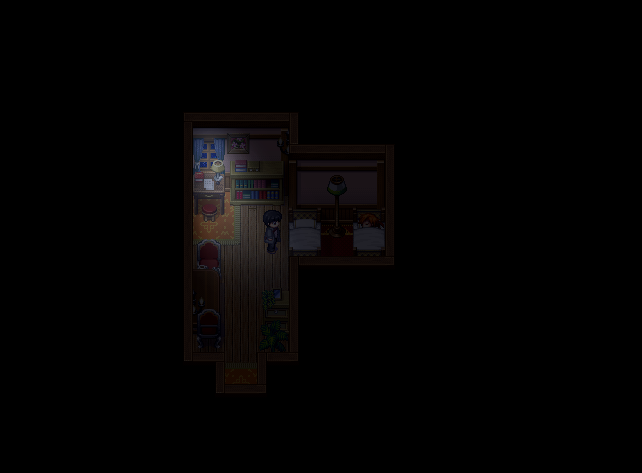

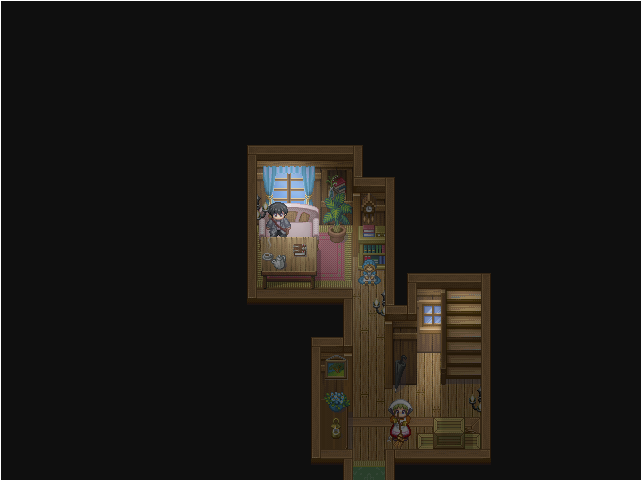

演示的地图为室内房间。室外参考室内的做法，其实室外主要用现成的雾图形（线性光）/更改画面色调基本可以得到
可观的画面。

【需要材料/软件】
① RPG Maker XP（需要「航拍」脚本）

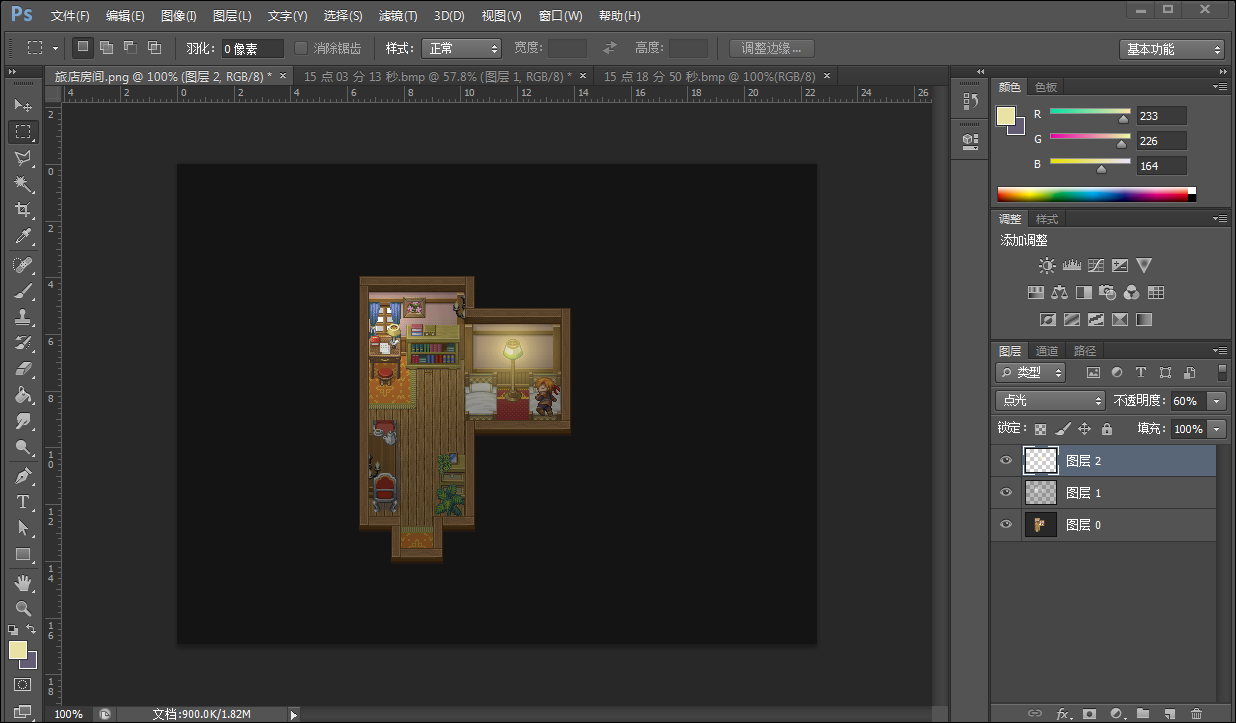

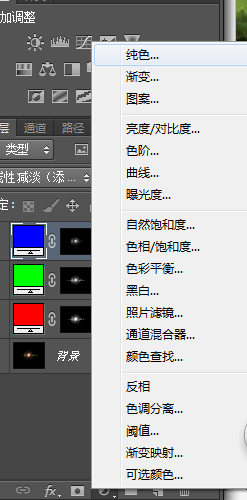

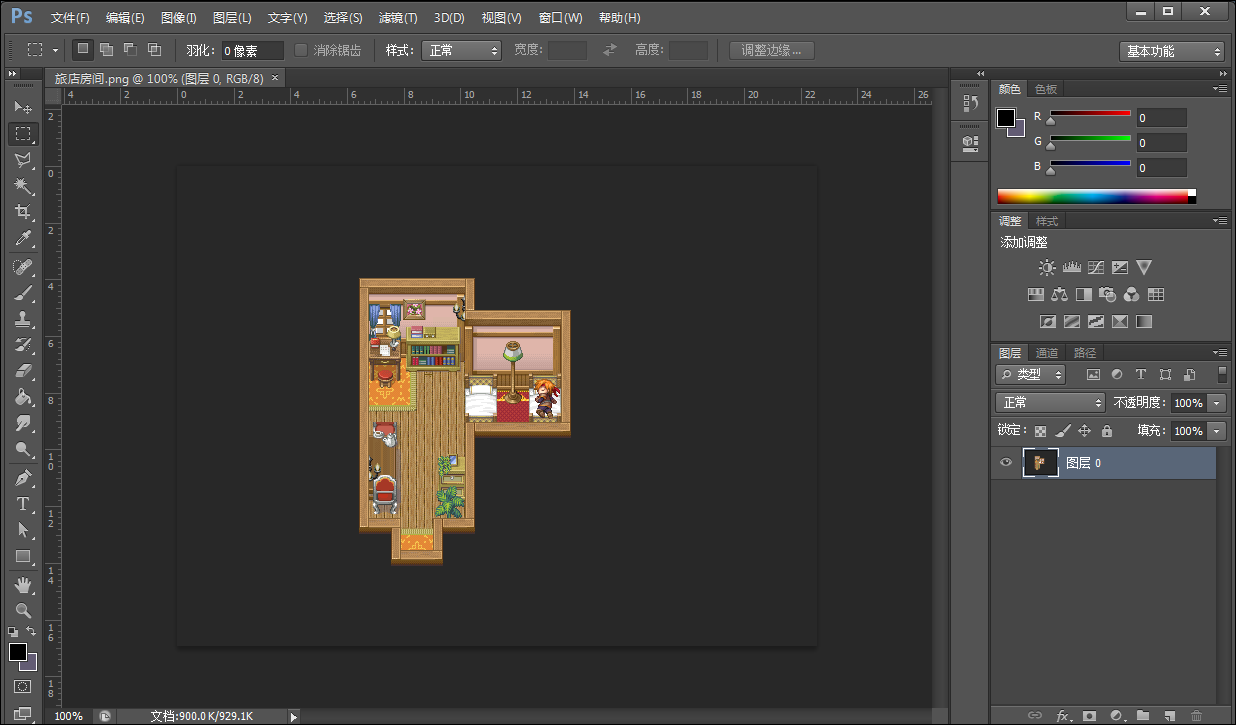

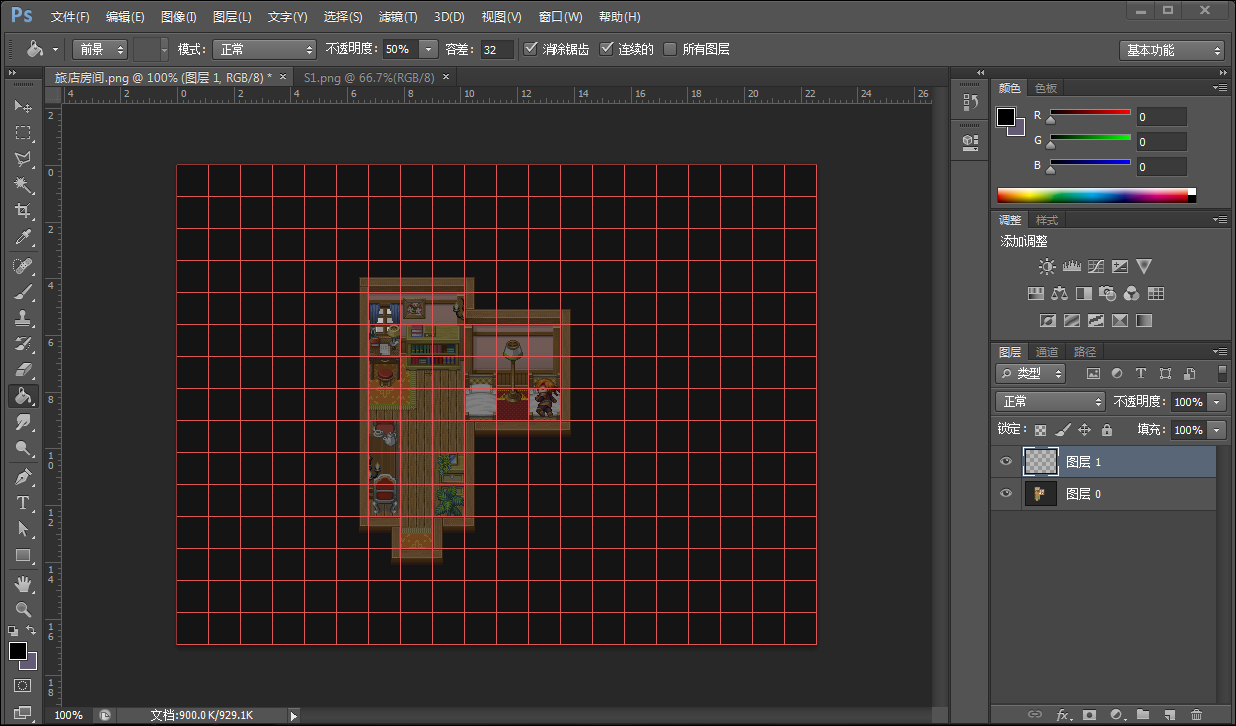

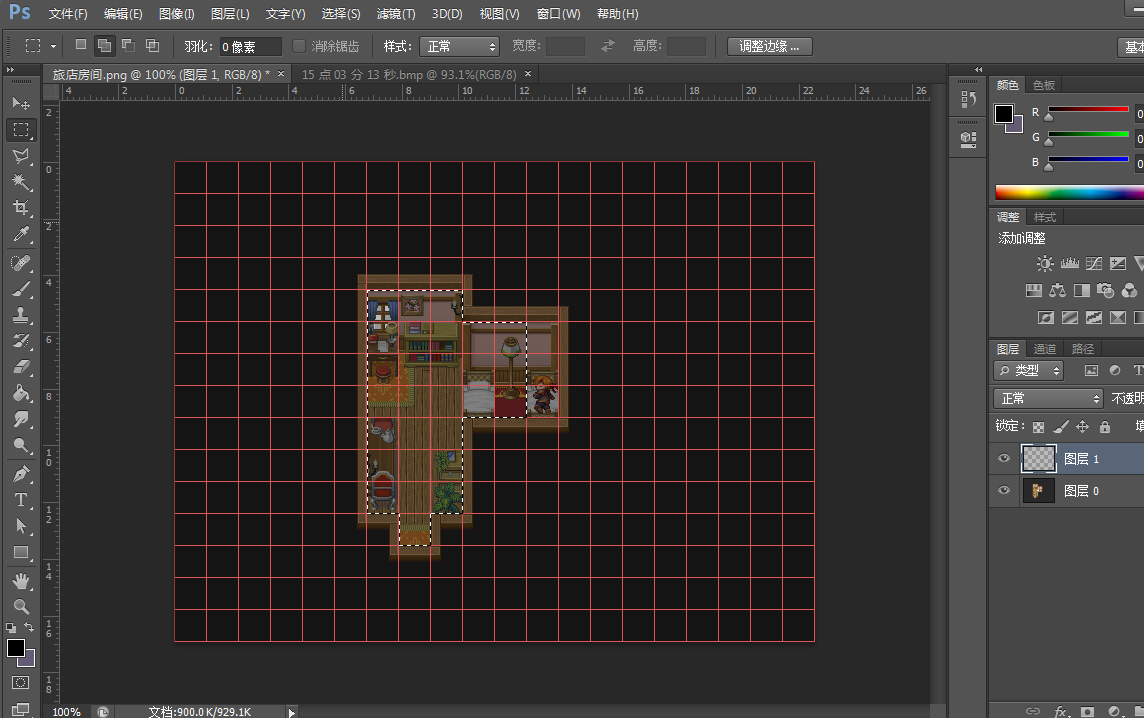

② Adobe Photoshop CS4及以上（不会太要求复杂的操作...其实新加的功能都还没用过...）

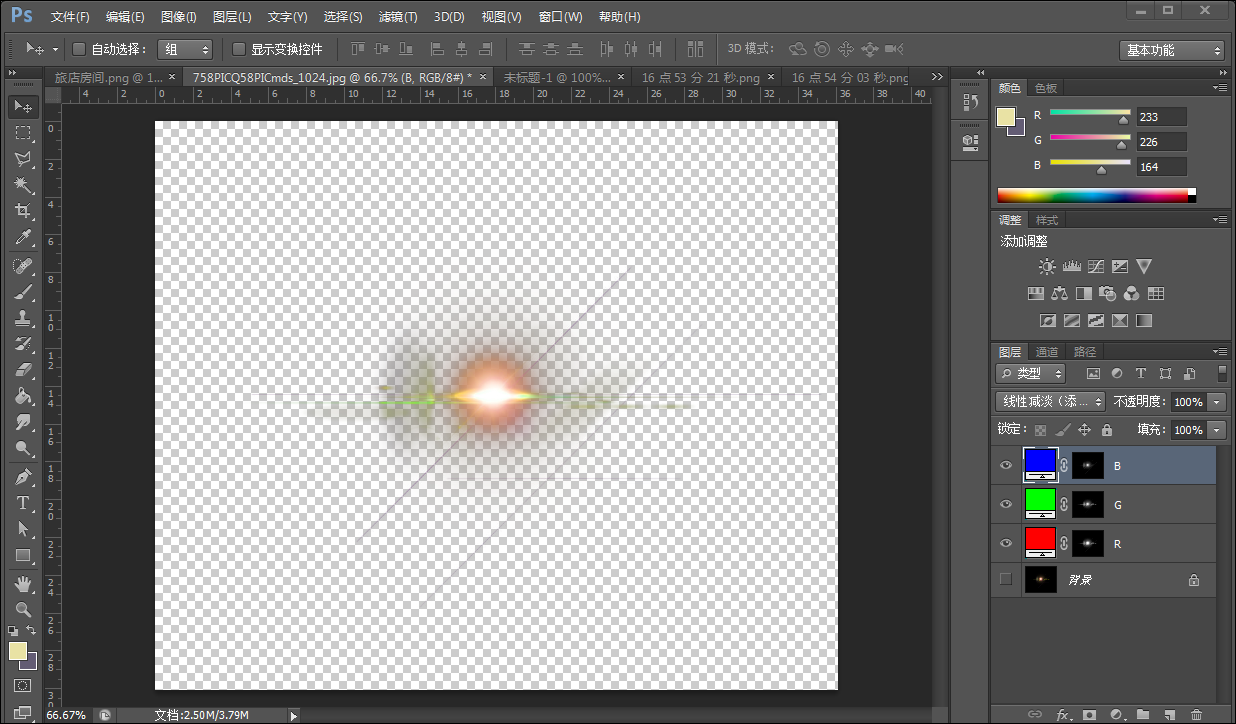

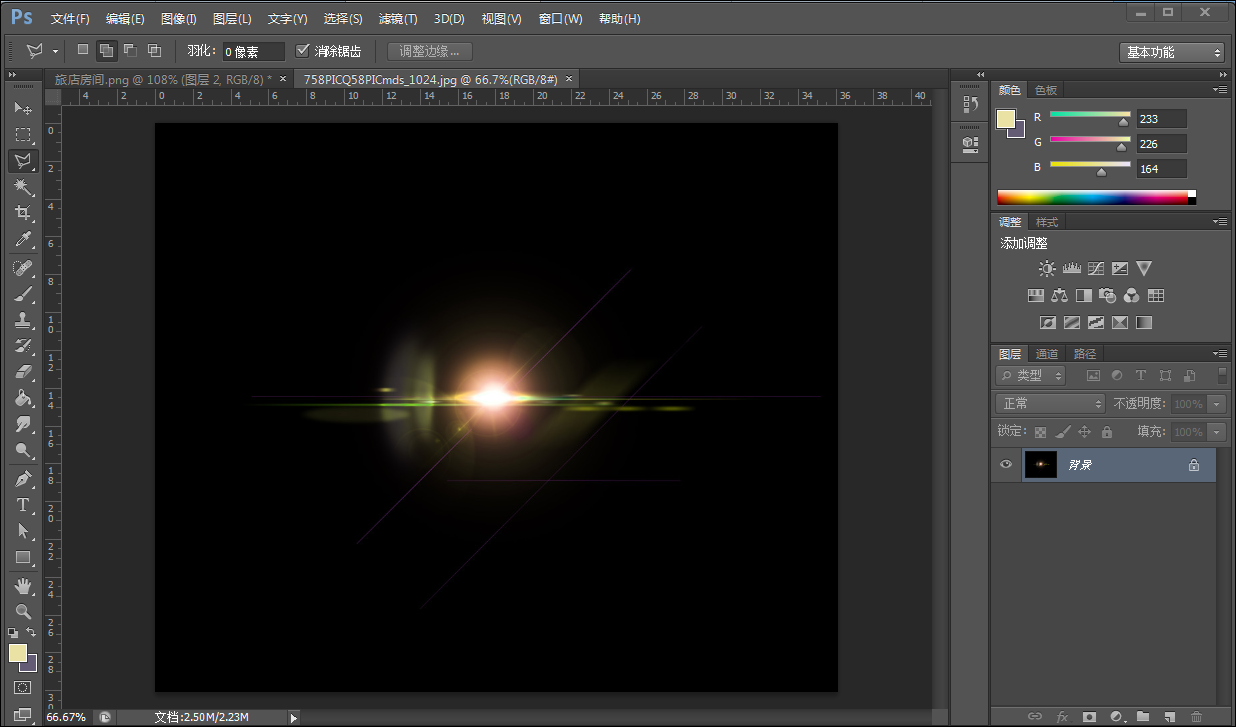

③ （其实这个非必需）高光素材...（一般来说不商用的话基本可以在百度上找...但是为了安全起见还是自己做比较好，个人对于做高光也是...白痴阶段...）用于特殊的、重要的光源。
④ 数位板（对于绘制更自然的光影有很大帮助）

需要的航拍脚本
注：第一次是在幻想天空时看到熊叔分享的...帮了很大的忙
注2：引入航拍脚本应为测试状态，如果游戏发布请删除，此脚本对于数据库里Tilesets的设置有影响（遮挡错乱-实质为影响优先度）
注3：使用时只需测试游戏中按下F6即可完成截图的输出，输出源位于游戏根目录
[fold=航拍脚本]

#==============================================================================
# ** Map Screenshot
#==============================================================================
#
# - Credits: Cycleby for Bitmap to PNG
# SephirothSpawn for Tilemap
#
#
# To take a screenshot simply be on the map and press F6. The file will be
# created in your game directory under the maps name.
#
#==============================================================================
#==============================================================================
# ** Spriteset_Map
#==============================================================================
class Spriteset_Map
#--------------------------------------------------------------------------
# * Update
#--------------------------------------------------------------------------
alias :bit_to_png_up :update
def update
bit_to_png_up
if Input.trigger?(Input::F6)
map_infos = load_data("Data/MapInfos.rxdata")
bit = @tilemap.bitmap
exp_time = (bit.height * bit.width) * 0.00000664
string = "Taking screenshot please wait.... \n" +
"Number of pixels: #{bit.height * bit.width} \n" +
"Estamated time: #{exp_time} seconds."
print("#{string}")
old_time = Time.now
bit.make_png("#{map_infos[$game_map.map_id].name}")
string = "#{map_infos[$game_map.map_id].name}.png was created. \n" +
"File size: width #{bit.width}, height #{bit.height}. \n" +
"Time taken: #{Time.now - old_time} seconds."
print("#{string}")
end
end
end
#==============================================================================
# Bitmap to PNG By Cycleby
#==============================================================================
#
# Direct use of the Bitmap object.
# bitmap_obj.make_png(name[, path])
#
# Name: Save the file name
# Path: path to save the
#
# Thanks 66, Shana, gold Guizi reminder and help!
#==============================================================================
module Zlib
class Png_File < GzipWriter
#--------------------------------------------------------------------------
# ● Main
#--------------------------------------------------------------------------
def make_png(bitmap_Fx,mode)
@mode = mode
@bitmap_Fx = bitmap_Fx
self.write(make_header)
self.write(make_ihdr)
self.write(make_idat)
self.write(make_iend)
end
#--------------------------------------------------------------------------
# ● PNG file header block
#--------------------------------------------------------------------------
def make_header
return [0x89,0x50,0x4e,0x47,0x0d,0x0a,0x1a,0x0a].pack("C*")
end
#--------------------------------------------------------------------------
# ● PNG file data block header information (IHDR)
#--------------------------------------------------------------------------
def make_ihdr
ih_size = [13].pack("N")
ih_sign = "IHDR"
ih_width = [@bitmap_Fx.width].pack("N")
ih_height = [@bitmap_Fx.height].pack("N")
ih_bit_depth = [8].pack("C")
ih_color_type = [6].pack("C")
ih_compression_method = [0].pack("C")
ih_filter_method = [0].pack("C")
ih_interlace_method = [0].pack("C")
string = ih_sign + ih_width + ih_height + ih_bit_depth + ih_color_type +
ih_compression_method + ih_filter_method + ih_interlace_method
ih_crc = [Zlib.crc32(string)].pack("N")
return ih_size + string + ih_crc
end
#--------------------------------------------------------------------------
# ● Generated image data (IDAT)
#--------------------------------------------------------------------------
def make_idat
header = "\x49\x44\x41\x54"
case @mode # please 54 ~
when 1
data = make_bitmap_data # 1
else
data = make_bitmap_data
end
data = Zlib::Deflate.deflate(data, 8)
crc = [Zlib.crc32(header + data)].pack("N")
size = [data.length].pack("N")
return size + header + data + crc
end
#--------------------------------------------------------------------------
# ● Requests from the Bitmap object 54 to generate image data in mode 1
# (please 54 ~)
#--------------------------------------------------------------------------
def make_bitmap_data1
w = @bitmap_Fx.width
h = @bitmap_Fx.height
data = []
for y in 0...h
data.push(0)
for x in 0...w
color = @bitmap_Fx.get_pixel(x, y)
red = color.red
green = color.green
blue = color.blue
alpha = color.alpha
data.push(red)
data.push(green)
data.push(blue)
data.push(alpha)
end
end
return data.pack("C*")
end
#--------------------------------------------------------------------------
# ● Bitmap object from the image data generated in mode 0
#--------------------------------------------------------------------------
def make_bitmap_data
gz = Zlib::GzipWriter.open('hoge.gz')
t_Fx = 0
w = @bitmap_Fx.width
h = @bitmap_Fx.height
data = []
for y in 0...h
data.push(0)
for x in 0...w
t_Fx += 1
if t_Fx % 10000 == 0
Graphics.update
end
if t_Fx % 100000 == 0
s = data.pack("C*")
gz.write(s)
data.clear
#GC.start
end
color = @bitmap_Fx.get_pixel(x, y)
red = color.red
green = color.green
blue = color.blue
alpha = color.alpha
data.push(red)
data.push(green)
data.push(blue)
data.push(alpha)
end
end
s = data.pack("C*")
gz.write(s)
gz.close
data.clear
gz = Zlib::GzipReader.open('hoge.gz')
data = gz.read
gz.close
File.delete('hoge.gz')
return data
end
#--------------------------------------------------------------------------
# ● PNG end of the file data blocks (IEND)
#--------------------------------------------------------------------------
def make_iend
ie_size = [0].pack("N")
ie_sign = "IEND"
ie_crc = [Zlib.crc32(ie_sign)].pack("N")
return ie_size + ie_sign + ie_crc
end
end
end
#==============================================================================
# ■ Bitmap
#------------------------------------------------------------------------------
# Related to the Bitmap.
#==============================================================================
class Bitmap
#--------------------------------------------------------------------------
# ● Related
#--------------------------------------------------------------------------
def make_png(name="like", path="",mode=0)
make_dir(path) if path != ""
Zlib::Png_File.open("temp.gz") {|gz|
gz.make_png(self,mode)
}
Zlib::GzipReader.open("temp.gz") {|gz|
$read = gz.read
}
f = File.open(path + name + ".png","wb")
f.write($read)
f.close
File.delete('temp.gz')
end
#--------------------------------------------------------------------------
# ● Save the path generated
#--------------------------------------------------------------------------
def make_dir(path)
dir = path.split("/")
for i in 0...dir.size
unless dir == "."
add_dir = dir[0..i].join("/")
begin
Dir.mkdir(add_dir)
rescue
end
end
end
end
end
module Tilemap_Options
#--------------------------------------------------------------------------
# * Tilemap Options
#
#
# Print Error Reports when not enough information set to tilemap
# - Print_Error_Logs = true or false
#
# Number of autotiles to refresh at edge of viewport
# Number of Frames Before Redrawing Animated Autotiles
# - Animated_Autotiles_Frames = 16
#
# - Viewport_Padding = n
#
# When maps are switch, automatically set
# $game_map.tileset_settings.flash_data (Recommended : False unless using
# flash_data)
# - Autoset_Flash_data = true or false
#
# Duration Between Flash Data Flashes
# - Flash_Duration = n
#
# Color of bitmap (Recommended to use low opacity value)
# - Flash_Bitmap_C = Color.new(255, 255, 255, 50)
#
# Update Flashtiles Default Setting
# Explanation : In the Flash Data Addition, because of lag, you may wish
# to toggle whether flash tiles flash or not. This is the default state.
# - Default_Update_Flashtiles = false
#--------------------------------------------------------------------------
Print_Error_Logs = true
Animated_Autotiles_Frames = 16
Autoset_Flash_data = true
Viewport_Padding = 2
Flash_Duration = 40
Flash_Bitmap_C = Color.new(255, 255, 255, 50)
Default_Update_Flashtiles = false
end
#==============================================================================
# ** RPG::Cache
#==============================================================================
module RPG::Cache
#--------------------------------------------------------------------------
# * Auto-Tiles
#
# Auto-Tile 48 : First Auto-Tile, Constructed of tiles 27, 28, 33, 34
#--------------------------------------------------------------------------
Autotiles = [
[[27, 28, 33, 34], [ 5, 28, 33, 34], [27, 6, 33, 34], [ 5, 6, 33, 34],
[27, 28, 33, 12], [ 5, 28, 33, 12], [27, 6, 33, 12], [ 5, 6, 33, 12]],
[[27, 28, 11, 34], [ 5, 28, 11, 34], [27, 6, 11, 34], [ 5, 6, 11, 34],
[27, 28, 11, 12], [ 5, 28, 11, 12], [27, 6, 11, 12], [ 5, 6, 11, 12]],
[[25, 26, 31, 32], [25, 6, 31, 32], [25, 26, 31, 12], [25, 6, 31, 12],
[15, 16, 21, 22], [15, 16, 21, 12], [15, 16, 11, 22], [15, 16, 11, 12]],
[[29, 30, 35, 36], [29, 30, 11, 36], [ 5, 30, 35, 36], [ 5, 30, 11, 36],
[39, 40, 45, 46], [ 5, 40, 45, 46], [39, 6, 45, 46], [ 5, 6, 45, 46]],
[[25, 30, 31, 36], [15, 16, 45, 46], [13, 14, 19, 20], [13, 14, 19, 12],
[17, 18, 23, 24], [17, 18, 11, 24], [41, 42, 47, 48], [ 5, 42, 47, 48]],
[[37, 38, 43, 44], [37, 6, 43, 44], [13, 18, 19, 24], [13, 14, 43, 44],
[37, 42, 43, 48], [17, 18, 47, 48], [13, 18, 43, 48], [ 1, 2, 7, 8]]
]
#--------------------------------------------------------------------------
# * Autotile Cache
#
# @autotile_cache = {
# filename => { [autotile_id, frame_id, hue] => bitmap, ... },
# ...
# }
#--------------------------------------------------------------------------
@autotile_cache = {}
#--------------------------------------------------------------------------
# * Autotile Tile
#--------------------------------------------------------------------------
def self.autotile_tile(filename, tile_id, hue = 0, frame_id = nil)
# Gets Autotile Bitmap
autotile = self.autotile(filename)
# Configures Frame ID if not specified
if frame_id.nil?
# Animated Tiles
frames = autotile.width / 96
# Configures Animation Offset
fc = Graphics.frame_count / Tilemap_Options::Animated_Autotiles_Frames
frame_id = (fc) % frames * 96
end
# Creates list if already not created
@autotile_cache[filename] = {} unless @autotile_cache.has_key?(filename)
# Gets Key
key = [tile_id, frame_id, hue]
# If Key Not Found
unless @autotile_cache[filename].has_key?(key)
# Reconfigure Tile ID
tile_id %= 48
# Creates Bitmap
bitmap = Bitmap.new(32, 32)
# Collects Auto-Tile Tile Layout
tiles = Autotiles[tile_id / 8][tile_id % 8]
# Draws Auto-Tile Rects
for i in 0...4
tile_position = tiles[i] - 1
src_rect = Rect.new(tile_position % 6 * 16 + frame_id,
tile_position / 6 * 16, 16, 16)
bitmap.blt(i % 2 * 16, i / 2 * 16, autotile, src_rect)
end
# Saves Autotile to Cache
@autotile_cache[filename][key] = bitmap
# Change Hue
@autotile_cache[filename][key].hue_change(hue)
end
# Return Autotile
return @autotile_cache[filename][key]
end
end
#==============================================================================
# ** Spriteset_Map
#==============================================================================
class Spriteset_Map
#--------------------------------------------------------------------------
# * Object Initialization
#--------------------------------------------------------------------------
def initialize
# Make viewports
@viewport1 = Viewport.new(0, 0, 640, 480)
@viewport2 = Viewport.new(0, 0, 640, 480)
@viewport3 = Viewport.new(0, 0, 640, 480)
@viewport2.z = 200
@viewport3.z = 5000
# Make tilemap
# Make tilemap
@tilemap = Tilemap.new(@viewport1)
@tilemap.tileset = RPG::Cache.tileset($game_map.tileset_name)
for i in 0..6
autotile_name = $game_map.autotile_names[i]
@tilemap.autotiles[i] = RPG::Cache.autotile(autotile_name)
end
@tilemap.map_data = $game_map.data.dup
@tilemap.priorities = $game_map.priorities
# Set Tilemap Settings
@tilemap.tileset_name = $game_map.tileset_name
for i in 0..6
@tilemap.autotiles_name[i] = $game_map.autotile_names[i]
end
@tilemap.tilemap_settings = $game_map.tilemap_settings
# Setup Flash Data
@tilemap.flash_data = $game_map.tilemap_settings.flash_data
# Run Tilemap Setup
@tilemap.setup
# Make panorama plane
[url=home.php?mod=space&uid=2658185]@Panorama[/url] = Plane.new(@viewport1)
@panorama.z = -1000
# Make fog plane
[url=home.php?mod=space&uid=14217]@fog[/url] = Plane.new(@viewport1)
@fog.z = 3000
# Make character sprites
@character_sprites = []
for i in $game_map.events.keys.sort
sprite = Sprite_Character.new(@viewport1, $game_map.events[i])
@character_sprites.push(sprite)
end
@character_sprites.push(Sprite_Character.new(@viewport1, $game_player))
# Make weather
@weather = RPG::Weather.new(@viewport1)
# Make picture sprites
@picture_sprites = []
for i in 1..50
@picture_sprites.push(Sprite_Picture.new(@viewport2,
$game_screen.pictures[i]))
end
# Make timer sprite
@timer_sprite = Sprite_Timer.new
# Frame update
update
end
end
#==============================================================================
# ** Tilemap_Settings
#==============================================================================
class Tilemap_Settings
#--------------------------------------------------------------------------
# * Public Instance Variables
#--------------------------------------------------------------------------
attr_accessor :map
attr_accessor :is_a_plane
attr_accessor :tone
attr_accessor :hue
attr_accessor :zoom_x
attr_accessor :zoom_y
attr_accessor :tile_size
attr_accessor :flash_data
#--------------------------------------------------------------------------
# * Object Initialization
#--------------------------------------------------------------------------
def initialize(map = nil)
# Set Instance Variables
@map, @is_a_plane, @tone, @hue, @zoom_x, @zoom_y, @tile_size,
@flash_data = map, false, nil, 0, 1.0, 1.0, 32, nil
end
end
#==============================================================================
# ** Game_Map
#==============================================================================
class Game_Map
#--------------------------------------------------------------------------
# * Public Instance Variables
#--------------------------------------------------------------------------
attr_accessor :tilemap_settings
#--------------------------------------------------------------------------
# * Alias Listings
#--------------------------------------------------------------------------
alias_method :seph_tilemap_gmap_init, :initialize
#--------------------------------------------------------------------------
# * Object Initialization
#--------------------------------------------------------------------------
def initialize
# Original Initialization
seph_tilemap_gmap_init
# Create Tilemap Settings
@tilemap_settings = Tilemap_Settings.new
end
#--------------------------------------------------------------------------
# * Load Map Data
#--------------------------------------------------------------------------
def setup_load
# Reset Tilemap Flash Data
if Tilemap_Options::Autoset_Flash_data
@tilemap_settings.flash_data = Table.new(@map.width, @map.height)
end
@tilemap_settings.map = @map
end
end
#==============================================================================
# ** Tilemap
#==============================================================================
class Tilemap
#--------------------------------------------------------------------------
# * Public Instance Variables
#--------------------------------------------------------------------------
attr_reader :layers
attr_accessor :tileset
attr_accessor :tileset_name
attr_accessor :autotiles
attr_accessor :autotiles_name
attr_accessor :map_data
attr_accessor :flash_data
attr_accessor :priorities
attr_accessor :visible
attr_accessor :ox
attr_accessor :oy
attr_accessor :tilemap_settings
attr_accessor :refresh_autotiles
#--------------------------------------------------------------------------
# * Object Initialization
#--------------------------------------------------------------------------
def initialize(viewport)
# Saves Viewport
@viewport = viewport
# Creates Blank Instance Variables
@layers = [] # Refers to Array of Sprites or Planes
@tileset = nil # Refers to Tileset Bitmap
@tileset_name = '' # Refers to Tileset Filename
@autotiles = [] # Refers to Array of Autotile Bitmaps
@autotiles_name = [] # Refers to Array of Autotile Filenames
@map_data = nil # Refers to 3D Array Of Tile Settings
@flash_data = nil # Refers to 3D Array of Tile Flashdata
@priorities = nil # Refers to Tileset Priorities
@visible = true # Refers to Tilest Visibleness
@ox = 0 # Bitmap Offsets
@oy = 0 # Bitmap Offsets
@tilemap_settings = nil # Special Tilemap Settings
@dispose = false # Disposed Flag
@refresh_autotiles = true # Refresh Autotile Flag
end
#--------------------------------------------------------------------------
# * Setup
#--------------------------------------------------------------------------
def setup
# Print Error if Tilemap Settings not Found
if Tilemap_Options::Print_Error_Logs
if @tilemap_settings.nil?
p 'Tilemap Settings have not been set. System will not crash.'
end
if @map_data.nil?
p 'Map Data has not been set. System will crash.'
end
end
# Creates Layers
@layers = []
for l in 0...3
layer = @tilemap_settings.nil? || !@tilemap_settings.is_a_plane ?
Sprite.new(@viewport) : Plane.new(@viewport)
layer.bitmap = Bitmap.new(@map_data.xsize * 32, @map_data.ysize * 32)
layer.z = l * 150
layer.zoom_x = @tilemap_settings.nil? ? 1.0 : @tilemap_settings.zoom_x
layer.zoom_y = @tilemap_settings.nil? ? 1.0 : @tilemap_settings.zoom_y
unless @tilemap_settings.nil? || @tilemap_settings.tone.nil?
layer.tone = @tilemap_settings.tone
end
@layers << layer
end
# Update Flags
@refresh_data = nil
@zoom_x = @tilemap_settings.nil? ? 1.0 : @tilemap_settings.zoom_x
@zoom_y = @tilemap_settings.nil? ? 1.0 : @tilemap_settings.zoom_y
@tone = @tilemap_settings.nil? ? nil : @tilemap_settings.tone
@hue = @tilemap_settings.nil? ? 0 : @tilemap_settings.hue
@tilesize = @tilemap_settings.nil? ? 32 : @tilemap_settings.tile_size
end
#--------------------------------------------------------------------------
# * Dispose
#--------------------------------------------------------------------------
def dispose
# Dispose Layers (Sprites)
@layers.each { |layer| layer.dispose }
# Set Disposed Flag to True
@disposed = true
end
#--------------------------------------------------------------------------
# * Disposed?
#--------------------------------------------------------------------------
def disposed?
return @disposed
end
#--------------------------------------------------------------------------
# * Viewport
#--------------------------------------------------------------------------
def viewport
return @viewport
end
#--------------------------------------------------------------------------
# * Frame Update
#--------------------------------------------------------------------------
def update
# Set Refreshed Flag to On
needs_refresh = true
# If Map Data, Tilesize or HueChanges
if @map_data != @refresh_data || (@tilemap_settings != false &&
@hue != @tilemap_settings.hue) || (@tilemap_settings != false &&
@tilesize != @tilemap_settings.tile_size)
# Refresh Bitmaps
refresh
# Turns Refresh Flag to OFF
needs_refresh = false
end
# Zoom X, Zoom Y, and Tone Changes
unless @tilemap_settings.nil?
if @zoom_x != @tilemap_settings.zoom_x
@zoom_x = @tilemap_settings.zoom_x
@layers.each {|layer| layer.zoom_x = @zoom_x}
end
if @zoom_y != @tilemap_settings.zoom_y
@zoom_y = @tilemap_settings.zoom_y
@layers.each {|layer| layer.zoom_y = @zoom_y}
end
if @tone != @tilemap_settings.tone
@tone = @tilemap_settings.tone.nil? ?
Tone.new(0, 0, 0, 0) : @tilemap_settings.tone
@layers.each {|layer| layer.tone = @tone}
end
end
# Update layer Position offsets
for layer in @layers
layer.ox = @ox
layer.oy = @oy
end
# If Refresh Autotiles, Needs Refreshed & Autotile Reset Frame
if @refresh_autotiles && needs_refresh &&
Graphics.frame_count % Tilemap_Options::Animated_Autotiles_Frames == 0
# Refresh Autotiles
refresh_autotiles
end
end
#--------------------------------------------------------------------------
# * Refresh
#--------------------------------------------------------------------------
def refresh
# Saves Map Data & Tilesize
@refresh_data = @map_data
@hue = @tilemap_settings.nil? ? 0 : @tilemap_settings.hue
@tilesize = @tilemap_settings.nil? ? 32 : @tilemap_settings.tile_size
# Passes Through Layers
for z in 0...@map_data.zsize
# Passes Through X Coordinates
for x in 0...@map_data.xsize
# Passes Through Z Coordinates
for y in 0...@map_data.ysize
# Collects Tile ID
id = @map_data[x, y, z]
# Skip if 0 tile
next if id == 0
# Passes Through All Priorities
for p in 0..5
# Skip If Priority Doesn't Match
next unless p == @priorities[id]
# Cap Priority to Layer 3
p = 2 if p > 2
# Draw Tile
id < 384 ? draw_autotile(x, y, p, id) : draw_tile(x, y, p, id)
end
end
end
end
end
#--------------------------------------------------------------------------
# * Refresh Auto-Tiles
#--------------------------------------------------------------------------
def refresh_autotiles
# Auto-Tile Locations
autotile_locations = Table.new(@map_data.xsize, @map_data.ysize,
@map_data.zsize)
# Get X Tiles
x1 = [@ox / @tilesize - Tilemap_Options::Viewport_Padding, 0].max.round
x2 = [@viewport.rect.width / @tilesize +
Tilemap_Options::Viewport_Padding, @map_data.xsize].min.round
# Get Y Tiles
y1 = [@oy / @tilesize - Tilemap_Options::Viewport_Padding, 0].max.round
y2 = [@viewport.rect.height / @tilesize +
Tilemap_Options::Viewport_Padding, @map_data.ysize].min.round
# Passes Through Layers
for z in 0...@map_data.zsize
# Passes Through X Coordinates
for x in x1...x2
# Passes Through Y Coordinates
for y in y1...y2
# Collects Tile ID
id = @map_data[x, y, z]
# Skip if 0 tile
next if id == 0
# Skip If Non-Animated Tile
next unless @autotiles[id / 48 - 1].width / 96 > 1 if id < 384
# Passes Through All Priorities
for p in 0..5
# Skip If Priority Doesn't Match
next unless p == @priorities[id]
# Cap Priority to Layer 3
p = 2 if p > 2
# If Autotile
if id < 384
# Draw Auto-Tile
draw_autotile(x, y, p, id)
# Draw Higher Tiles
for l in 0...@map_data.zsize
id_l = @map_data[x, y, l]
draw_tile(x, y, p, id_l)
end
# Save Autotile Location
autotile_locations[x, y, z] = 1
# If Normal Tile
else
# If Autotile Drawn
if autotile_locations[x, y, z] == 1
# Redraw Normal Tile
draw_tile(x, y, p, id)
# Draw Higher Tiles
for l in 0...@map_data.zsize
id_l = @map_data[x, y, l]
draw_tile(x, y, p, id_l)
end
end
end
end
end
end
end
end
#--------------------------------------------------------------------------
# * Draw Tile
#--------------------------------------------------------------------------
def draw_tile(x, y, z, id)
# Gets Tile Bitmap
bitmap = RPG::Cache.tile(@tileset_name, id, @hue)
# Calculates Tile Coordinates
x *= @tilesize
y *= @tilesize
# Draw Tile
if @tilesize == 32
@layers[z].bitmap.blt(x, y, bitmap, Rect.new(0, 0, 32, 32))
else
rect = Rect.new(x, y, @tilesize, @tilesize)
@layers[z].bitmap.stretch_blt(rect, bitmap, Rect.new(0, 0, 32, 32))
end
end
#--------------------------------------------------------------------------
# * Draw Auto-Tile
#--------------------------------------------------------------------------
def draw_autotile(x, y, z, tile_id)
# Gets Autotile Filename
filename = @autotiles_name[tile_id / 48 - 1]
# Reconfigure Tile ID
tile_id %= 48
# Gets Generated Autotile Bitmap Section
bitmap = RPG::Cache.autotile_tile(filename, tile_id, @hue)
# Calculates Tile Coordinates
x *= @tilesize
y *= @tilesize
# If Normal Tile
if @tilesize == 32
@layers[z].bitmap.blt(x, y, bitmap, Rect.new(0, 0, 32, 32))
# If Altered Dimensions
else
dest_rect = Rect.new(x, y, @tilesize, @tilesize)
@layers[z].bitmap.stretch_blt(dest_rect, bitmap, Rect.new(0, 0, 32, 32))
end
end
#--------------------------------------------------------------------------
# * Collect Bitmap
#--------------------------------------------------------------------------
def bitmap
# Creates New Blank Bitmap
bitmap = Bitmap.new(@layers[0].bitmap.width, @layers[0].bitmap.height)
# Passes Through All Layers
for layer in @layers
bitmap.blt(0, 0, layer.bitmap,
Rect.new(0, 0, bitmap.width, bitmap.height))
end
# Return Bitmap
return bitmap
end
end
#==============================================================================
# ■ 航拍 v 1.1 by 各种压力的猫君
#------------------------------------------------------------------------------
# 本脚本为 Map Screenshot by mr_wiggles 的汉化&加强，
# 并未取得原作者允许，并未附加原脚本内容，需要原脚本的支持。
# 【换言之本脚本不能单独使用】
#------------------------------------------------------------------------------
# Map Screenshot by mr_wiggles 的发布网址：
# http://gameface101.playogame.com/t920-map-screen-shot-rmxp
#------------------------------------------------------------------------------
# 使用方法：
# ① 将 Map Screenshot by mr_wiggles 插入 MAIN 之上；
# ② 将本脚本插入上面脚本之下，MAIN 之上；
# ③ 运行游戏，在需要截图的地图上按F6。
#------------------------------------------------------------------------------
# 更新记录：
# 2012-01-21 v 1.1 支持行走图的色相、透明度以及合成方式（加减法）
# 2012-01-21 v 1.0 修正行走图传送区域错误
# 2012-01-21 v 0.9 初版
#------------------------------------------------------------------------------
# 更新预告：
# 下一版将加入设定部分暂未实现的功能
# 下一版将加入超过Bitmap上限自动分割的功能
#==============================================================================
#==============================================================================
# ■ 设定部分
#------------------------------------------------------------------------------
# 　本汉化加强版脚本的设定。
#==============================================================================
# 截图类型
# - 0 仅图块（原脚本类型）
# - 1 图块 + 事件（事件名称以NPC开头的以及主角除外）
# - 2 图块 + 全事件（1的基础上包括NPC和主角）
# - 3 图块 + 远景图 + 雾（暂未实现）
# - 4 图块 + 远景图 + 雾 + 事件（暂未实现）
# - 5 图块 + 远景图 + 雾 + 全事件（暂未实现）
Aerial_Photography_TPYE = 2
#==============================================================================
# ■ 汉化部分
#------------------------------------------------------------------------------
# 　对原脚本提示信息的汉化。
#==============================================================================
class Spriteset_Map
def update
bit_to_png_up
if Input.trigger?(Input::F6)
map_infos = load_data("Data/MapInfos.rxdata")
bit = @tilemap.bitmap
exp_time = (bit.height * bit.width) * 0.00000664
string = "航拍图已创建完成\n" +
"像素数: #{bit.height * bit.width} \n" +
"预计输出PNG用时: #{exp_time} 秒\n\n" +
"按确定键开始输出PNG"
print("#{string}")
old_time = Time.now
bit.make_png("#{map_infos[$game_map.map_id].name}")
string = "#{map_infos[$game_map.map_id].name}.png 已被创建 \n" +
"尺寸：宽 #{bit.width}, 高 #{bit.height} \n" +
"耗时：#{Time.now - old_time} 秒"
print("#{string}")
end
end
end
#==============================================================================
# ■ 加强部分
#------------------------------------------------------------------------------
# 　对原脚本功能的加强。
#==============================================================================
class Game_Event < Game_Character
def name
return @event.name
end
end
class Sprite_Character < RPG::Sprite
attr_reader :tile_id # 元件 ID (0 为无效)
end
class Tilemap
#--------------------------------------------------------------------------
# * Collect Bitmap
#--------------------------------------------------------------------------
def bitmap
# Creates New Blank Bitmap
bitmap = Bitmap.new(@layers[0].bitmap.width, @layers[0].bitmap.height)
# Passes Through All Layers
for layer in @layers
bitmap.blt(0, 0, layer.bitmap,
Rect.new(0, 0, bitmap.width, bitmap.height))
end
#--------------------------------------------------------------------------
# 绘制事件行走图
#--------------------------------------------------------------------------
if Aerial_Photography_TPYE == 1 or
Aerial_Photography_TPYE == 2 or
Aerial_Photography_TPYE == 4 or
Aerial_Photography_TPYE == 5
# 生成角色活动块
character_sprites = []
for i in $game_map.events.keys.sort
# 排除NPC
if Aerial_Photography_TPYE == 1 or
Aerial_Photography_TPYE == 4
next if $game_map.events[i].name.slice(/^NPC/)
end
sprite = Sprite_Character.new(@viewport1, $game_map.events[i])
character_sprites.push(sprite)
end
# 排除主角
unless Aerial_Photography_TPYE == 1 or
Aerial_Photography_TPYE == 4
character_sprites.push(Sprite_Character.new(@viewport1, $game_player))
end
# 绘制
for npc4map in character_sprites
rx = npc4map.x + $game_map.display_x / 4 - npc4map.ox
ry = npc4map.y + $game_map.display_y / 4 - npc4map.oy
o = npc4map.opacity
r = npc4map.src_rect
# 合成方式的处理
if npc4map.blend_type == 0
b = npc4map.bitmap.clone
else
# 将行走图切一块过来
sb = Bitmap.new(r.width, r.height)
sb.blt(0, 0, npc4map.bitmap, r, o)
# 同样地，将底部图片切一块过来
ub = Bitmap.new(r.width, r.height)
sr = Rect.new(rx, ry, r.width, r.height)
ub.stretch_blt(ub.rect, bitmap, sr)
# 获取颜色值
ubc = []
sbc = []
bc = []
for y in 0..(ub.height - 1)
for x in 0..(ub.width - 1)
ubc.push ub.get_pixel(x, y)
sbc.push sb.get_pixel(x, y)
end
end
@tc = Color.new(0, 0, 0)
# 生成bitmap
b = Bitmap.new(r.width, r.height)
for y in 0..(b.height - 1)
for x in 0..(b.width - 1)
i = x + y * b.width
uc = ubc[i]
sc = sbc[i]
mc = mix_color(uc, sc, npc4map.blend_type)
b.set_pixel(x, y, mc)
end
end
r = Rect.new(0, 0, r.width, r.height)
end
# 若不是地图原件，采用行走图绘制方式
if npc4map.tile_id == 0
bitmap.blt(rx, ry, b, r, o)
else
bitmap.blt(rx, ry, b, Rect.new(0, 0, 32, 32), o)
end
end
end
#--------------------------------------------------------------------------
# Return Bitmap
return bitmap
end
#--------------------------------------------------------------------------
def mix_color(c1, c2, bt)
return c1 if c2.alpha == 0
case bt
when 1 # 加法
tc_r = c1.red + c2.red
tc_g = c1.green + c2.green
tc_b = c1.blue + c2.blue
tc_a = c1.alpha + c2.alpha
when 2 # 减法
tc_r = (c1.red - c2.red).abs
tc_g = (c1.green - c2.green).abs
tc_b = (c1.blue - c2.blue).abs
tc_a = [c1.alpha, c2.alpha].max
end
mc = [tc_r, tc_g, tc_b, tc_a]
@tc.set(mc[0], mc[1], mc[2], mc[3])
return @tc
end
#--------------------------------------------------------------------------
end

复制代码

[/fold]

【Step.1】

如图所示（CS6界面）
通常情况下要用辅助线来配合制作光影。
设置方式：视图-显示-网格（G）
网格的预设是在：编辑-首选项-参考、网格和切片（S）
·设置参数：[样式]直线（默认） / 网格线间隔：32 像素 / 子网格：1 （颜色根据需要自行调整）

————————————————————————————————————————————————————

【Step.2】
新建图层，选择“油漆桶工具”，参数根据需要调整为1%-99%，白天的话个人喜欢默认50%，晚上则为70%甚至更高。前景色纯黑色（R/G/B:0）。
然后填充画面。如图。

————————————————————————————————————————————————————

【Step.3】
确定光源影响区域，选择“矩形选框工具”，方式为“添加到选区”

————————————————————————————————————————————————————

【Step.4】
选择“橡皮擦工具”，参数设置：将不透明度和流量设置在较低的数值（一般20%以下）橡皮擦样式一般默认即可。
在准确的光源处单击。接下来使用键盘上的“{[”和“}]”调整橡皮擦半径（规律递增）
小技巧：保持中心不动，小半径下多使用橡皮擦工具，大半径下少使用（随着距离增大因为空气的反射折射会减弱光源）
对于侧面从窗户投射的光，在网格辅助下利用多边形套索选取相应区域再使用橡皮擦即可。

————————————————————————————————————————————————————

【Step.5】

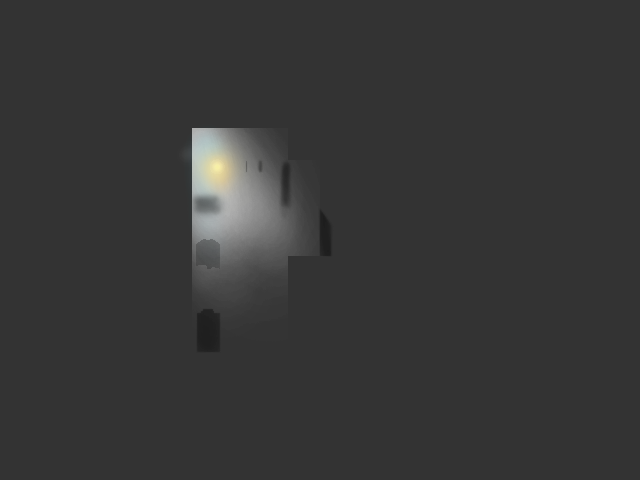

而对于人工光源，先用橡皮擦在光源出操作类似Step.4的步骤，再新建图层，将图层不透明度调至50%左右，图层的叠加模式根据画面需求调试。选择画笔工具，参数的设置接近橡皮擦，可以更高一些。前景色自行调整。如图所示，得到较简单的光影，此后只需要隐藏截图图层输出为png格式保存在“Fog”文件夹作为雾图形使用即可.（普通合成，不透明度255）
另，人工光源可用Character（光源素材也是有的）采用加法配合雾图形效果更加。至于阴影的绘制...作为雾图形不太合适，因为优先度高会遮盖行走图，只能说随机应变...

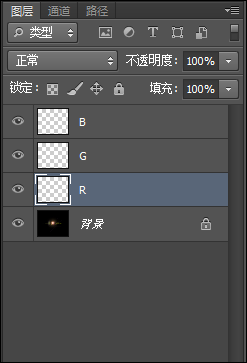

再添加一个使用去黑色背景的高光素材小方法：通道法...其实也是来源网上，再扩散一下好了（
[fold=延展内容] 16 点 53 分 21 秒.png
