Khas Awesome Light Effects烛光脚本分辨率的问题

mollyko

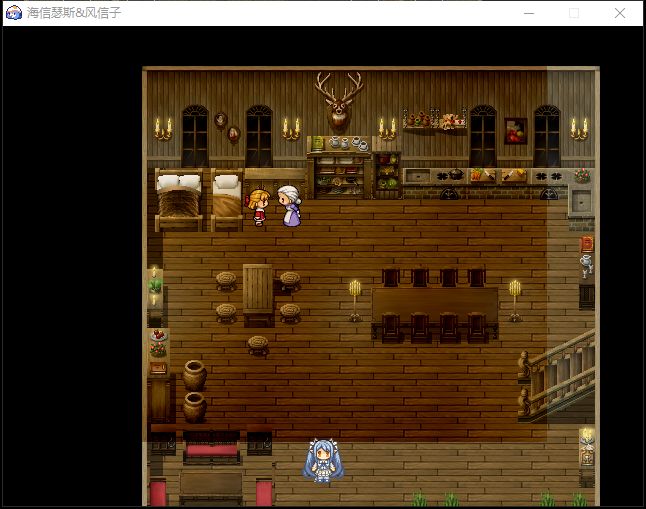

我把窗口分辨率改为了640x480，然后就出现了这个问题：遮不住
球大神解答！
脚本在此：


#-------------------------------------------------------------------------------
# * [ACE] Khas Awesome Light Effects
#-------------------------------------------------------------------------------
# * By Khas Arcthunder - arcthunder.site40.net
# * Version: 1.0 EN
# * Released on: 17/01/2012
#
#-------------------------------------------------------------------------------
# * Terms of Use
#-------------------------------------------------------------------------------
# When using any Khas script, you agree with the following terms:
# 1. You must give credit to Khas;
# 2. All Khas scripts are licensed under a Creative Commons license;
# 3. All Khas scripts are for non-commercial projects. If you need some script
#    for your commercial project (I accept requests for this type of project),
#    send an email to [email protected] with your request;
# 4. All Khas scripts are for personal use, you can use or edit for your own
#    project, but you are not allowed to post any modified version;
# 5. You can’t give credit to yourself for posting any Khas script;
# 6. If you want to share a Khas script, don’t post the direct download link,
#    please redirect the user to arcthunder.site40.net
#
#-------------------------------------------------------------------------------
# * Features
#-------------------------------------------------------------------------------
# - Realistic Light
# - Light does not pass over walls, blocks and roofs
# - Static Light Sources
# - Dynamic Light Sources (like a player's lantern)
# - Multiple effects
# - Easy to use (comments)
#
#-------------------------------------------------------------------------------
# * WARNING - Performance
#-------------------------------------------------------------------------------
# This script may be too heavy to old processors! The Awesome Light Effects was
# tested on a Core 2 Duo E4500 and on a Core i5, without any lag. However,
# there's other factors that may influence the script performance:
#
# 1. Map size
# This script searches surfaces on the map, in order to cut the light pictures.
# In a huge map, the number of surfaces may increase a lot, affecting the
# DYNAMIC LIGHT SOURCE only. Map size does not influence the static sources.
#
# 2. Number of effects
# This script draws the effects on the screen, but before drawing, it checks
# if the effect is out of screen (in this case, the script will skip the
# light drawing). Too much effects may cause lag, but this is just a prevision.
#
# 3. Effect's picture size
# The picture size of the DYNAMIC LIGHT SOURCE influences directly on your
# game's performace. The bigger is the picture, the slower it will be to
# draw it dynamically. The recommended maximum size is 200x200 pixels
#
#-------------------------------------------------------------------------------
# * WARNING - Light pictures
#-------------------------------------------------------------------------------
# In order to run this script correctly, the light pictures MUST obey the
# following conditions:
# 1. The picture's size MUST be multiple of 2. Example: 150x150
# 2. The picture's width MUST be equal to it's height. Example: 156x156
# 3. The picture's colors MUST be inverted! This is necessary because
#    the script inverts the colors to draw the effect. The black color
#    will be transparent!
#
#-------------------------------------------------------------------------------
# * Instructions - 1. Setup your effects!
#-------------------------------------------------------------------------------
# In order to setup your static effects, go to the setup part and define your
# effects inside the Effects hash. Do as the following mode:
#
# X => [picture,opacity,variation,cut],   <= Remember to put a comma here!
#
# Where:
# picture => Picture's name, inside the Graphics/Lights folder;
# opacity => Effect's opacity;
# variation => Effect's opacity variation;
# cut => Put true to cut the effect or false to don't;
# X => The effect's ID, it will be used on events.
#
# Check the default effects to understand how they work.
#
#-------------------------------------------------------------------------------
# * Instructions - 2. Use your effects!
#-------------------------------------------------------------------------------
# In order to use a effect, put the following comment on a event:
#
# [light x]
#
# Where x must be the Effect's ID.
#
#-------------------------------------------------------------------------------
# * Instructions - 3. Use an awesome lantern!
#-------------------------------------------------------------------------------
# The dynamic light source (lantern) is initialized invisible by default.
# You may call the following commands:
#
# l = $game_map.lantern
# Gets the lantern into a variable

# l.set_graphic(i)
# Sets the lantern's graphic to i, where i must be the picture's file name on
# Graphics/Lights folder.
#
# l.set_multiple_graphics(h)
# Sets the lantern's graphics to h, where h must be a hash with the following
# structure:
#
# h = {2=>"ld",4=>"ll",6=>"lr",8=>"lu"}
#
# Where:
# "ld" is the name of the picture when the lantern's owner is looking down;
# "ll" is the name of the picture when the lantern's owner is looking left;
# "lr" is the name of the picture when the lantern's owner is looking right;
# "lu" is the name of the picture when the lantern's owner is looking up.
#
# l.change_owner(char)
# Sets the lantern's owner to char. Char must be ONE of the following commands:
# $game_player           <= The player itself;
# self_event             <= The event where the command was called;
# $game_map.events[x]    <= The event ID x.
#
# l.set_opacity(o,p)
# Sets the lantern's opacity, where:
# o is the opacity itself;
# p is the opacity variation.
#
# l.show
# After setting the lantern with the commands above, you may set it to visible
# using this command.
#
# l.hide
# Use this command to set the lantern as invisible.
#
#-------------------------------------------------------------------------------
# * Instructions - 4. Use the effect's surface!
#-------------------------------------------------------------------------------
# The Awesome Light Effects draws the effects on a surface. In order to make
# the effects visible, the effect's surface MUST be visible. The Effect's
# Surface is initialized with it's opacity set to zero. You can call the
# following commands:
#
# s = $game_map.effect_surface
# Gets the Effect's Surface into a variable
#
# s.set_color(r,g,b)
# Changes the Effect's Surface color instantly, where:
# r => red level;
# g => green level;
# b => blue level;
#
# s.set_alpha(a)
# Changes the Effect's Surface opacity instantly to a.
#
# s.change_color(time,r,g,b)
# Changes the Effect's Surface color ONLY in a certain time, where:
# time => The change's time (frames);
# r => red level;
# g => green level;
# b => blue level;
#
# s.change_color(time,r,g,b,a)
# Changes the Effect's Surface color and it's opacity in a certain time, where:
# time => The change's time (frames);
# r => red level;
# g => green level;
# b => blue level;
# a => opacity
#
# s.change_alpha(time,a)
# Changes the Effect's Surface opacity in a certain time, where:
# time => The change's time (frames);
# a => opacity
#
#-------------------------------------------------------------------------------
# * Instructions - 5. Use the effect's surface with Tone command!
#-------------------------------------------------------------------------------
# You can access the Effect's Surface with the "Screen Tone" command. In order
# to turn this feature on, set the "Surface_UE" constant to true.
#
# If you decided to use this feature, please note some details:
# 1. The colors values must be between 0 and 255;
# 2. The time is in frames;
# 3. The "gray" value will be sent as the opacity value
#
#-------------------------------------------------------------------------------
# * Instructions - 6. Setup your Tileset Tags!
#-------------------------------------------------------------------------------
# In order to cut the effect's picture correctly, there's 3 types of behavior
# for a tile: wall, block and roof. Walls will make shadows as real walls,
# blocks as blocks and roofs as roofs. So, the tileset tags MUST be configured.
# Check the demo to understand how this system works. If the tilesets aren't
# configured correctly, the script won't cut the effects correctly.
#
#-------------------------------------------------------------------------------
# * Setup Part
#-------------------------------------------------------------------------------
module Light_Core
  Effects = { #  <= DON'T change this!
#-------------------------------------------------------------------------------
# PUT YOUR EFFECTS HERE!
#-------------------------------------------------------------------------------
  0 => ["light_m",255,0,true],
  1 => ["torch",200,20,true],
  2 => ["torch_m",180,30,true],
  3 => ["light_s",255,0,true],

#-------------------------------------------------------------------------------
# End of effecs configuration
#-------------------------------------------------------------------------------
  } #  <= DON'T change this!

  # Z coordinate of the Effect's Surface
  Surface_Z = 180

  # Enable Effect's Surface control by "Screen Tone" command?
  Surface_UE = true

  # Roof behavior tag
  Roof_Tag = 5
  # Wall behavior tag
  Wall_Tag = 6
  # Block behavior tag
  Block_Tag = 7

  # Don't change this!
  ACC = Math.tan(Math::PI/26)
end
#-------------------------------------------------------------------------------
# Script
#-------------------------------------------------------------------------------
module Cache
  def self.light(filename)
    load_bitmap("Graphics/Lights/", filename)
  end
end
module Light_Bitcore
  include Light_Core
  def self.initialize
    @@buffer = {}
    Effects.values.each { |effect| Light_Bitcore.push(effect[0])}
  end
  def self::[](key)
    return @@buffer[key]
  end
  def self.push(key)
    return if @@buffer.keys.include?(key)
    @@buffer[key] = Cache.light(key)
  end
end
Light_Bitcore.initialize
class Light_SSource
  attr_reader :real_x
  attr_reader :real_y
  attr_reader :range
  attr_accessor :bitmap
  attr_reader :w
  attr_reader :h
  attr_reader :hs
  def initialize(char,bitmap,opacity,plus,hs)
    sync(char)
    @key = bitmap
    @bitmap = Light_Bitcore[@key].clone
    @range = @bitmap.width/2
    @w = @bitmap.width
    @h = @bitmap.height
    @mr = @range - 16
    @opacity = opacity
    @plus = plus
    @hs = hs
    render if @hs
  end
  def render
    tx = x
    ty = y
    tsx = x + @range
    tsy = y + @range
    dr = @range*2
    for s in $game_map.surfaces
      next if !s.visible?(tsx,tsy) || !s.within?(tx,tx+dr,ty,ty+dr)
      s.render_shadow(tx,ty,tsx,tsy,@range,@bitmap)
    end
  end
  def restore
    return unless @bitmap.nil?
    @bitmap = Light_Bitcore[@key].clone
    render if @hs
  end
  def opacity
    @plus == 0 ? @opacity : (@opacity + rand(@plus))
  end
  def sx
    return $game_map.adjust_x(@real_x)*32-@mr
  end
  def sy
    return $game_map.adjust_y(@real_y)*32-@mr
  end
  def sync(char)
    @real_x = char.real_x
    @real_y = char.real_y
  end
  def x
    return (@real_x*32 - @mr).to_f
  end
  def y
    return (@real_y*32 - @mr).to_f
  end
  def dispose
    return if @bitmap.nil?
    @bitmap.dispose
    @bitmap = nil
  end
end
class Light_DSource < Light_SSource
  attr_reader :bitmap
  attr_reader :visible
  def initialize
    @key = nil
    @bitmap = nil
    @opacity = 255
    @plus = 0
    @char = $game_player
    @visible = false
  end
  def set_opacity(o,p)
    @opacity = o
    @plus = p
  end
  def set_graphic(sb)
    dispose
    @key = {2=>sb,4=>sb,6=>sb,8=>sb}
    Light_Bitcore.push(sb)
    @bitmap = {2=>Light_Bitcore[@key[2]].clone,4=>Light_Bitcore[@key[4]].clone,6=>Light_Bitcore[@key[6]].clone,8=>Light_Bitcore[@key[8]].clone}
    @range = @bitmap[2].width/2
    @w = @bitmap[2].width
    @h = @bitmap[2].height
    @mr = @range - 16
  end
  def set_multiple_graphics(ba)
    dispose
    @key = ba
    @key.values.each {|key| Light_Bitcore.push(key)}
    @bitmap = {2=>Light_Bitcore[@key[2]].clone,4=>Light_Bitcore[@key[4]].clone,6=>Light_Bitcore[@key[6]].clone,8=>Light_Bitcore[@key[8]].clone}
    @range = @bitmap[2].width/2
    @w = @bitmap[2].width
    @h = @bitmap[2].height
    @mr = @range - 16
  end
  def get_graphic
    return @bitmap[@char.direction].clone
  end
  def show
    return if @bitmap.nil?
    @visible = true
  end
  def hide
    @visible = false
  end
  def restore
    return if @key.nil?
    @key.values.each {|key| Light_Bitcore.push(key)}
    @bitmap = {2=>Light_Bitcore[@key[2]].clone,4=>Light_Bitcore[@key[4]].clone,6=>Light_Bitcore[@key[6]].clone,8=>Light_Bitcore[@key[8]].clone}
  end
  def dispose
    return if @bitmap.nil?
    @bitmap.values.each { |b| b.dispose }
    @bitmap = nil
  end
  def change_owner(char)
    @char = char
  end
  def render
  end
  def sx
    return $game_map.adjust_x(@char.real_x)*32-@mr
  end
  def sy
    return $game_map.adjust_y(@char.real_y)*32-@mr
  end
  def x
    return (@char.real_x*32 - @mr).to_f
  end
  def y
    return (@char.real_y*32 - @mr).to_f
  end
end
class Light_Surface
  def initialize
    @ta = @a = 0
    @tr = @r = 255
    @tg = @g = 255
    @tb = @b = 255
    @va = @vr = @vg = @vb = 0.0
    @timer = 0
  end
  def refresh
    return if @timer == 0
    @a += @va
    @r += @vr
    @g += @vg
    @b += @vb
    $game_map.light_surface.opacity = @a
    @timer -= 1
  end
  def change_color(time,r,g,b,a=nil)
    r = 0 if r < 0; r = 255 if r > 255
    g = 0 if g < 0; g = 255 if g > 255
    b = 0 if b < 0; b = 255 if b > 255
    unless a.nil?
      a = 0 if a < 0; a = 255 if a > 255
    end
    @timer = time
    @tr = 255-r
    @tg = 255-g
    @tb = 255-b
    @va = (a.nil? ? 0 : (a-@a).to_f/@timer)
    @vr = (@tr - @r).to_f/@timer
    @vg = (@tg - @g).to_f/@timer
    @vb = (@tb - @b).to_f/@timer
  end
  def change_alpha(time,a)
    a = 0 if a < 0; a = 255 if a > 255
    @timer = time
    @ta = a
    @vr = @vg = @vb = 0.0
    @va = (a-@a).to_f/@timer
  end
  def set_color(r,g,b)
    r = 0 if r < 0; r = 255 if r > 255
    g = 0 if g < 0; g = 255 if g > 255
    b = 0 if b < 0; b = 255 if b > 255
    @tr = @r = 255-r
    @tg = @g = 255-g
    @tb = @b = 255-b
    @va = @vr = @vg = @vb = 0.0
    @timer = 0
  end
  def set_alpha(a)
    a = 0 if a < 0; a = 255 if a > 255
    @ta = @a = a
    $game_map.light_surface.opacity = @a
    @va = @vr = @vg = @vb = 0.0
    @timer = 0
  end
  def alpha
    return @a
  end
  def color
    return Color.new(@r,@g,@b)
  end
end
class Game_Map
  include Light_Core
  attr_accessor :light_surface
  attr_accessor :light_sources
  attr_accessor :surfaces
  attr_accessor :effect_surface
  attr_accessor :lantern
  alias kbl_setup_events setup_events
  alias kbl_initialize initialize
  alias kbl_update update
  def initialize
    kbl_initialize
    @effect_surface = Light_Surface.new
    @lantern = Light_DSource.new
  end
  def update(arg)
    @effect_surface.refresh if arg
    kbl_update(arg)
  end
  def first_tag(x,y)
    tag = tileset.flags[tile_id(x,y,0)] >> 12
    return tag > 0 ? tag : 0
  end
  def setup_events
    @light_sources.nil? ? @light_sources = [] : @light_sources.clear
    setup_surfaces
    merge_surfaces
    kbl_setup_events
  end
  def setup_surfaces
    @surfaces = []
    for x in 0..(width-1)
      for y in 0..(height-1)
        tag = first_tag(x,y)
        if tag == Wall_Tag
          i = tile_id(x,y,0)
          if i & 0x02 == 0x02
            @surfaces << Block_SD.new(x*32,y*32,x*32+32,y*32)
          end
          if i & 0x04 == 0x04
            @surfaces << Block_WR.new(x*32+31,y*32,x*32+31,y*32+32)
            @surfaces << Block_IL.new(x*32+32,y*32,x*32+32,y*32+32)
          end
          if i & 0x01 == 0x01
            @surfaces << Block_IR.new(x*32-1,y*32,x*32-1,y*32+32)
            @surfaces << Block_WL.new(x*32,y*32,x*32,y*32+32)
          end
        elsif tag == Roof_Tag
          i = tile_id(x,y,0)
          @surfaces << Block_SU.new(x*32,y*32,x*32+32,y*32) if i & 0x02 == 0x02
          @surfaces << Block_SR.new(x*32+31,y*32,x*32+31,y*32+32) if i & 0x04 == 0x04
          @surfaces << Block_SL.new(x*32,y*32,x*32,y*32+32) if i & 0x01 == 0x01
        elsif tag == Block_Tag
          f = tileset.flags[tile_id(x,y,0)]
          @surfaces << Block_SL.new(x*32,y*32,x*32,y*32+32) if f & 0x02 == 0x02
          @surfaces << Block_SR.new(x*32+31,y*32,x*32+31,y*32+32) if f & 0x04 == 0x04
          @surfaces << Block_SU.new(x*32,y*32,x*32+32,y*32) if f & 0x08 == 0x08
        end
      end
    end
  end
  def merge_surfaces
    new_surfaces = []
    hs = []; vs = []
    ws = []; is = []
    for surface in @surfaces
      if surface.type & 0x05 == 0
        hs << surface
      else
        if surface.type & 0x010 == 0
          vs << surface
        else
          if surface.type & 0x08 == 0
            ws << surface
          else
            is << surface
          end
        end
      end
    end
    for surface in hs
      surface.ready ? next : surface.ready = true
      for s in hs
        next if s.ready || s.y1 != surface.y1 || surface.type != s.type
        if s.x2 == surface.x1
          surface.x1 = s.x1
          s.trash = true
          s.ready = true
          surface.ready = false
        elsif s.x1 == surface.x2
          surface.x2 = s.x2
          s.trash = true
          s.ready = true
          surface.ready = false
        end
      end
    end
    hs.each { |s| @surfaces.delete(s) if s.trash}
    for surface in vs
      surface.ready ? next : surface.ready
      for s in vs
        next if s.ready || s.x1 != surface.x1
        if s.y2 == surface.y1
          surface.y1 = s.y1
          s.trash = true
          s.ready = true
          surface.ready = false
        elsif s.y1 == surface.y2
          surface.y2 = s.y2
          s.trash = true
          s.ready = true
          surface.ready = false
        end
      end
    end
    vs.each { |s| @surfaces.delete(s) if s.trash}
    for surface in ws
      surface.ready ? next : surface.ready
      for s in ws
        next if s.ready || s.x1 != surface.x1
        if s.y2 == surface.y1
          surface.y1 = s.y1
          s.trash = true
          s.ready = true
          surface.ready = false
        elsif s.y1 == surface.y2
          surface.y2 = s.y2
          s.trash = true
          s.ready = true
          surface.ready = false
        end
      end
    end
    ws.each { |s| @surfaces.delete(s) if s.trash}
    for surface in is
      surface.ready ? next : surface.ready
      for s in is
        next if s.ready || s.x1 != surface.x1
        if s.y2 == surface.y1
          surface.y1 = s.y1
          s.trash = true
          s.ready = true
          surface.ready = false
        elsif s.y1 == surface.y2
          surface.y2 = s.y2
          s.trash = true
          s.ready = true
          surface.ready = false
        end
      end
    end
    is.each { |s| @surfaces.delete(s) if s.trash}
  end
end
class Game_Event < Game_Character
  alias kbl_initialize initialize
  alias kbl_setup_page setup_page
  def initialize(m,e)
    @light = nil
    kbl_initialize(m,e)
  end
  def setup_page(np)
    kbl_setup_page(np)
    setup_light(np.nil?)
  end
  def setup_light(dispose)
    unless @light.nil?
      $game_map.light_sources.delete(self)
      @light.dispose
      @light = nil
    end
    unless dispose && @list.nil?
      for command in @list
        if command.code == 108 && command.parameters[0].include?("[light")
          command.parameters[0].scan(/\[light ([0.0-9.9]+)\]/)
          effect = Light_Core::Effects[$1.to_i]
          @light = Light_SSource.new(self,effect[0],effect[1],effect[2],effect[3])
          $game_map.light_sources << self
          return
        end
      end
    end
  end
  def draw_light
    sx = @light.sx
    sy = @light.sy
    w = @light.w
    h = @light.h
    return if sx > 544 && sy > 416 && sx + w < 0 && sy + h < 0
    $game_map.light_surface.bitmap.blt(sx,sy,@light.bitmap,Rect.new(0,0,w,h),@light.opacity)
  end
  def dispose_light
    @light.dispose
  end
  def restore_light
    @light.restore
  end
end
if Light_Core::Surface_UE
  class Game_Interpreter
    def command_223
      $game_map.effect_surface.change_color(@params[1],@params[0].red,@params[0].green,@params[0].blue,@params[0].gray)
      wait(@params[1]) if @params[2]
    end
  end
end
class Game_Interpreter
  def self_event
    return $game_map.events[@event_id]
  end
end
class Block_Surface
  include Light_Core
  attr_accessor :x1
  attr_accessor :y1
  attr_accessor :x2
  attr_accessor :y2
  attr_accessor :ready
  attr_accessor :trash
  def initialize(x1,y1,x2,y2)
    @x1 = x1
    @y1 = y1
    @x2 = x2
    @y2 = y2
    @ready = false
    @trash = false
  end
  def within?(min_x,max_x,min_y,max_y)
    return @x2 > min_x && @x1 < max_x && @y2 > min_y && @y1 < max_y
  end
end
class Block_SL < Block_Surface
  attr_reader :type
  def initialize(x1,y1,x2,y2)
    super(x1,y1,x2,y2)
    @type = 0x01
  end
  def visible?(sx,sy)
    return sx < @x1
  end
  def render_shadow(phx,phy,sx,sy,range,bitmap)
    @m1 = (@y1-sy)/(@x1-sx)
    @n1 = sy - @m1*sx
    @m2 = (@y2-sy)/(@x2-sx)
    @n2 = sy - @m2*sx
    for x in @x1..(sx+range)
      init = shadow_iy(x)
      bitmap.clear_rect(x-phx,init-phy,1,shadow_fy(x)-init+3)
    end
  end
  def shadow_iy(x)
    return @m1*x+@n1
  end
  def shadow_fy(x)
    return @m2*x+@n2
  end
end
class Block_SR < Block_Surface
  attr_reader :type
  def initialize(x1,y1,x2,y2)
    super(x1,y1,x2,y2)
    @type = 0x04
  end
  def visible?(sx,sy)
    return sx > @x1
  end
  def render_shadow(phx,phy,sx,sy,range,bitmap)
    @m1 = (@y1-sy)/(@x1-sx)
    @n1 = sy - @m1*sx
    @m2 = (@y2-sy)/(@x2-sx)
    @n2 = sy - @m2*sx
    for x in (sx-range).to_i..@x1
      init = shadow_iy(x)
      bitmap.clear_rect(x-phx,init-phy,1,shadow_fy(x)-init+3)
    end
  end
  def shadow_iy(x)
    return @m1*x+@n1
  end
  def shadow_fy(x)
    return @m2*x+@n2
  end
end
class Block_IL < Block_Surface
  attr_reader :type
  def initialize(x1,y1,x2,y2)
    super(x1,y1,x2,y2)
    @type = 0x019
  end
  def visible?(sx,sy)
    return sx < @x1 && sy > @y1
  end
  def render_shadow(phx,phy,sx,sy,range,bitmap)
    @m1 = (@y1-sy)/(@x1-sx)
    @n1 = @y1 - @m1*@x1
    @m2 = (@y2-sy)/(@x2-sx)
    @m2 = 0 if @m2 > 0
    @n2 = @y2 - @m2*@x2
    for x in @x1..(sx+range)
      init = shadow_iy(x).floor
      bitmap.clear_rect(x-phx,init-3-phy,1,shadow_fy(x)-init+3)
    end
  end
  def shadow_iy(x)
    return @m1*x+@n1
  end
  def shadow_fy(x)
    return @m2*x+@n2
  end
end
class Block_IR < Block_Surface
  attr_reader :type
  def initialize(x1,y1,x2,y2)
    super(x1,y1,x2,y2)
    @type = 0x01c
  end
  def visible?(sx,sy)
    return sx > @x1 && sy > @y1
  end
  def render_shadow(phx,phy,sx,sy,range,bitmap)
    @m1 = (@y1-sy)/(@x1-sx)
    @n1 = @y1 - @m1*@x1
    @m2 = (@y2-sy)/(@x2-sx)
    @m2 = 0 if @m2 < 0
    @n2 = @y2 - @m2*@x2
    for x in (sx-range).to_i..@x1
      init = shadow_iy(x).floor
      bitmap.clear_rect(x-phx,init-3-phy,1,shadow_fy(x)-init+3)
    end
  end
  def shadow_iy(x)
    return @m1*x+@n1
  end
  def shadow_fy(x)
    return @m2*x+@n2
  end
end
class Block_WL < Block_Surface
  attr_reader :type
  def initialize(x1,y1,x2,y2)
    super(x1,y1,x2,y2)
    @type = 0x011
  end
  def visible?(sx,sy)
    return sx < @x1 && sy < @y2
  end
  def render_shadow(phx,phy,sx,sy,range,bitmap)
    @m1 = (@y1-sy)/(@x1-sx)
    @n1 = sy - @m1*sx
    @m2 = (@y2-sy)/(@x2-sx)
    @n2 = sy - @m2*sx
    for x in @x1..(sx+range)
      init = shadow_iy(x)
      bitmap.clear_rect(x-phx,init-phy,1,shadow_fy(x)-init+2)
    end
  end
  def shadow_iy(x)
    return @m1*x+@n1
  end
  def shadow_fy(x)
    return @m2*x+@n2
  end
end
class Block_WR < Block_Surface
  attr_reader :type
  def initialize(x1,y1,x2,y2)
    super(x1,y1,x2,y2)
    @type = 0x014
  end
  def visible?(sx,sy)
    return sx > @x1 && sy < @y2
  end
  def render_shadow(phx,phy,sx,sy,range,bitmap)
    @m1 = (@y1-sy)/(@x1-sx)
    @n1 = sy - @m1*sx
    @m2 = (@y2-sy)/(@x2-sx)
    @n2 = sy - @m2*sx
    for x in (sx-range).to_i..@x1
      init = shadow_iy(x)
      bitmap.clear_rect(x-phx,init-phy,1,shadow_fy(x)-init+2)
    end
  end
  def shadow_iy(x)
    return @m1*x+@n1
  end
  def shadow_fy(x)
    return @m2*x+@n2
  end
end
class Block_SU < Block_Surface
  attr_reader :type
  def initialize(x1,y1,x2,y2)
    super(x1,y1,x2,y2)
    @type = 0x02
  end
  def visible?(sx,sy)
    return sy < @y1
  end
  def render_shadow(phx,phy,sx,sy,range,bitmap)
    if @x1 == sx
      @m1 = nil
    else
      @m1 = (@y1-sy)/(@x1-sx)
      @m1 += ACC if @m1 < -ACC
      @n1 = @y1 - @m1*@x1
    end
    if @x2 == sx
      @m2 = nil
    else
      @m2 = (@y2-sy)/(@x2-sx)
      @n2 = sy - @m2*sx
    end
    for y in @y1..(sy+range)
      init = shadow_ix(y)
      bitmap.clear_rect(init-phx,y-phy,shadow_fx(y)-init+1,1)
    end
  end
  def shadow_ix(y)
    return @m1.nil? ? @x1 : (y-@n1)/@m1
  end
  def shadow_fx(y)
    return @m2.nil? ? @x2 : (y-@n2)/@m2
  end
end
class Block_SD < Block_Surface
  attr_reader :type
  def initialize(x1,y1,x2,y2)
    super(x1,y1,x2,y2)
    @type = 0x08
  end
  def visible?(sx,sy)
    return sy > @y1
  end
  def render_shadow(phx,phy,sx,sy,range,bitmap)
    if @x1 == sx
      @m1 = nil
    else
      @m1 = (@y1-sy)/(@x1-sx)
      @m1 -= ACC if @m1 > ACC
      @n1 = sy - @m1*sx
    end
    if x2 == sx
      @m2 = nil
    else
      @m2 = (@y2-sy)/(@x2-sx)
      @n2 = sy - @m2*sx
    end
    for y in (sy-range).to_i..@y1
      init = shadow_ix(y)
      bitmap.clear_rect(init-phx,y-phy,shadow_fx(y)-init+1,1)
    end
  end
  def shadow_ix(y)
    return @m1.nil? ? @x1 : (y-@n1)/@m1
  end
  def shadow_fx(y)
    return @m2.nil? ? @x2 : (y-@n2)/@m2
  end
end
class Spriteset_Map
  include Light_Core
  alias kbl_initialize initialize
  alias kbl_update update
  alias kbl_dispose dispose
  def initialize
    setup_lights
    kbl_initialize
  end
  def update
    kbl_update
    update_lights
  end
  def dispose
    kbl_dispose
    dispose_lights
  end
  def dispose_lights
    $game_map.lantern.dispose
    $game_map.light_sources.each { |source| source.dispose_light }
    $game_map.light_surface.bitmap.dispose
    $game_map.light_surface.dispose
    $game_map.light_surface = nil
  end
  def update_lights
    $game_map.light_surface.bitmap.clear
    $game_map.light_surface.bitmap.fill_rect(0,0,544,416,$game_map.effect_surface.color)
    $game_map.light_sources.each { |source| source.draw_light }
    return unless $game_map.lantern.visible
    @btr = $game_map.lantern.get_graphic
    x = $game_map.lantern.x
    y = $game_map.lantern.y
    r = $game_map.lantern.range
    sx = x + r
    sy = y + r
    dr = r*2
    $game_map.surfaces.each { |s| s.render_shadow(x,y,sx,sy,r,@btr) if s.visible?(sx,sy) && s.within?(x,x+dr,y,y+dr) }
    $game_map.light_surface.bitmap.blt($game_map.lantern.sx,$game_map.lantern.sy,@btr,Rect.new(0,0,dr,dr),$game_map.lantern.opacity)
  end
  def setup_lights
    @btr = nil
    $game_map.lantern.restore
    $game_map.light_sources.each { |source| source.restore_light }
    $game_map.light_surface = Sprite.new
    $game_map.light_surface.bitmap = Bitmap.new(544,416)
    $game_map.light_surface.bitmap.fill_rect(0,0,544,416,$game_map.effect_surface.color)
    $game_map.light_surface.blend_type = 2
    $game_map.light_surface.opacity = $game_map.effect_surface.alpha
    $game_map.light_surface.z = Surface_Z
  end
end

Cupidk爱呗茶

小改了一点 刚刚稍微测试了下 在640X480或者更高分辨率下光源暂时没有任何问题了  可以随着分辨率提高而自适应描绘的大小，以后在更换分辨率就不会出现类似的情况啦

1. #-------------------------------------------------------------------------------

2. # * [ACE] Khas Awesome Light Effects

3. #-------------------------------------------------------------------------------

4. # * By Khas Arcthunder - arcthunder.site40.net

5. # * Version: 1.0 EN

6. # * Released on: 17/01/2012

7. #

8. #-------------------------------------------------------------------------------

9. # * Terms of Use

10. #-------------------------------------------------------------------------------

11. # When using any Khas script, you agree with the following terms:

12. # 1. You must give credit to Khas;

13. # 2. All Khas scripts are licensed under a Creative Commons license;

14. # 3. All Khas scripts are for non-commercial projects. If you need some script

15. #    for your commercial project (I accept requests for this type of project),

16. #    send an email to [email protected] with your request;

17. # 4. All Khas scripts are for personal use, you can use or edit for your own

18. #    project, but you are not allowed to post any modified version;

19. # 5. You can’t give credit to yourself for posting any Khas script;

20. # 6. If you want to share a Khas script, don’t post the direct download link,

21. #    please redirect the user to arcthunder.site40.net

22. #

23. #-------------------------------------------------------------------------------

24. # * Features

25. #-------------------------------------------------------------------------------

26. # - Realistic Light

27. # - Light does not pass over walls, blocks and roofs

28. # - Static Light Sources

29. # - Dynamic Light Sources (like a player's lantern)

30. # - Multiple effects

31. # - Easy to use (comments)

32. #

33. #-------------------------------------------------------------------------------

34. # * WARNING - Performance

35. #-------------------------------------------------------------------------------

36. # This script may be too heavy to old processors! The Awesome Light Effects was

37. # tested on a Core 2 Duo E4500 and on a Core i5, without any lag. However,

38. # there's other factors that may influence the script performance:

39. #

40. # 1. Map size

41. # This script searches surfaces on the map, in order to cut the light pictures.

42. # In a huge map, the number of surfaces may increase a lot, affecting the

43. # DYNAMIC LIGHT SOURCE only. Map size does not influence the static sources.

44. #

45. # 2. Number of effects

46. # This script draws the effects on the screen, but before drawing, it checks

47. # if the effect is out of screen (in this case, the script will skip the

48. # light drawing). Too much effects may cause lag, but this is just a prevision.

49. #

50. # 3. Effect's picture size

51. # The picture size of the DYNAMIC LIGHT SOURCE influences directly on your

52. # game's performace. The bigger is the picture, the slower it will be to

53. # draw it dynamically. The recommended maximum size is 200x200 pixels

54. #

55. #-------------------------------------------------------------------------------

56. # * WARNING - Light pictures

57. #-------------------------------------------------------------------------------

58. # In order to run this script correctly, the light pictures MUST obey the

59. # following conditions:

60. # 1. The picture's size MUST be multiple of 2. Example: 150x150

61. # 2. The picture's width MUST be equal to it's height. Example: 156x156

62. # 3. The picture's colors MUST be inverted! This is necessary because

63. #    the script inverts the colors to draw the effect. The black color

64. #    will be transparent!

65. #

66. #-------------------------------------------------------------------------------

67. # * Instructions - 1. Setup your effects!

68. #-------------------------------------------------------------------------------

69. # In order to setup your static effects, go to the setup part and define your

70. # effects inside the Effects hash. Do as the following mode:

71. #

72. # X => [picture,opacity,variation,cut],   <= Remember to put a comma here!

73. #

74. # Where:

75. # picture => Picture's name, inside the Graphics/Lights folder;

76. # opacity => Effect's opacity;

77. # variation => Effect's opacity variation;

78. # cut => Put true to cut the effect or false to don't;

79. # X => The effect's ID, it will be used on events.

80. #

81. # Check the default effects to understand how they work.

82. #

83. #-------------------------------------------------------------------------------

84. # * Instructions - 2. Use your effects!

85. #-------------------------------------------------------------------------------

86. # In order to use a effect, put the following comment on a event:

87. #

88. # [light x]

89. #

90. # Where x must be the Effect's ID.

91. #

92. #-------------------------------------------------------------------------------

93. # * Instructions - 3. Use an awesome lantern!

94. #-------------------------------------------------------------------------------

95. # The dynamic light source (lantern) is initialized invisible by default.

96. # You may call the following commands:

97. #

98. # l = $game_map.lantern

99. # Gets the lantern into a variable

100.

101. # l.set_graphic(i)

102. # Sets the lantern's graphic to i, where i must be the picture's file name on

103. # Graphics/Lights folder.

104. #

105. # l.set_multiple_graphics(h)

106. # Sets the lantern's graphics to h, where h must be a hash with the following

107. # structure:

108. #

109. # h = {2=>"ld",4=>"ll",6=>"lr",8=>"lu"}

110. #

111. # Where:

112. # "ld" is the name of the picture when the lantern's owner is looking down;

113. # "ll" is the name of the picture when the lantern's owner is looking left;

114. # "lr" is the name of the picture when the lantern's owner is looking right;

115. # "lu" is the name of the picture when the lantern's owner is looking up.

116. #

117. # l.change_owner(char)

118. # Sets the lantern's owner to char. Char must be ONE of the following commands:

119. # $game_player           <= The player itself;

120. # self_event             <= The event where the command was called;

121. # $game_map.events[x]    <= The event ID x.

122. #

123. # l.set_opacity(o,p)

124. # Sets the lantern's opacity, where:

125. # o is the opacity itself;

126. # p is the opacity variation.

127. #

128. # l.show

129. # After setting the lantern with the commands above, you may set it to visible

130. # using this command.

131. #

132. # l.hide

133. # Use this command to set the lantern as invisible.

134. #

135. #-------------------------------------------------------------------------------

136. # * Instructions - 4. Use the effect's surface!

137. #-------------------------------------------------------------------------------

138. # The Awesome Light Effects draws the effects on a surface. In order to make

139. # the effects visible, the effect's surface MUST be visible. The Effect's

140. # Surface is initialized with it's opacity set to zero. You can call the

141. # following commands:

142. #

143. # s = $game_map.effect_surface

144. # Gets the Effect's Surface into a variable

145. #

146. # s.set_color(r,g,b)

147. # Changes the Effect's Surface color instantly, where:

148. # r => red level;

149. # g => green level;

150. # b => blue level;

151. #

152. # s.set_alpha(a)

153. # Changes the Effect's Surface opacity instantly to a.

154. #

155. # s.change_color(time,r,g,b)

156. # Changes the Effect's Surface color ONLY in a certain time, where:

157. # time => The change's time (frames);

158. # r => red level;

159. # g => green level;

160. # b => blue level;

161. #

162. # s.change_color(time,r,g,b,a)

163. # Changes the Effect's Surface color and it's opacity in a certain time, where:

164. # time => The change's time (frames);

165. # r => red level;

166. # g => green level;

167. # b => blue level;

168. # a => opacity

169. #

170. # s.change_alpha(time,a)

171. # Changes the Effect's Surface opacity in a certain time, where:

172. # time => The change's time (frames);

173. # a => opacity

174. #

175. #-------------------------------------------------------------------------------

176. # * Instructions - 5. Use the effect's surface with Tone command!

177. #-------------------------------------------------------------------------------

178. # You can access the Effect's Surface with the "Screen Tone" command. In order

179. # to turn this feature on, set the "Surface_UE" constant to true.

180. #

181. # If you decided to use this feature, please note some details:

182. # 1. The colors values must be between 0 and 255;

183. # 2. The time is in frames;

184. # 3. The "gray" value will be sent as the opacity value

185. #

186. #-------------------------------------------------------------------------------

187. # * Instructions - 6. Setup your Tileset Tags!

188. #-------------------------------------------------------------------------------

189. # In order to cut the effect's picture correctly, there's 3 types of behavior

190. # for a tile: wall, block and roof. Walls will make shadows as real walls,

191. # blocks as blocks and roofs as roofs. So, the tileset tags MUST be configured.

192. # Check the demo to understand how this system works. If the tilesets aren't

193. # configured correctly, the script won't cut the effects correctly.

194. #

195. #-------------------------------------------------------------------------------

196. # * Setup Part

197. #-------------------------------------------------------------------------------

198. module Light_Core

199.   Effects = { #  <= DON'T change this!

200. #-------------------------------------------------------------------------------

201. # PUT YOUR EFFECTS HERE!

202. #-------------------------------------------------------------------------------

203.   0 => ["light_m",255,0,true],

204.   1 => ["torch",200,20,true],

205.   2 => ["torch_m",180,30,true],

206.   3 => ["light_s",255,0,true],

207.

208. #-------------------------------------------------------------------------------

209. # End of effecs configuration

210. #-------------------------------------------------------------------------------

211.   } #  <= DON'T change this!

212.

213.   # Z coordinate of the Effect's Surface

214.   Surface_Z = 180

215.

216.   # Enable Effect's Surface control by "Screen Tone" command?

217.   Surface_UE = true

218.

219.   # Roof behavior tag

220.   Roof_Tag = 5

221.   # Wall behavior tag

222.   Wall_Tag = 6

223.   # Block behavior tag

224.   Block_Tag = 7

225.

226.   # Don't change this!

227.   ACC = Math.tan(Math::PI/26)

228. end

229. #-------------------------------------------------------------------------------

230. # Script

231. #-------------------------------------------------------------------------------

232. module Cache

233.   def self.light(filename)

234.     load_bitmap("Graphics/Lights/", filename)

235.   end

236. end

237. module Light_Bitcore

238.   include Light_Core

239.   def self.initialize

240.     @@buffer = {}

241.     Effects.values.each { |effect| Light_Bitcore.push(effect[0])}

242.   end

243.   def self::[](key)

244.     return @@buffer[key]

245.   end

246.   def self.push(key)

247.     return if @@buffer.keys.include?(key)

248.     @@buffer[key] = Cache.light(key)

249.   end

250. end

251. Light_Bitcore.initialize

252. class Light_SSource

253.   attr_reader :real_x

254.   attr_reader :real_y

255.   attr_reader :range

256.   attr_accessor :bitmap

257.   attr_reader :w

258.   attr_reader :h

259.   attr_reader :hs

260.   def initialize(char,bitmap,opacity,plus,hs)

261.     sync(char)

262.     @key = bitmap

263.     @bitmap = Light_Bitcore[@key].clone

264.     @range = @bitmap.width/2

265.     @w = @bitmap.width

266.     @h = @bitmap.height

267.     @mr = @range - 16

268.     @opacity = opacity

269.     @plus = plus

270.     @hs = hs

271.     render if @hs

272.   end

273.   def render

274.     tx = x

275.     ty = y

276.     tsx = x + @range

277.     tsy = y + @range

278.     dr = @range*2

279.     for s in $game_map.surfaces

280.       next if !s.visible?(tsx,tsy) || !s.within?(tx,tx+dr,ty,ty+dr)

281.       s.render_shadow(tx,ty,tsx,tsy,@range,@bitmap)

282.     end

283.   end

284.   def restore

285.     return unless @bitmap.nil?

286.     @bitmap = Light_Bitcore[@key].clone

287.     render if @hs

288.   end

289.   def opacity

290.     @plus == 0 ? @opacity : (@opacity + rand(@plus))

291.   end

292.   def sx

293.     return $game_map.adjust_x(@real_x)*32-@mr

294.   end

295.   def sy

296.     return $game_map.adjust_y(@real_y)*32-@mr

297.   end

298.   def sync(char)

299.     @real_x = char.real_x

300.     @real_y = char.real_y

301.   end

302.   def x

303.     return (@real_x*32 - @mr).to_f

304.   end

305.   def y

306.     return (@real_y*32 - @mr).to_f

307.   end

308.   def dispose

309.     return if @bitmap.nil?

310.     @bitmap.dispose

311.     @bitmap = nil

312.   end

313. end

314. class Light_DSource < Light_SSource

315.   attr_reader :bitmap

316.   attr_reader :visible

317.   def initialize

318.     @key = nil

319.     @bitmap = nil

320.     @opacity = 255

321.     @plus = 0

322.     @char = $game_player

323.     @visible = false

324.   end

325.   def set_opacity(o,p)

326.     @opacity = o

327.     @plus = p

328.   end

329.   def set_graphic(sb)

330.     dispose

331.     @key = {2=>sb,4=>sb,6=>sb,8=>sb}

332.     Light_Bitcore.push(sb)

333.     @bitmap = {2=>Light_Bitcore[@key[2]].clone,4=>Light_Bitcore[@key[4]].clone,6=>Light_Bitcore[@key[6]].clone,8=>Light_Bitcore[@key[8]].clone}

334.     @range = @bitmap[2].width/2

335.     @w = @bitmap[2].width

336.     @h = @bitmap[2].height

337.     @mr = @range - 16

338.   end

339.   def set_multiple_graphics(ba)

340.     dispose

341.     @key = ba

342.     @key.values.each {|key| Light_Bitcore.push(key)}

343.     @bitmap = {2=>Light_Bitcore[@key[2]].clone,4=>Light_Bitcore[@key[4]].clone,6=>Light_Bitcore[@key[6]].clone,8=>Light_Bitcore[@key[8]].clone}

344.     @range = @bitmap[2].width/2

345.     @w = @bitmap[2].width

346.     @h = @bitmap[2].height

347.     @mr = @range - 16

348.   end

349.   def get_graphic

350.     return @bitmap[@char.direction].clone

351.   end

352.   def show

353.     return if @bitmap.nil?

354.     @visible = true

355.   end

356.   def hide

357.     @visible = false

358.   end

359.   def restore

360.     return if @key.nil?

361.     @key.values.each {|key| Light_Bitcore.push(key)}

362.     @bitmap = {2=>Light_Bitcore[@key[2]].clone,4=>Light_Bitcore[@key[4]].clone,6=>Light_Bitcore[@key[6]].clone,8=>Light_Bitcore[@key[8]].clone}

363.   end

364.   def dispose

365.     return if @bitmap.nil?

366.     @bitmap.values.each { |b| b.dispose }

367.     @bitmap = nil

368.   end

369.   def change_owner(char)

370.     @char = char

371.   end

372.   def render

373.   end

374.   def sx

375.     return $game_map.adjust_x(@char.real_x)*32-@mr

376.   end

377.   def sy

378.     return $game_map.adjust_y(@char.real_y)*32-@mr

379.   end

380.   def x

381.     return (@char.real_x*32 - @mr).to_f

382.   end

383.   def y

384.     return (@char.real_y*32 - @mr).to_f

385.   end

386. end

387. class Light_Surface

388.   def initialize

389.     @ta = @a = 0

390.     @tr = @r = 255

391.     @tg = @g = 255

392.     @tb = @b = 255

393.     @va = @vr = @vg = @vb = 0.0

394.     @timer = 0

395.   end

396.   def refresh

397.     return if @timer == 0

398.     @a += @va

399.     @r += @vr

400.     @g += @vg

401.     @b += @vb

402.     $game_map.light_surface.opacity = @a

403.     @timer -= 1

404.   end

405.   def change_color(time,r,g,b,a=nil)

406.     r = 0 if r < 0; r = 255 if r > 255

407.     g = 0 if g < 0; g = 255 if g > 255

408.     b = 0 if b < 0; b = 255 if b > 255

409.     unless a.nil?

410.       a = 0 if a < 0; a = 255 if a > 255

411.     end

412.     @timer = time

413.     @tr = 255-r

414.     @tg = 255-g

415.     @tb = 255-b

416.     @va = (a.nil? ? 0 : (a-@a).to_f/@timer)

417.     @vr = (@tr - @r).to_f/@timer

418.     @vg = (@tg - @g).to_f/@timer

419.     @vb = (@tb - @b).to_f/@timer

420.   end

421.   def change_alpha(time,a)

422.     a = 0 if a < 0; a = 255 if a > 255

423.     @timer = time

424.     @ta = a

425.     @vr = @vg = @vb = 0.0

426.     @va = (a-@a).to_f/@timer

427.   end

428.   def set_color(r,g,b)

429.     r = 0 if r < 0; r = 255 if r > 255

430.     g = 0 if g < 0; g = 255 if g > 255

431.     b = 0 if b < 0; b = 255 if b > 255

432.     @tr = @r = 255-r

433.     @tg = @g = 255-g

434.     @tb = @b = 255-b

435.     @va = @vr = @vg = @vb = 0.0

436.     @timer = 0

437.   end

438.   def set_alpha(a)

439.     a = 0 if a < 0; a = 255 if a > 255

440.     @ta = @a = a

441.     $game_map.light_surface.opacity = @a

442.     @va = @vr = @vg = @vb = 0.0

443.     @timer = 0

444.   end

445.   def alpha

446.     return @a

447.   end

448.   def color

449.     return Color.new(@r,@g,@b)

450.   end

451. end

452. class Game_Map

453.   include Light_Core

454.   attr_accessor :light_surface

455.   attr_accessor :light_sources

456.   attr_accessor :surfaces

457.   attr_accessor :effect_surface

458.   attr_accessor :lantern

459.   alias kbl_setup_events setup_events

460.   alias kbl_initialize initialize

461.   alias kbl_update update

462.   def initialize

463.     kbl_initialize

464.     @effect_surface = Light_Surface.new

465.     @lantern = Light_DSource.new

466.   end

467.   def update(arg)

468.     @effect_surface.refresh if arg

469.     kbl_update(arg)

470.   end

471.   def first_tag(x,y)

472.     tag = tileset.flags[tile_id(x,y,0)] >> 12

473.     return tag > 0 ? tag : 0

474.   end

475.   def setup_events

476.     @light_sources.nil? ? @light_sources = [] : @light_sources.clear

477.     setup_surfaces

478.     merge_surfaces

479.     kbl_setup_events

480.   end

481.   def setup_surfaces

482.     @surfaces = []

483.     for x in 0..(width-1)

484.       for y in 0..(height-1)

485.         tag = first_tag(x,y)

486.         if tag == Wall_Tag

487.           i = tile_id(x,y,0)

488.           if i & 0x02 == 0x02

489.             @surfaces << Block_SD.new(x*32,y*32,x*32+32,y*32)

490.           end

491.           if i & 0x04 == 0x04

492.             @surfaces << Block_WR.new(x*32+31,y*32,x*32+31,y*32+32)

493.             @surfaces << Block_IL.new(x*32+32,y*32,x*32+32,y*32+32)

494.           end

495.           if i & 0x01 == 0x01

496.             @surfaces << Block_IR.new(x*32-1,y*32,x*32-1,y*32+32)

497.             @surfaces << Block_WL.new(x*32,y*32,x*32,y*32+32)

498.           end

499.         elsif tag == Roof_Tag

500.           i = tile_id(x,y,0)

501.           @surfaces << Block_SU.new(x*32,y*32,x*32+32,y*32) if i & 0x02 == 0x02

502.           @surfaces << Block_SR.new(x*32+31,y*32,x*32+31,y*32+32) if i & 0x04 == 0x04

503.           @surfaces << Block_SL.new(x*32,y*32,x*32,y*32+32) if i & 0x01 == 0x01

504.         elsif tag == Block_Tag

505.           f = tileset.flags[tile_id(x,y,0)]

506.           @surfaces << Block_SL.new(x*32,y*32,x*32,y*32+32) if f & 0x02 == 0x02

507.           @surfaces << Block_SR.new(x*32+31,y*32,x*32+31,y*32+32) if f & 0x04 == 0x04

508.           @surfaces << Block_SU.new(x*32,y*32,x*32+32,y*32) if f & 0x08 == 0x08

509.         end

510.       end

511.     end

512.   end

513.   def merge_surfaces

514.     new_surfaces = []

515.     hs = []; vs = []

516.     ws = []; is = []

517.     for surface in @surfaces

518.       if surface.type & 0x05 == 0

519.         hs << surface

520.       else

521.         if surface.type & 0x010 == 0

522.           vs << surface

523.         else

524.           if surface.type & 0x08 == 0

525.             ws << surface

526.           else

527.             is << surface

528.           end

529.         end

530.       end

531.     end

532.     for surface in hs

533.       surface.ready ? next : surface.ready = true

534.       for s in hs

535.         next if s.ready || s.y1 != surface.y1 || surface.type != s.type

536.         if s.x2 == surface.x1

537.           surface.x1 = s.x1

538.           s.trash = true

539.           s.ready = true

540.           surface.ready = false

541.         elsif s.x1 == surface.x2

542.           surface.x2 = s.x2

543.           s.trash = true

544.           s.ready = true

545.           surface.ready = false

546.         end

547.       end

548.     end

549.     hs.each { |s| @surfaces.delete(s) if s.trash}

550.     for surface in vs

551.       surface.ready ? next : surface.ready

552.       for s in vs

553.         next if s.ready || s.x1 != surface.x1

554.         if s.y2 == surface.y1

555.           surface.y1 = s.y1

556.           s.trash = true

557.           s.ready = true

558.           surface.ready = false

559.         elsif s.y1 == surface.y2

560.           surface.y2 = s.y2

561.           s.trash = true

562.           s.ready = true

563.           surface.ready = false

564.         end

565.       end

566.     end

567.     vs.each { |s| @surfaces.delete(s) if s.trash}

568.     for surface in ws

569.       surface.ready ? next : surface.ready

570.       for s in ws

571.         next if s.ready || s.x1 != surface.x1

572.         if s.y2 == surface.y1

573.           surface.y1 = s.y1

574.           s.trash = true

575.           s.ready = true

576.           surface.ready = false

577.         elsif s.y1 == surface.y2

578.           surface.y2 = s.y2

579.           s.trash = true

580.           s.ready = true

581.           surface.ready = false

582.         end

583.       end

584.     end

585.     ws.each { |s| @surfaces.delete(s) if s.trash}

586.     for surface in is

587.       surface.ready ? next : surface.ready

588.       for s in is

589.         next if s.ready || s.x1 != surface.x1

590.         if s.y2 == surface.y1

591.           surface.y1 = s.y1

592.           s.trash = true

593.           s.ready = true

594.           surface.ready = false

595.         elsif s.y1 == surface.y2

596.           surface.y2 = s.y2

597.           s.trash = true

598.           s.ready = true

599.           surface.ready = false

600.         end

601.       end

602.     end

603.     is.each { |s| @surfaces.delete(s) if s.trash}

604.   end

605. end

606. class Game_Event < Game_Character

607.   alias kbl_initialize initialize

608.   alias kbl_setup_page setup_page

609.   def initialize(m,e)

610.     @light = nil

611.     kbl_initialize(m,e)

612.   end

613.   def setup_page(np)

614.     kbl_setup_page(np)

615.     setup_light(np.nil?)

616.   end

617.   def setup_light(dispose)

618.     unless @light.nil?

619.       $game_map.light_sources.delete(self)

620.       @light.dispose

621.       @light = nil

622.     end

623.     unless dispose && @list.nil?

624.       for command in @list

625.         if command.code == 108 && command.parameters[0].include?("[light")

626.           command.parameters[0].scan(/\[light ([0.0-9.9]+)\]/)

627.           effect = Light_Core::Effects[$1.to_i]

628.           @light = Light_SSource.new(self,effect[0],effect[1],effect[2],effect[3])

629.           $game_map.light_sources << self

630.           return

631.         end

632.       end

633.     end

634.   end

635.   def draw_light

636.     sx = @light.sx

637.     sy = @light.sy

638.     w = @light.w

639.     h = @light.h

640.     return if sx > Graphics.width && sy > Graphics.height && sx + w < 0 && sy + h < 0

641.     $game_map.light_surface.bitmap.blt(sx,sy,@light.bitmap,Rect.new(0,0,w,h),@light.opacity)

642.   end

643.   def dispose_light

644.     @light.dispose

645.   end

646.   def restore_light

647.     @light.restore

648.   end

649. end

650. if Light_Core::Surface_UE

651.   class Game_Interpreter

652.     def command_223

653.       $game_map.effect_surface.change_color(@params[1],@params[0].red,@params[0].green,@params[0].blue,@params[0].gray)

654.       wait(@params[1]) if @params[2]

655.     end

656.   end

657. end

658. class Game_Interpreter

659.   def self_event

660.     return $game_map.events[@event_id]

661.   end

662. end

663. class Block_Surface

664.   include Light_Core

665.   attr_accessor :x1

666.   attr_accessor :y1

667.   attr_accessor :x2

668.   attr_accessor :y2

669.   attr_accessor :ready

670.   attr_accessor :trash

671.   def initialize(x1,y1,x2,y2)

672.     @x1 = x1

673.     @y1 = y1

674.     @x2 = x2

675.     @y2 = y2

676.     @ready = false

677.     @trash = false

678.   end

679.   def within?(min_x,max_x,min_y,max_y)

680.     return @x2 > min_x && @x1 < max_x && @y2 > min_y && @y1 < max_y

681.   end

682. end

683. class Block_SL < Block_Surface

684.   attr_reader :type

685.   def initialize(x1,y1,x2,y2)

686.     super(x1,y1,x2,y2)

687.     @type = 0x01

688.   end

689.   def visible?(sx,sy)

690.     return sx < @x1

691.   end

692.   def render_shadow(phx,phy,sx,sy,range,bitmap)

693.     @m1 = (@y1-sy)/(@x1-sx)

694.     @n1 = sy - @m1*sx

695.     @m2 = (@y2-sy)/(@x2-sx)

696.     @n2 = sy - @m2*sx

697.     for x in @x1..(sx+range)

698.       init = shadow_iy(x)

699.       bitmap.clear_rect(x-phx,init-phy,1,shadow_fy(x)-init+3)

700.     end

701.   end

702.   def shadow_iy(x)

703.     return @m1*x+@n1

704.   end

705.   def shadow_fy(x)

706.     return @m2*x+@n2

707.   end

708. end

709. class Block_SR < Block_Surface

710.   attr_reader :type

711.   def initialize(x1,y1,x2,y2)

712.     super(x1,y1,x2,y2)

713.     @type = 0x04

714.   end

715.   def visible?(sx,sy)

716.     return sx > @x1

717.   end

718.   def render_shadow(phx,phy,sx,sy,range,bitmap)

719.     @m1 = (@y1-sy)/(@x1-sx)

720.     @n1 = sy - @m1*sx

721.     @m2 = (@y2-sy)/(@x2-sx)

722.     @n2 = sy - @m2*sx

723.     for x in (sx-range).to_i..@x1

724.       init = shadow_iy(x)

725.       bitmap.clear_rect(x-phx,init-phy,1,shadow_fy(x)-init+3)

726.     end

727.   end

728.   def shadow_iy(x)

729.     return @m1*x+@n1

730.   end

731.   def shadow_fy(x)

732.     return @m2*x+@n2

733.   end

734. end

735. class Block_IL < Block_Surface

736.   attr_reader :type

737.   def initialize(x1,y1,x2,y2)

738.     super(x1,y1,x2,y2)

739.     @type = 0x019

740.   end

741.   def visible?(sx,sy)

742.     return sx < @x1 && sy > @y1

743.   end

744.   def render_shadow(phx,phy,sx,sy,range,bitmap)

745.     @m1 = (@y1-sy)/(@x1-sx)

746.     @n1 = @y1 - @m1*@x1

747.     @m2 = (@y2-sy)/(@x2-sx)

748.     @m2 = 0 if @m2 > 0

749.     @n2 = @y2 - @m2*@x2

750.     for x in @x1..(sx+range)

751.       init = shadow_iy(x).floor

752.       bitmap.clear_rect(x-phx,init-3-phy,1,shadow_fy(x)-init+3)

753.     end

754.   end

755.   def shadow_iy(x)

756.     return @m1*x+@n1

757.   end

758.   def shadow_fy(x)

759.     return @m2*x+@n2

760.   end

761. end

762. class Block_IR < Block_Surface

763.   attr_reader :type

764.   def initialize(x1,y1,x2,y2)

765.     super(x1,y1,x2,y2)

766.     @type = 0x01c

767.   end

768.   def visible?(sx,sy)

769.     return sx > @x1 && sy > @y1

770.   end

771.   def render_shadow(phx,phy,sx,sy,range,bitmap)

772.     @m1 = (@y1-sy)/(@x1-sx)

773.     @n1 = @y1 - @m1*@x1

774.     @m2 = (@y2-sy)/(@x2-sx)

775.     @m2 = 0 if @m2 < 0

776.     @n2 = @y2 - @m2*@x2

777.     for x in (sx-range).to_i..@x1

778.       init = shadow_iy(x).floor

779.       bitmap.clear_rect(x-phx,init-3-phy,1,shadow_fy(x)-init+3)

780.     end

781.   end

782.   def shadow_iy(x)

783.     return @m1*x+@n1

784.   end

785.   def shadow_fy(x)

786.     return @m2*x+@n2

787.   end

788. end

789. class Block_WL < Block_Surface

790.   attr_reader :type

791.   def initialize(x1,y1,x2,y2)

792.     super(x1,y1,x2,y2)

793.     @type = 0x011

794.   end

795.   def visible?(sx,sy)

796.     return sx < @x1 && sy < @y2

797.   end

798.   def render_shadow(phx,phy,sx,sy,range,bitmap)

799.     @m1 = (@y1-sy)/(@x1-sx)

800.     @n1 = sy - @m1*sx

801.     @m2 = (@y2-sy)/(@x2-sx)

802.     @n2 = sy - @m2*sx

803.     for x in @x1..(sx+range)

804.       init = shadow_iy(x)

805.       bitmap.clear_rect(x-phx,init-phy,1,shadow_fy(x)-init+2)

806.     end

807.   end

808.   def shadow_iy(x)

809.     return @m1*x+@n1

810.   end

811.   def shadow_fy(x)

812.     return @m2*x+@n2

813.   end

814. end

815. class Block_WR < Block_Surface

816.   attr_reader :type

817.   def initialize(x1,y1,x2,y2)

818.     super(x1,y1,x2,y2)

819.     @type = 0x014

820.   end

821.   def visible?(sx,sy)

822.     return sx > @x1 && sy < @y2

823.   end

824.   def render_shadow(phx,phy,sx,sy,range,bitmap)

825.     @m1 = (@y1-sy)/(@x1-sx)

826.     @n1 = sy - @m1*sx

827.     @m2 = (@y2-sy)/(@x2-sx)

828.     @n2 = sy - @m2*sx

829.     for x in (sx-range).to_i..@x1

830.       init = shadow_iy(x)

831.       bitmap.clear_rect(x-phx,init-phy,1,shadow_fy(x)-init+2)

832.     end

833.   end

834.   def shadow_iy(x)

835.     return @m1*x+@n1

836.   end

837.   def shadow_fy(x)

838.     return @m2*x+@n2

839.   end

840. end

841. class Block_SU < Block_Surface

842.   attr_reader :type

843.   def initialize(x1,y1,x2,y2)

844.     super(x1,y1,x2,y2)

845.     @type = 0x02

846.   end

847.   def visible?(sx,sy)

848.     return sy < @y1

849.   end

850.   def render_shadow(phx,phy,sx,sy,range,bitmap)

851.     if @x1 == sx

852.       @m1 = nil

853.     else

854.       @m1 = (@y1-sy)/(@x1-sx)

855.       @m1 += ACC if @m1 < -ACC

856.       @n1 = @y1 - @m1*@x1

857.     end

858.     if @x2 == sx

859.       @m2 = nil

860.     else

861.       @m2 = (@y2-sy)/(@x2-sx)

862.       @n2 = sy - @m2*sx

863.     end

864.     for y in @y1..(sy+range)

865.       init = shadow_ix(y)

866.       bitmap.clear_rect(init-phx,y-phy,shadow_fx(y)-init+1,1)

867.     end

868.   end

869.   def shadow_ix(y)

870.     return @m1.nil? ? @x1 : (y-@n1)/@m1

871.   end

872.   def shadow_fx(y)

873.     return @m2.nil? ? @x2 : (y-@n2)/@m2

874.   end

875. end

876. class Block_SD < Block_Surface

877.   attr_reader :type

878.   def initialize(x1,y1,x2,y2)

879.     super(x1,y1,x2,y2)

880.     @type = 0x08

881.   end

882.   def visible?(sx,sy)

883.     return sy > @y1

884.   end

885.   def render_shadow(phx,phy,sx,sy,range,bitmap)

886.     if @x1 == sx

887.       @m1 = nil

888.     else

889.       @m1 = (@y1-sy)/(@x1-sx)

890.       @m1 -= ACC if @m1 > ACC

891.       @n1 = sy - @m1*sx

892.     end

893.     if x2 == sx

894.       @m2 = nil

895.     else

896.       @m2 = (@y2-sy)/(@x2-sx)

897.       @n2 = sy - @m2*sx

898.     end

899.     for y in (sy-range).to_i..@y1

900.       init = shadow_ix(y)

901.       bitmap.clear_rect(init-phx,y-phy,shadow_fx(y)-init+1,1)

902.     end

903.   end

904.   def shadow_ix(y)

905.     return @m1.nil? ? @x1 : (y-@n1)/@m1

906.   end

907.   def shadow_fx(y)

908.     return @m2.nil? ? @x2 : (y-@n2)/@m2

909.   end

910. end

911. class Spriteset_Map

912.   include Light_Core

913.   alias kbl_initialize initialize

914.   alias kbl_update update

915.   alias kbl_dispose dispose

916.   def initialize

917.     setup_lights

918.     kbl_initialize

919.   end

920.   def update

921.     kbl_update

922.     update_lights

923.   end

924.   def dispose

925.     kbl_dispose

926.     dispose_lights

927.   end

928.   def dispose_lights

929.     $game_map.lantern.dispose

930.     $game_map.light_sources.each { |source| source.dispose_light }

931.     $game_map.light_surface.bitmap.dispose

932.     $game_map.light_surface.dispose

933.     $game_map.light_surface = nil

934.   end

935.   def update_lights

936.     $game_map.light_surface.bitmap.clear

937.     $game_map.light_surface.bitmap.fill_rect(0,0,Graphics.width,Graphics.height,$game_map.effect_surface.color)

938.     $game_map.light_sources.each { |source| source.draw_light }

939.     return unless $game_map.lantern.visible

940.     @btr = $game_map.lantern.get_graphic

941.     x = $game_map.lantern.x

942.     y = $game_map.lantern.y

943.     r = $game_map.lantern.range

944.     sx = x + r

945.     sy = y + r

946.     dr = r*2

947.     $game_map.surfaces.each { |s| s.render_shadow(x,y,sx,sy,r,@btr) if s.visible?(sx,sy) && s.within?(x,x+dr,y,y+dr) }

948.     $game_map.light_surface.bitmap.blt($game_map.lantern.sx,$game_map.lantern.sy,@btr,Rect.new(0,0,dr,dr),$game_map.lantern.opacity)

949.   end

950.   def setup_lights

951.     @btr = nil

952.     $game_map.lantern.restore

953.     $game_map.light_sources.each { |source| source.restore_light }

954.     $game_map.light_surface = Sprite.new

955.     $game_map.light_surface.bitmap = Bitmap.new(Graphics.width,Graphics.height)

956.     $game_map.light_surface.bitmap.fill_rect(0,0,Graphics.width,Graphics.height,$game_map.effect_surface.color)

957.     $game_map.light_surface.blend_type = 2

958.     $game_map.light_surface.opacity = $game_map.effect_surface.alpha

959.     $game_map.light_surface.z = Surface_Z

960.   end

961. end

复制代码

mollyko

Cupidk爱呗茶 发表于 2020-3-13 23:12
小改了一点 刚刚稍微测试了下 在640X480或者更高分辨率下光源暂时没有任何问题了  可以随着分辨率提高而自 ...

太感谢了！

daysp2

没用过这个脚本的我想知道，这个是直接加个图片做图层吗？
图层的混合模式能调成“叠加”嘛？

mollyko

daysp2 发表于 2020-3-14 12:40
没用过这个脚本的我想知道，这个是直接加个图片做图层吗？
图层的混合模式能调成“叠加”嘛？ ...

不用加图片！
https://forum.gamer.com.tw/C.php?bsn=04918&snA=22567
这里是教程，你可以看看~
