本帖最后由 RPGzh500223 于 2022-11-30 14:57 编辑
感觉很鸡肋,电脑里扔了2个多月,毕竟都写了,发贴混点经验。
ImageEx_rmxp.dll VS2015 C++语言编写(因为有库是C++的,其实都是按C写的)。
- module ImageEx
- dll = "ImageEx_rmxp.dll"
-
- # ———— png 与 jpeg ——————————————————
- # 仅支持 jpeg(Gray/RGB)、png(Gray/GrayAlpha/RGB/RGBA)
- # 使用libjpeg/libpng
- # ————————————————————————————
-
- # 支持的模式会转换至BGRA,不支持的模式会返回-1。
- # filename_uft8, bitmap_obj_id
- Load_JPG = Win32API.new(dll, 'bitmap_load_jpg', 'PL', 'L')
- # filename_utf8, bitmap_obj_id
- # channels 1或3 BGRA会转换至支持的对应模式
- # quality 0..100 质量越好,文件越大
- Save_JPG = Win32API.new(dll, 'bitmap_save_to_jpg', 'PLLL', 'L')
-
- # 支持的模式会转换至BGRA,不支持的模式无效操作。
- # filename_uft8, bitmap_obj_id
- Load_PNG = Win32API.new(dll, 'bitmap_load_png', 'PL', 'L')
- # filename_utf8, bitmap_obj_id
- # channels 1..4 BGRA会转换至支持的对应模式
- Save_PNG = Win32API.new(dll, 'bitmap_save_to_png', 'PLL', 'L')
-
-
- # ———— gif 与 webp ——————————————————————————
- # 仅支持读取,无论是否使用线程(Win32 CreateThread)都需要释放(调用dispose)
- # gif中disposal_method不支持DISPOSE_PREVIOUS
- # 播放效果视文件而定,可能会“画面闪烁”
- # 效率:非线程模式,640*480大小,读取一帧 gif:1000次/秒 webp:300次/秒
- # 参照,640*480大小的Bitmap#blt 260+次/秒
- # 使用libgif/libwebp
- # ————————————————————————————————————
-
- # filename_utf8 : utf8编码的文件名。
- # sprite_obj_id : RMXP 精灵(Sprite) 对象的 object_id,精灵需设置好其位图。
- # gif_cell_string : GIF_CELL_SIZE字节的字符串,用来保存一些数据。
- # play_mode : 0..3位 是否抠图。抠图效果不错,对效率影响不大。
- # 1:抠除黑色;2:抠除白色;其他(0/3):原图。
- # 4..7位 是否线程模式。 0:不使用;非0:使用。
- # loop_count : 自定义播放次数。 0:文件默认次数;负数:一直播放;正数:指定次数。
- Show_GIF = Win32API.new(dll, 'show_gif', 'PLPLL', 'L')
- Draw_GIF = Win32API.new(dll, 'draw_gif', 'L', 'L')
- Free_GIF = Win32API.new(dll, 'free_gif', 'L', 'L')
- GIF = 0x666967
- GIF_CELL_SIZE = Show_GIF.call(nil, 0, 0, 0, 0)
-
- # 参数四 mode : 是否线程模式。 0:不使用;非0:使用。
- # 其余参数,参见Show_GIF
- Show_WEBP = Win32API.new(dll, 'show_webp', 'PLPLL', 'L')
- Draw_WEBP = Win32API.new(dll, 'draw_webp', 'L', 'L')
- Free_WEBP = Win32API.new(dll, 'free_webp', 'L', 'L')
- WEBP = 0x70626577
- WEBP_CELL_SIZE = Show_WEBP.call(nil, 0, 0, 0, 0)
- # 这两个方法其实没什么用……
- def self.get_png_wh(filename)
- w = h = 0
- File.open(filename, 'rb') do |f|
- if f.read(8) == "\x89\x50\x4E\x47\x0D\x0A\x1A\x0A"
- f.seek(8, IO::SEEK_CUR)
- w, h = f.read(8).unpack('NN')
- end
- end
- return w, h
- end
-
- def self.get_jpg_wh(filename)
- w = h = 0
- File.open(filename, 'rb') do |f|
- if f.read(2) == "\xFF\xD8"
- sof0 = "\xFF\xC0"
- while (buf = f.read(2)) != sof0
- size = f.read(2).unpack('n')
- f.seek(size - 2, IO::SEEK_CUR)
- end
- f.seek(3, IO::SEEK_CUR)
- h, w = f.read(4).unpack('nn')
- end
- end
- return w, h
- end
- end
- class Bitmap
- def to_int
- self.__id__
- end
-
- def save_jpg(filename, channels = 3, quality = 90)
- ImageEx::Save_JPG.call(filename, self, channels, quality)
- end
-
- def save_png(filename, channels = 4)
- ImageEx::Save_PNG.call(filename, self, channels)
- end
-
- # 读取图片至位图,主要是同样大小的单帧静态图片的动画,避免重复新建Bitmap
- def load_jpg(filename)
- ImageEx::Load_JPG.call(filename, self)
- end
-
- def load_png(filename)
- ImageEx::Load_PNG.call(filename, self)
- end
- end
- # GifSprite/WebpSprite并没打算复用,用完就释放掉,再新建
- class GifSprite < Sprite
- def initialize(filename, mode = 0, loop_count = 0, viewport = nil)
-
- w = h = 0
- File.open(filename, "rb") do |f|
- if (f.read(6) =~ /GIF8[79]a/)
- w, h = f.read(4).unpack('SS')
- end
- end
-
- if w == 0 || h == 0
- raise "#{self.class} ERR: #{filename} 可能不是 gif 图片"
- end
-
- super(viewport)
-
- self.bitmap = Bitmap.new(w, h)
- self.instance_eval do
- def bitmap=(obj)
- end
- end
-
- self.bitmap.instance_eval do
- alias :dispose_ori :dispose
- def dispose(tag = 0)
- dispose_ori if tag == ImageEx::GIF
- end
- end
-
- @cell = "\0" * ImageEx::GIF_CELL_SIZE
- err = ImageEx::Show_GIF.call(filename, self.__id__, @cell.__id__,
- mode, loop_count)
-
- case err
- when -1 then raise "#{self.class} ERR: 打开 #{filename} 文件失败"
- when -2 then raise "#{self.class} ERR: 位图 与 #{filename} 不符"
- when -3 then raise "#{self.class} ERR: @cell 参数不符合要求"
- when -100 then raise "#{self.class} ERR: 解析 #{filename} 失败"
- when -101 then raise "#{self.class} ERR: 内存不足"
- end
-
- @cell_ptr = [@cell].pack('p').unpack('L')[0]
- @cell.freeze
-
- @use_thread = (mode & 0xF0 != 0) && (err != -99)
- @delay = 0
- @loop_over = false
- end
- def over?
- return @loop_over if @use_thread == false
- i, c = @cell.unpack('@16LL')
- return c != 0 && i >= c
- end
-
- def update_frame
- return if (@loop_over | @use_thread) == true
- return if (self.disposed? | self.bitmap.disposed?) == true
- return if self.visible == false || self.opacity == 0
-
- if @delay > 0
- @delay -= 1
- else
- ms = ImageEx::Draw_GIF.call(@cell_ptr)
- if ms < 0
- @loop_over = true
- else
- @delay = (ms * Graphics.frame_rate + 999) / 1000
- end
- end
- end
- def dispose
- return if self.disposed? == true
- ImageEx::Free_GIF.call(@cell_ptr)
- self.bitmap.dispose(ImageEx::GIF)
- super
- end
- end
- class WebpSprite < Sprite
-
- def initialize(filename, mode = 0, loop_count = 0, viewport = nil)
-
- w = h = 0
- File.open(filename, "rb") do |f|
- if (f.read(4) == "RIFF")
- f.seek(4, IO::SEEK_CUR)
-
- if (f.read(4) == "WEBP")
- chunk = f.read(4)
- f.seek(4, IO::SEEK_CUR)
- if (chunk == "VP8 ")
- if (f.read(1).unpack('C')[0][0] == 0)
- f.seek(2, IO::SEEK_CUR)
- if (f.read(3) == "\x9D\x01\x2A")
- w, h = f.read(4).unpack('SS')
- end
- end
- elsif (chunk == "VP8L")
- f.seek(1, IO::SEEK_CUR)
- n = f.read(4).unpack('L')[0]
-
- w = (n & 0x3FFF) + 1
- h = ((n & 0xFFFC000) >> 14) + 1
- elsif (chunk == "VP8X")
- f.seek(4, IO::SEEK_CUR)
-
- w, w16, h, h16 = f.read(6).unpack('SCSC')
- w += (w16 << 16) + 1
- h += (h16 << 16) + 1
- end
- end
- end
- end
-
- if w == 0 || h == 0
- raise "#{self.class} ERR: #{filename} 可能不是 webp 图片"
- end
-
- super(viewport)
-
- self.bitmap = Bitmap.new(w, h)
- self.instance_eval do
- def bitmap=(obj)
- end
- end
-
- self.bitmap.instance_eval do
- alias :dispose_ori :dispose
- def dispose(tag = 0)
- dispose_ori if tag == ImageEx::WEBP
- end
- end
-
- @cell = "\0" * ImageEx::WEBP_CELL_SIZE
- err = ImageEx::Show_WEBP.call(filename, self.__id__, @cell.__id__,
- mode, loop_count)
-
- case err
- when -1 then raise "#{self.class} ERR: 打开 #{filename} 文件失败"
- when -2 then raise "#{self.class} ERR: 位图 与 #{filename} 不符"
- when -3 then raise "#{self.class} ERR: @cell 参数不符合要求"
- when -100 then raise "#{self.class} ERR: 解析 #{filename} 失败"
- when -101 then raise "#{self.class} ERR: 内存不足"
- end
-
- @cell_ptr = [@cell].pack('p').unpack('L')[0]
- @cell.freeze
-
- @use_thread = (mode != 0) && (err != -99)
- @delay = 0
- @loop_over = false
- end
-
- def update_frame
- return if (@loop_over | @use_thread) == true
- return if (self.disposed? | self.bitmap.disposed?) == true
- return if self.visible == false || self.opacity == 0
-
- if @delay > 0
- @delay -= 1
- else
- ms = ImageEx::Draw_WEBP.call(@cell_ptr)
- if ms < 0
- @loop_over = true
- else
- @delay = (ms * Graphics.frame_rate + 999) / 1000
- end
- end
- end
-
- def dispose
- return if self.disposed? == true
- ImageEx::Free_WEBP.call(@cell_ptr)
- self.bitmap.dispose(ImageEx::WEBP)
- super
- end
- end
复制代码

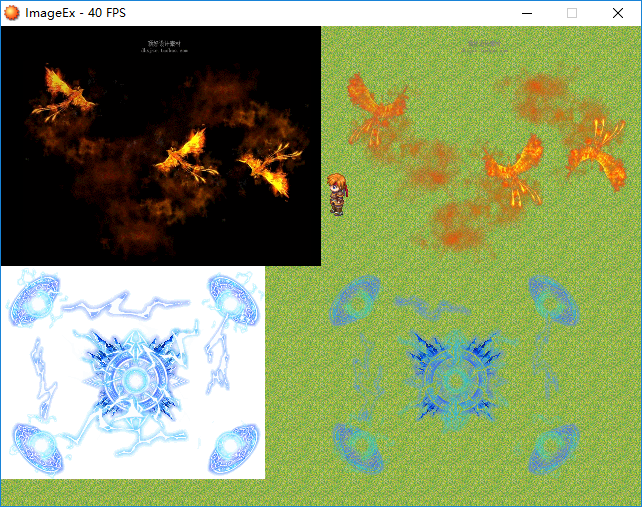

PS:示意图中的gif图片来自网络。
修复DLL中有关gif的一个bug。该脚本中关于线程模式瞎写的,不好用,不推荐。
自己写脚本喜欢越简单越好,使用脚本喜欢越全面越好,从使用角度说,这脚本很糟糕,所以就不写使用示例了。
至于抠除黑色的计算,以前发的帖子写过 Bitmap#remove_black! |
