想要一个像VX一样的小地图。

查看数: 1650 | 评论数: 3 | 收藏 0

关灯 | 提示：支持键盘翻页<-左右->

帖子模式

爆焰

发布时间: 2011-8-26 04:41

正文摘要:

本帖最后由爆焰于 2011-8-26 16:37 编辑看了VX的小地图后感觉不错，请问能做出那种效果的地图吗？在XP里可以实现的？

z12067010 发表于 2011-8-26 17:34:53

搜索功能其实是很强大的……

点评

z12067010

VX是XP的升级版拉，用VX有什么不好捏发表于 2011-8-27 10:04

爆焰

当然会在提问前搜索，但是搜不到，搜到了也不是我要的那种，难道XP真的无法超越VX？XP画面比VX好，不知道为什么操作上比VX差那么远发表于 2011-8-26 18:02

爆焰 发表于 2011-8-26 16:30:13

本帖最后由爆焰于 2011-8-26 16:47 编辑

请问有没有像VX那种呀？就是用“点”来表示的（KGC样的小地图），比如：角色一个颜色、事件一个颜色、敌人一个颜色、可移动的区域一个颜色、不可移动的区域一个颜色…………类似于VX的就是了。我比较喜欢那种，因为这种我用过后觉得不是很喜欢。

MustDante 发表于 2011-8-26 08:07:24

本帖最后由 MustDante 于 2011-8-26 12:51 编辑

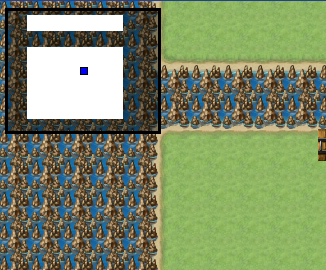

效果图：

脚本：

#==============================================================================
# 本脚本来自www.66RPG.com，使用和转载请保留此信息
#==============================================================================
#==============================================================================
# ■ 縮小地图的表示(ver 0.999)
# by ピニョン clum-sea
#==============================================================================
#==============================================================================
# □ 前期定义
#==============================================================================
module PLAN_Map_Window
WIN_X = 8 # 地图的 X 座標
WIN_Y = 8 # 地图的 Y 座標
WIN_WIDTH = 6*24 # 地图的宽度
WIN_HEIGHT = 6*24 # 地图的高度
ZOOM = 4.0 # 地图的放缩比例
WINDOWSKIN = "" # 自定义地图窗口素材，如果留空则是默认的
ON_OFF_KEY = Input::A # 打开地图的按钮，A就是键盘的Z键
SWITCH = 100 # 禁用地图功能的开关，默认这个就是打开100号开关则禁止
# 使用地图功能，关闭则可以使用地图功能
WINDOW_MOVE = true # 窗口中的地图跟随移动，(true:跟随, false:固定)
OVER_X = 632 - WIN_WIDTH # 移動后的 X 座標(初期位置と往復します)
OVER_Y = 8 # 移動后的 Y 座標(初期位置と往復します)
OPACITY = 192 # 窗口的透明度
C_OPACITY = 192 # 地图的透明度
VISIBLE = true # 最初是否可见
end
#==============================================================================
# ■ Game_Temp
#==============================================================================
class Game_Temp
attr_accessor :map_visible # 地图的表示状態
alias plan_map_window_initialize initialize
def initialize
plan_map_window_initialize
@map_visible = true
end
end
#==============================================================================
# ■ Scene_Map
#==============================================================================
class Scene_Map
#--------------------------------------------------------------------------
# ● 主处理
#--------------------------------------------------------------------------
alias plan_map_window_main main
def main
@map_window = Window_Map.new
@map_window.visible = $game_temp.map_visible
plan_map_window_main
@map_window.dispose
end
#--------------------------------------------------------------------------
# ● 更新
#--------------------------------------------------------------------------
alias plan_map_window_update update
def update
$game_temp.map_visible = @map_window.visible
plan_map_window_update
unless $game_switches[PLAN_Map_Window::SWITCH]
if Input.trigger?(PLAN_Map_Window::ON_OFF_KEY)
if @map_window.visible
@map_window.visible = false
else
@map_window.visible = true
end
end
else
if @map_window.visible
@map_window.visible = false
end
end
if @map_window.visible
@map_window.update
end
end
#--------------------------------------------------------------------------
# ● 场所移动的变化
#--------------------------------------------------------------------------
alias plan_map_window_transfer_player transfer_player
def transfer_player
visible = @map_window.visible
@map_window.visible = false
plan_map_window_transfer_player
@map_window.dispose
@map_window = Window_Map.new
@map_window.visible = visible
end
end
#==============================================================================
# ■ Window_Map
#==============================================================================
class Window_Map < Window_Base
#--------------------------------------------------------------------------
# ● 初始化
#--------------------------------------------------------------------------
def initialize
x = PLAN_Map_Window::WIN_X
y = PLAN_Map_Window::WIN_Y
w = PLAN_Map_Window::WIN_WIDTH
h = PLAN_Map_Window::WIN_HEIGHT
super(x, y, w, h)
unless PLAN_Map_Window::WINDOWSKIN.empty?
self.windowskin = RPG::Cache.windowskin(PLAN_Map_Window::WINDOWSKIN)
end
self.contents = Bitmap.new(width - 32, height - 32)
self.opacity = PLAN_Map_Window::OPACITY
self.contents_opacity = PLAN_Map_Window::C_OPACITY
@map_data = $game_map.data
@tileset = RPG::Cache.tileset($game_map.tileset_name)
@autotiles = []
for i in 0..6
autotile_name = $game_map.autotile_names[i]
@autotiles[i] = RPG::Cache.autotile(autotile_name)
end
@old_real_x = $game_player.real_x
@old_real_y = $game_player.real_y
@all_map = make_all_map
self.visible = PLAN_Map_Window::VISIBLE
refresh
end
#--------------------------------------------------------------------------
# ● 缩小图做成
#--------------------------------------------------------------------------
def make_all_map
all_map = Bitmap.new($game_map.width * 32, $game_map.height * 32)
for y in 0...$game_map.height
for x in 0...$game_map.width
for z in 0...3
tile_num = @map_data[x, y, z]
next if tile_num == nil
if tile_num < 384
if tile_num >= 48
tile_num -= 48
src_rect = Rect.new(32, 2 * 32, 32, 32)
all_map.blt(x * 32, y * 32, @autotiles[tile_num / 48], src_rect)
end
else
tile_num -= 384
src_rect = Rect.new(tile_num % 8 * 32, tile_num / 8 * 32, 32, 32)
all_map.blt(x * 32, y * 32, @tileset, src_rect)
end
end
end
end
w = ($game_map.width / PLAN_Map_Window::ZOOM) * 32
h = ($game_map.height / PLAN_Map_Window::ZOOM) * 32
ret_bitmap = Bitmap.new(w, h)
src_rect = Rect.new(0, 0, all_map.width, all_map.height)
dest_rect = Rect.new(0, 0, ret_bitmap.width, ret_bitmap.height)
ret_bitmap.stretch_blt(dest_rect, all_map, src_rect)
all_map.dispose
return ret_bitmap
end
#--------------------------------------------------------------------------
# ● 刷新
#--------------------------------------------------------------------------
def refresh
self.contents.clear
one_tile_size = 32 / PLAN_Map_Window::ZOOM
x = $game_player.real_x - 128 * (self.contents.width / one_tile_size) / 2
y = $game_player.real_y - 128 * (self.contents.height / one_tile_size) / 2
x = x * one_tile_size / 128
y = y * one_tile_size / 128
half_width = self.contents.width * 128 / 2
rest_width = ($game_map.width * 128 - $game_player.real_x) * one_tile_size
rev_x = 0
if @all_map.width < self.contents.width
rev_x = (half_width - $game_player.real_x * one_tile_size) / 128
rev_x -= (self.contents.width - @all_map.width) / 2
x += rev_x
elsif half_width > $game_player.real_x * one_tile_size
rev_x = (half_width - $game_player.real_x * one_tile_size) / 128
x += rev_x
elsif half_width > rest_width
rev_x = -((half_width - rest_width) / 128)
x += rev_x
end
half_height = self.contents.height * 128 / 2
rest_height = ($game_map.height * 128 - $game_player.real_y) * one_tile_size
rev_y = 0
if @all_map.height < self.contents.height
rev_y = (half_height - $game_player.real_y * one_tile_size) / 128
rev_y -= (self.contents.height - @all_map.height) / 2
y += rev_y
elsif half_height > $game_player.real_y * one_tile_size
rev_y = (half_height - $game_player.real_y * one_tile_size) / 128
y += rev_y
elsif half_height > rest_height
rev_y = -((half_height - rest_height) / 128)
y += rev_y
end
src_rect = Rect.new(x, y, self.contents.width, self.contents.height)
self.contents.blt(0, 0, @all_map, src_rect)
if PLAN_Map_Window::WINDOW_MOVE == true
w = self.x..self.x + self.width
h = self.y..self.y + self.height
if w === $game_player.screen_x and h === $game_player.screen_y
if self.x == PLAN_Map_Window::WIN_X and self.y == PLAN_Map_Window::WIN_Y
self.x = PLAN_Map_Window::OVER_X
self.y = PLAN_Map_Window::OVER_Y
else
self.x = PLAN_Map_Window::WIN_X
self.y = PLAN_Map_Window::WIN_Y
end
end
end
if $game_party.actors.size > 0
for i in [2, 1, 0]
tile = @map_data[$game_player.x, $game_player.y, i]
next if tile == 0
return if $game_map.priorities[tile] > 0
end
actor = $game_party.actors[0]
bitmap = RPG::Cache.character(actor.character_name, actor.character_hue)
width = bitmap.width / 4
height = bitmap.height / 4
src_rect = Rect.new(0, 0, width, height)
w = width / PLAN_Map_Window::ZOOM
h = height / PLAN_Map_Window::ZOOM
x = self.contents.width / 2 - w / 2 + one_tile_size / 2 - rev_x
y = self.contents.height / 2 - h / 2 - rev_y
dest_rect = Rect.new(x, y, w, h)
self.contents.stretch_blt(dest_rect, bitmap, src_rect)
end
end
#--------------------------------------------------------------------------
# ● 更新
#--------------------------------------------------------------------------
def update
super
if @old_real_x != $game_player.real_x or @old_real_y != $game_player.real_y
@old_real_x = $game_player.real_x
@old_real_y = $game_player.real_y
refresh
end
end
#--------------------------------------------------------------------------
# ● 解放
#--------------------------------------------------------------------------
def dispose
super
@all_map.dispose
end
end
#==============================================================================
# 本脚本来自www.66RPG.com，使用和转载请保留此信息
#==============================================================================

复制代码

点评

fux2

代码请用代码功能发布，另外提示附件在连帖中会失效，请使用编辑功能发表于 2011-8-26 09:10
