如何在战斗修改状态显示

隐藏主角

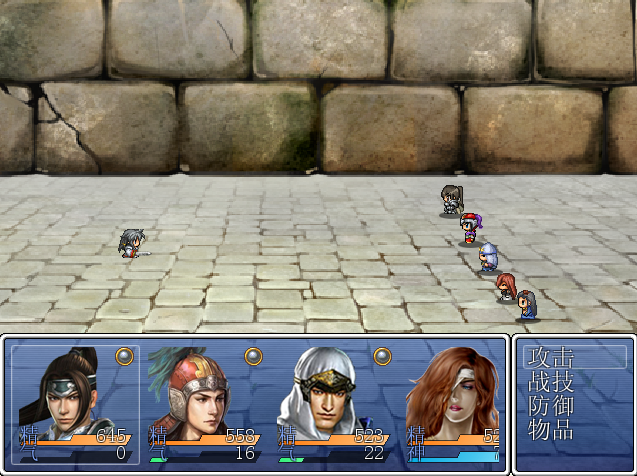

如图：

人物的HP那里就看到一半

Luciffer

没听懂你什么意思。。。能说明得清楚一点吗？

隐藏主角

Luciffer 发表于 2012-5-10 12:29
没听懂你什么意思。。。能说明得清楚一点吗？

就是把人物状态下面的人物头像显示完成五个人

Luciffer

用了KMS_GenericGauge吗？贴出来让楼下的帮你改改好了（说白了我不会）

隐藏主角

Luciffer 发表于 2012-5-10 12:34
用了KMS_GenericGauge吗？贴出来让楼下的帮你改改好了（说白了我不会）

嗯，就是用这个脚本


‘‘──隐藏主角于2012-5-10 13:15补充以下内容

就是这个脚本

1. #_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/

2. #_/    ◆ Draw Generic Gauge - KMS_GenericGauge ◆ VX Ace ◆

3. #_/    ◇ Last update : 2012/01/15 (TOMY@Kamesoft) ◇

4. #_/    ◇ Website: http://ytomy.sakura.ne.jp/ ◇

5. #_/    ◇ Translated by Mr. Bubble ◇

6. #_/----------------------------------------------------------------------------

7. #_/  Provides groundwork code for simple image-based gauges.

8. #_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/

9. #  This script provides groundwork code for simple gauge graphics based

10. #  off images placed in the Graphics/System folder. By default, this script

11. #  provides gauges for HP, MP, TP, and EXP.

12. #

13. #  Scripters can utilize their own Generic Gauge for their

14. #  own use. See the "Notes to Scripters" section below the customization

15. #  section.

16. #----------------------------------------------------------------------------

17. #  !! WARNING !!

18. #  If an error pops up saying "wrong number of arguments",

19. #  please post in the topic you got this script in and ask for a

20. #  compatibility patch with the other custom script you're trying to

21. #  use.

22. #_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/_/

23.

24. #==============================================================================

25. # ★ BEGIN Setting ★

26. #==============================================================================

27.

28. module KMS_GenericGauge

29.   # * Gauge File Names

30.   #   Images must be placed in the "Graphics/System" folder of your project

31.   HP_IMAGE  = "GaugeHP"   # HP

32.   MP_IMAGE  = "GaugeMP"   # MP

33.   TP_IMAGE  = "GaugeTP"   # TP

34.   EXP_IMAGE = "GaugeEXP"  # EXP

35.

36.   # * Gauge Position Offset [x, y]

37.   HP_OFFSET  = [-23, -2]  # HP

38.   MP_OFFSET  = [-23, -2]  # MP

39.   TP_OFFSET  = [-23, -2]  # TP

40.   EXP_OFFSET = [-23, -2]  # EXP

41.

42.   # * Gauge Length Adjustment

43.   HP_LENGTH  = -4  # HP

44.   MP_LENGTH  = -4  # MP

45.   TP_LENGTH  = -4  # TP

46.   EXP_LENGTH = -4  # EXP

47.

48.   # * Gauge Slope

49.   #   Must be between -89 ~ 89 degrees

50.   HP_SLOPE  = 30  # HP

51.   MP_SLOPE  = 30  # MP

52.   TP_SLOPE  = 30  # TP

53.   EXP_SLOPE = 30  # EXP

54. end

55.

56. #==============================================================================

57. # ☆ END Setting ☆

58. #==============================================================================

59.

60. $kms_imported = {} if $kms_imported == nil

61. $kms_imported["GenericGauge"] = true

62.

63. # *****************************************************************************

64.

65.   #--------------------------------------------------------------------------

66.   # Notes to Scripters

67.   #--------------------------------------------------------------------------

68.   # Drawing your own custom gauge within a window can be done by using a single

69.   # method:

70.   #

71.   #   draw_gauge(file, x, y, width, rate, offset, len_offset,

72.   #     slope, gauge_type = :normal)

73.   #

74.   # ++ Draw Generic Gauge Arguments

75.   #     file       : Gauge image filename

76.   #     x, y       : x, y draw coordinates

77.   #     width      : Gauge width

78.   #     rate       : Gauge fill ratio (0.0 ~ 1.0)

79.   #     offset     : Gauge coordinate adjustment [x, y]

80.   #     len_offset : Length Adjustment

81.   #     slope      : Gauge slope degree (-89~89)

82.   #     gauge_type : Gauge type ( :normal , :decrease , :increase )

83.   #--------------------------------------------------------------------------

84.   # gauge_type determines how the gauge fills depending on the current

85.   # value of the gauge.

86.   #--------------------------------------------------------------------------

87.   # This script overwrites Window_Base#draw_gauge and adds 2 extra args

88.   # which will cause compatibility issues with other scripts that uses

89.   # the default draw_gauge method and args.

90.   #--------------------------------------------------------------------------

91.

92. #==============================================================================

93. # ■ Bitmap

94. #==============================================================================

95.

96. unless $kms_imported["BitmapExtension"]

97. class Bitmap

98.   #--------------------------------------------------------------------------

99.   # ○ 平行四辺形転送

100.   #--------------------------------------------------------------------------

101.   def skew_blt(x, y, src_bitmap, src_rect, slope, opacity = 255)

102.     slope = [[slope, -90].max, 90].min

103.     sh    = src_rect.height

104.     off  = sh / Math.tan(Math::PI * (90 - slope.abs) / 180.0)

105.     if slope >= 0

106.       dx   = x + off.round

107.       diff = -off / sh

108.     else

109.       dx   = x

110.       diff = off / sh

111.     end

112.     rect = Rect.new(src_rect.x, src_rect.y, src_rect.width, 1)

113.

114.     sh.times { |i|

115.       blt(dx + (diff * i).round, y + i, src_bitmap, rect, opacity)

116.       rect.y += 1

117.     }

118.   end

119. end

120. end

121.

122. #==============================================================================

123. # ■ Game_Actor

124. #==============================================================================

125.

126. class Game_Actor < Game_Battler

127.   #--------------------------------------------------------------------------

128.   # ○ 現在のレベルから次のレベルまでの全必要経験値取得

129.   #--------------------------------------------------------------------------

130.   def next_level_exp_full

131.     return next_level_exp - current_level_exp

132.   end

133.   #--------------------------------------------------------------------------

134.   # ○ 次のレベルまでの残り経験値取得

135.   #--------------------------------------------------------------------------

136.   def next_level_exp_rest

137.     return next_level_exp - exp

138.   end

139.   #--------------------------------------------------------------------------

140.   # ○ 次のレベルまでの経験値取得率取得

141.   #--------------------------------------------------------------------------

142.   def exp_rate

143.     diff = [next_level_exp_full, 1].max

144.     rest = [next_level_exp_rest, 1].max

145.     return (diff - rest) * 1.0 / diff

146.   end

147. end

148.

149. #==============================================================================

150. # ■ Window_Base

151. #==============================================================================

152.

153. class Window_Base < Window

154.   #--------------------------------------------------------------------------

155.   # ○ 定数

156.   #--------------------------------------------------------------------------

157.   # ゲージ転送元座標 [x, y]

158.   GAUGE_SRC_POS = {

159.     :normal   => [ 0, 24],

160.     :decrease => [ 0, 48],

161.     :increase => [72, 48],

162.   }

163.   #--------------------------------------------------------------------------

164.   # ○ クラス変数

165.   #--------------------------------------------------------------------------

166.   @@__gauge_buf = Bitmap.new(320, 24)

167.   #--------------------------------------------------------------------------

168.   # ○ ゲージ描画

169.   #     file       : ゲージ画像ファイル名

170.   #     x, y       : 描画先 X, Y 座標

171.   #     width      : 幅

172.   #     ratio      : 割合

173.   #     offset     : 座標調整 [x, y]

174.   #     len_offset : 長さ調整

175.   #     slope      : 傾き

176.   #     gauge_type : ゲージタイプ

177.   #--------------------------------------------------------------------------

178.   def draw_gauge(file, x, y, width, ratio, offset, len_offset, slope,

179.                  gauge_type = :normal)

180.     img    = Cache.system(file)

181.     x     += offset[0]

182.     y     += offset[1]

183.     width += len_offset

184.     draw_gauge_base(img, x, y, width, slope)

185.     gw = (width * ratio).to_i

186.     draw_gauge_bar(img, x, y, width, gw, slope, GAUGE_SRC_POS[gauge_type])

187.   end

188.   #--------------------------------------------------------------------------

189.   # ○ ゲージベース描画

190.   #     img   : ゲージ画像

191.   #     x, y  : 描画先 X, Y 座標

192.   #     width : 幅

193.   #     slope : 傾き

194.   #--------------------------------------------------------------------------

195.   def draw_gauge_base(img, x, y, width, slope)

196.     rect = Rect.new(0, 0, 24, 24)

197.     if slope != 0

198.       contents.skew_blt(x, y, img, rect, slope)

199.       rect.x = 96

200.       contents.skew_blt(x + width + 24, y, img, rect, slope)

201.       rect.x     = 24

202.       rect.width = 72

203.       dest_rect = Rect.new(0, 0, width, 24)

204.       @@__gauge_buf.clear

205.       @@__gauge_buf.stretch_blt(dest_rect, img, rect)

206.       contents.skew_blt(x + 24, y, @@__gauge_buf, dest_rect, slope)

207.     else

208.       contents.blt(x, y, img, rect)

209.       rect.x = 96

210.       contents.blt(x + width + 24, y, img, rect)

211.       rect.x     = 24

212.       rect.width = 72

213.       dest_rect = Rect.new(x + 24, y, width, 24)

214.       contents.stretch_blt(dest_rect, img, rect)

215.     end

216.   end

217.   #--------------------------------------------------------------------------

218.   # ○ ゲージ内部描画

219.   #     img     : ゲージ画像

220.   #     x, y    : 描画先 X, Y 座標

221.   #     width   : 全体幅

222.   #     gw      : 内部幅

223.   #     slope   : 傾き

224.   #     src_pos : 転送元座標 [x, y]

225.   #     start   : 開始位置

226.   #--------------------------------------------------------------------------

227.   def draw_gauge_bar(img, x, y, width, gw, slope, src_pos, start = 0)

228.     rect = Rect.new(src_pos[0], src_pos[1], 72, 24)

229.     dest_rect = Rect.new(0, 0, width, 24)

230.     @@__gauge_buf.clear

231.     @@__gauge_buf.stretch_blt(dest_rect, img, rect)

232.     dest_rect.x     = start

233.     dest_rect.width = gw

234.     x += start

235.     if slope != 0

236.       contents.skew_blt(x + 24, y, @@__gauge_buf, dest_rect, slope)

237.     else

238.       contents.blt(x + 24, y, @@__gauge_buf, dest_rect)

239.     end

240.   end

241.   #--------------------------------------------------------------------------

242.   # ● HP の描画

243.   #--------------------------------------------------------------------------

244.   def draw_actor_hp(actor, x, y, width = 124)

245.     draw_actor_hp_gauge(actor, x, y, width)

246.     change_color(system_color)

247.     draw_text(x, y, 30, line_height, Vocab::hp_a)

248.     draw_current_and_max_values(x, y, width, actor.hp, actor.mhp,

249.       hp_color(actor), normal_color)

250.   end

251.   #--------------------------------------------------------------------------

252.   # ● MP の描画

253.   #--------------------------------------------------------------------------

254.   def draw_actor_mp(actor, x, y, width = 124)

255.     draw_actor_mp_gauge(actor, x, y, width)

256.     change_color(system_color)

257.     draw_text(x, y, 30, line_height, Vocab::mp_a)

258.     draw_current_and_max_values(x, y, width, actor.mp, actor.mmp,

259.       mp_color(actor), normal_color)

260.   end

261.   #--------------------------------------------------------------------------

262.   # ● TP の描画

263.   #--------------------------------------------------------------------------

264.   def draw_actor_tp(actor, x, y, width = 124)

265.     draw_actor_tp_gauge(actor, x, y, width)

266.     change_color(system_color)

267.     draw_text(x, y, 30, line_height, Vocab::tp_a)

268.     change_color(tp_color(actor))

269.     draw_text(x + width - 42, y, 42, line_height, actor.tp.to_i, 2)

270.   end

271.   #--------------------------------------------------------------------------

272.   # ○ HP ゲージの描画

273.   #     actor : アクター

274.   #     x, y  : 描画先 X, Y 座標

275.   #     width : 幅

276.   #--------------------------------------------------------------------------

277.   def draw_actor_hp_gauge(actor, x, y, width = 120)

278.     draw_gauge(KMS_GenericGauge::HP_IMAGE,

279.       x, y, width, actor.hp_rate,

280.       KMS_GenericGauge::HP_OFFSET,

281.       KMS_GenericGauge::HP_LENGTH,

282.       KMS_GenericGauge::HP_SLOPE

283.     )

284.   end

285.   #--------------------------------------------------------------------------

286.   # ○ MP ゲージの描画

287.   #     actor : アクター

288.   #     x, y  : 描画先 X, Y 座標

289.   #     width : 幅

290.   #--------------------------------------------------------------------------

291.   def draw_actor_mp_gauge(actor, x, y, width = 120)

292.     draw_gauge(KMS_GenericGauge::MP_IMAGE,

293.       x, y, width, actor.mp_rate,

294.       KMS_GenericGauge::MP_OFFSET,

295.       KMS_GenericGauge::MP_LENGTH,

296.       KMS_GenericGauge::MP_SLOPE

297.     )

298.   end

299.   #--------------------------------------------------------------------------

300.   # ○ TP ゲージの描画

301.   #     actor : アクター

302.   #     x, y  : 描画先 X, Y 座標

303.   #     width : 幅

304.   #--------------------------------------------------------------------------

305.   def draw_actor_tp_gauge(actor, x, y, width = 120)

306.     draw_gauge(KMS_GenericGauge::TP_IMAGE,

307.       x, y, width, actor.tp_rate,

308.       KMS_GenericGauge::TP_OFFSET,

309.       KMS_GenericGauge::TP_LENGTH,

310.       KMS_GenericGauge::TP_SLOPE

311.     )

312.   end

313.   #--------------------------------------------------------------------------

314.   # ○ Exp の描画

315.   #     actor : アクター

316.   #     x, y  : 描画先 X, Y 座標

317.   #     width : 幅

318.   #--------------------------------------------------------------------------

319.   def draw_actor_exp(actor, x, y, width = 180)

320.     str = actor.max_level? ? "-------" : actor.exp

321.     change_color(normal_color)

322.     draw_text(x, y, width, line_height, str, 2)

323.   end

324.   #--------------------------------------------------------------------------

325.   # ○ NextExp の描画

326.   #     actor : アクター

327.   #     x, y  : 描画先 X, Y 座標

328.   #     width : 幅

329.   #--------------------------------------------------------------------------

330.   def draw_actor_next_exp(actor, x, y, width = 180)

331.     draw_actor_exp_gauge(actor, x, y, width)

332.     change_color(system_color)

333.     draw_text(x, y, 80, line_height, "Next")

334.     str = actor.max_level? ? "-------" : actor.next_level_exp_rest

335.     change_color(normal_color)

336.     draw_text(x, y, width, line_height, str, 2)

337.   end

338.   #--------------------------------------------------------------------------

339.   # ○ Exp ゲージの描画

340.   #     actor : アクター

341.   #     x, y  : 描画先 X, Y 座標

342.   #     width : 幅

343.   #--------------------------------------------------------------------------

344.   def draw_actor_exp_gauge(actor, x, y, width = 180)

345.     draw_gauge(KMS_GenericGauge::EXP_IMAGE,

346.       x, y, width, actor.exp_rate,

347.       KMS_GenericGauge::EXP_OFFSET,

348.       KMS_GenericGauge::EXP_LENGTH,

349.       KMS_GenericGauge::EXP_SLOPE

350.     )

351.   end

352. end

353.

354. #==============================================================================

355. # ■ Window_Status

356. #==============================================================================

357.

358. class Window_Status < Window_Selectable

359.   #--------------------------------------------------------------------------

360.   # ● 経験値情報の描画

361.   #--------------------------------------------------------------------------

362.   def draw_exp_info(x, y)

363.     s_next = sprintf(Vocab::ExpNext, Vocab::level)

364.     change_color(system_color)

365.     draw_text(x, y + line_height * 0, 180, line_height, Vocab::ExpTotal)

366.     draw_text(x, y + line_height * 2, 180, line_height, s_next)

367.     change_color(normal_color)

368.     draw_actor_exp(     @actor, x, y + line_height * 1)

369.     draw_actor_next_exp(@actor, x, y + line_height * 3)

370.   end

371. end


复制代码

’’
