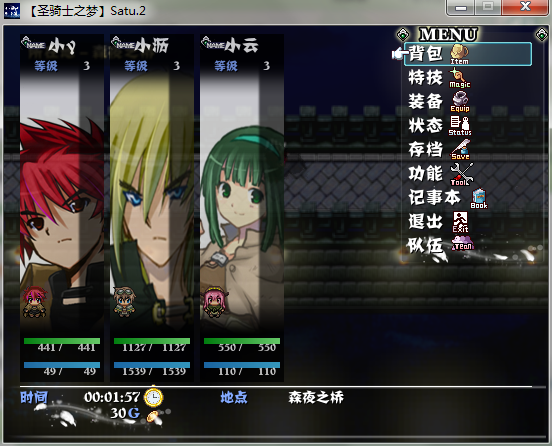

[已经解决] 请问这种菜单怎么才能做出来?为什么会在右边?

[复制链接]
梦石
0
星屑
50
在线时间
3 小时
注册时间
2014-7-31
回帖
9
发表于 2014-8-3 09:26:59 | 显示全部楼层 |阅读模式

加入我们,或者,欢迎回来。

您需要 登录 才可以下载或查看,没有账号?注册会员

×
还有那种透明的感觉是用脚本还是窗口图片?


…あたしは天

梦石
0
星屑
2308
在线时间
4033 小时
注册时间
2010-10-4
回帖
10548

开拓者贵宾

发表于 2014-8-3 09:31:18 | 显示全部楼层
窗口图片。但是除了半透明以外的效果要用到脚本
回复

使用道具 举报

炎

梦石
0
星屑
98
在线时间
1617 小时
注册时间
2013-8-15
回帖
4322
发表于 2014-8-3 12:37:04 | 显示全部楼层
本帖最后由 永燃的狂炎 于 2014-8-3 13:16 编辑

顺路,求楼主 放出菜单的字体
召唤严厉的版主 @VIPArcher
为了我的10经验 所谓经验能使鬼推磨...
那我就给你相似的脚本,只是改图片就行了
[pre lang="ruby" line="1"]class Scene_MenuBase < Scene_Base
  #----------------------------------------------------------------------------
  # * 初始化
  #----------------------------------------------------------------------------
  def initialize
    super
    @last_index = 0 if @last_index == nil
  end
end
class Window_MenuCommand < Window_Command
  #----------------------------------------------------------------------------
  # * 重命名方法
  #----------------------------------------------------------------------------
  alias nir item_rect
  #----------------------------------------------------------------------------
  # * 初始化
  #----------------------------------------------------------------------------
  def initialize
    @command_icon_index = [260, 96, 170, 16, 280, 375, 12]
    super(0, 0)
  end
  #----------------------------------------------------------------------------
  # * 描绘选项
  #----------------------------------------------------------------------------
  def draw_item(index)
    rect = item_rect_for_text(index)
    draw_icon(@command_icon_index[index], rect.x, rect.y, command_enabled?(index))
    self.contents.font.color.alpha = (command_enabled?(index) ? 255 : 160)
    self.contents.draw_text(rect.x + 24, rect.y, rect.width - 24, rect.height, command_name(index))
  end
  #----------------------------------------------------------------------------
  # * 获取项目的描绘矩形
  #----------------------------------------------------------------------------
  def item_rect(index)
    return Rect.new
  end
  #----------------------------------------------------------------------------
  # * 获取项目的绘制矩形(内容用)
  #----------------------------------------------------------------------------
  def item_rect_for_text(index)
    rect = nir(index)
    rect.x += 4
    rect.width -= 8
    rect
  end
end
class Window_NewMenuStatus < Window_Command
  #----------------------------------------------------------------------------
  # * 初始化
  #----------------------------------------------------------------------------
  def initialize
    super(160, 0)
  end
  #----------------------------------------------------------------------------
  # * 获取窗口的宽度
  #----------------------------------------------------------------------------
  def window_width
    return 384
  end
  #----------------------------------------------------------------------------
  # * 获取窗口的高度
  #----------------------------------------------------------------------------
  def window_height
    return 416
  end
  #----------------------------------------------------------------------------
  # * 更新内容
  #----------------------------------------------------------------------------
  def refresh
    super
    draw_actor_status
  end
  #----------------------------------------------------------------------------
  # * 生成指令列表
  #----------------------------------------------------------------------------
  def make_command_list
    for actor in $game_party.members
      s = "a[#{actor.id}]"
      add_command(actor.name, s.to_sym, !actor.death_state?, actor.id)
    end
  end
  #----------------------------------------------------------------------------
  # * 描绘选项
  #----------------------------------------------------------------------------
  def draw_item(index)
    rect = item_rect_for_text(index)
    b = Bitmap.new(rect.width, rect.height)
    cn = $game_actors[@list[index][:ext]].character_name
    ci = $game_actors[@list[index][:ext]].character_index
    cb = Cache.character(cn)
    if cn[0] == "[        DISCUZ_CODE_2547        ]quot"
      cr = Rect.new
      cr.x = cb.width / 3
      cr.width = cb.width / 3
      cr.height = cb.height / 4
    else
      cr = Rect.new
      cr.x = ci % 4 * (cb.width / 4) + cb.width / 12
      cr.y = ci / 4 * (cb.height / 2)
      cr.width = cb.width / 12
      cr.height = cb.height / 8
    end
    b.blt((b.width - cr.width) / 2, (b.height - cr.height) / 2, cb, cr)
    unless command_enabled?(index)
      for y in 0...b.height
        for x in 0...b.width
          next if b.get_pixel(x, y).alpha == 0
          c = b.get_pixel(x, y)
          m = (c.red + c.green + c.blue) / 3
          b.set_pixel(x, y, Color.new(m, m, m, c.alpha))
        end
      end
    end
    self.contents.blt(rect.x, rect.y, b, b.rect)
    b.dispose
    cb.dispose
  end
  #----------------------------------------------------------------------------
  # * 获取项目的绘制矩形
  #----------------------------------------------------------------------------
  def item_rect(index)
    rect = Rect.new
    rect.width = self.contents.width / 4
    rect.height = 48
    rect.x = (index < 4 ? index * rect.width : (index - 4) * rect.width)
    rect.y = (index < 4 ? 0 : self.contents.height - rect.height)
    return rect
  end
  #----------------------------------------------------------------------------
  # * 描绘角色的状态
  #----------------------------------------------------------------------------
  def draw_actor_status
    actor = $game_actors[@list[@index][:ext]]
    y = item_rect_for_text(0).height + 5
    h = self.contents.height - 2 * (item_rect_for_text(0).height + 5)
    self.contents.clear_rect(Rect.new(0, y, self.contents.width, h))
    draw_actor_face(actor, 0, y)
    draw_actor_name(actor, 0, y)
    draw_actor_level(actor, 96, y)
    draw_actor_nickname(actor, 168, y)
    draw_actor_hp(actor, 96, y + line_height, self.contents.width - 96)
    draw_actor_mp(actor, 96, y + 2 * line_height, self.contents.width - 96)
    draw_actor_icons(actor, 96, y + 3 * line_height)
    for i in 0...6
      draw_actor_param(actor, 0, y + (4 + i) * line_height, i)
    end
    for i in 0...5
      draw_item_name(actor.equips, self.contents.width / 2, y + (4 + i) * line_height) if actor.equips != nil
    end
  end
  #----------------------------------------------------------------------------
  # * 选择项目
  #----------------------------------------------------------------------------
  def select(index)
    super
    draw_actor_status
  end
end
class Window_NewGold < Window_Base
  #----------------------------------------------------------------------------
  # * 初始化
  #----------------------------------------------------------------------------
  def initialize
    super(0, 368, 160, 48)
    refresh
  end
  #----------------------------------------------------------------------------
  # * 描绘内容
  #----------------------------------------------------------------------------
  def refresh
    draw_icon(262, 0, 0)
    draw_currency_value($game_party.gold, Vocab::currency_unit, 28, 0, self.contents.width-32)
  end
end
class Scene_Menu < Scene_MenuBase
  #----------------------------------------------------------------------------
  # * 初始化
  #----------------------------------------------------------------------------
  def initialize
    super
    @select_actor = []
  end
  #----------------------------------------------------------------------------
  # * 开始处理
  #----------------------------------------------------------------------------
  def start
    super
    create_frame_sprite
    create_menu_window
    create_menustatus_command
    create_gold_window
    create_select_sprite
  end
  #----------------------------------------------------------------------------
  # * 更新画面
  #----------------------------------------------------------------------------
  def update
    super
    @select_sprite.y = 12 + @menu_command.index * 24 + (@select_sprite.bitmap.height - 24) / 2
    @frame_sprite.update
    @select_sprite.update
  end
  #----------------------------------------------------------------------------
  # * 释放画面
  #----------------------------------------------------------------------------
  def terminate
    super
    @frame_sprite.dispose
    @select_sprite.dispose
  end
  #----------------------------------------------------------------------------
  # * 创建边框精灵
  #----------------------------------------------------------------------------
  def create_frame_sprite
    @frame_sprite = Sprite.new
    @frame_sprite.bitmap = Cache.system("素材1")
  end
  #----------------------------------------------------------------------------
  # * 创建选择精灵
  #----------------------------------------------------------------------------
  def create_select_sprite
    @select_sprite = Sprite.new
    @select_sprite.bitmap = Cache.system("素材2")
    @select_sprite.x = 148
    @select_sprite.y = 12 + @menu_command.index * 24 + (@select_sprite.bitmap.height - 24) / 2
  end
  #----------------------------------------------------------------------------
  # * 创建菜单选项
  #----------------------------------------------------------------------------
  def create_menu_window
    @menu_command = Window_MenuCommand.new
    @menu_command.set_handler(:item,      method(:item_ok))
    @menu_command.set_handler(:skill,     method(:command_personal))
    @menu_command.set_handler(:equip,     method(:command_personal))
    @menu_command.set_handler(:status,    method(:command_personal))
    @menu_command.set_handler(:formation, method(:command_personal))
    @menu_command.set_handler(:save,      method(:save_ok))
    @menu_command.set_handler(:game_end,  method(:game_end_ok))
    @menu_command.set_handler(:cancel,    method(:return_scene))
    @menu_command.select(@last_index)
    @menu_command.opacity = 0
  end
  #----------------------------------------------------------------------------
  # * 创建人物状态选单
  #----------------------------------------------------------------------------
  def create_menustatus_command
    @menustatus_command = Window_NewMenuStatus.new
    @menustatus_command.set_handler(:ok    , method(:status_ok))
    @menustatus_command.set_handler(:cancel, method(:status_cancel))
    @menustatus_command.active = false
    @menustatus_command.opacity = 0
  end
  #----------------------------------------------------------------------------
  # * 创建金钱窗口
  #----------------------------------------------------------------------------
  def create_gold_window
    @gold_window = Window_NewGold.new
    @gold_window.opacity = 0
  end
  #----------------------------------------------------------------------------
  # * "物品"选项确定
  #----------------------------------------------------------------------------
  def item_ok
    SceneManager.call(Scene_Item)
    @last_index = @menu_command.index
  end
  #----------------------------------------------------------------------------
  # * "技能""装备""状态""整队"选项确定
  #----------------------------------------------------------------------------
  def command_personal
    @menu_command.active = false
    @menustatus_command.active = true
    @last_index = @menu_command.index
  end
  #----------------------------------------------------------------------------
  # * "存档"选项确定
  #----------------------------------------------------------------------------
  def save_ok
    SceneManager.call(Scene_Save)
    @last_index = @menu_command.index
  end
  #----------------------------------------------------------------------------
  # * "结束游戏"选项确定
  #----------------------------------------------------------------------------
  def game_end_ok
    SceneManager.call(Scene_End)
    @last_index = @menu_command.index
  end
  #----------------------------------------------------------------------------
  # * 状态窗口确定
  #----------------------------------------------------------------------------
  def status_ok
    $game_party.menu_actor = $game_actors[@menustatus_command.current_ext]
    case @menu_command.current_symbol
    when :skill
      SceneManager.call(Scene_Skill)
    when :equip
      SceneManager.call(Scene_Equip)
    when :status
      SceneManager.call(Scene_Status)
    when :formation
      case @select_actor.size
      when 0
        @select_actor[0] = @menustatus_command.index
        @menustatus_command.active = true
      when 1
        @select_actor[1] = @menustatus_command.index
        $game_party.swap_order(@select_actor[0], @select_actor[1])
        @select_actor = []
        @menustatus_command.refresh
        @menu_command.active = true
      end
    end
  end
  #----------------------------------------------------------------------------
  # * 状态窗口取消
  #----------------------------------------------------------------------------
  def status_cancel
    @menu_command.active = true
    @menustatus_command.active = false
  end
end[/pre]

请命名为“素材1"

请命名为“素材1"

请命名为“素材2"

请命名为“素材2"


素材保存Graphics>System 就行了
