还是关于状态栏背景图片的“缝隙”问题

负零

经过论坛几位大神的指点，已经改善了很多，在此先由衷表示感谢，感谢指点。

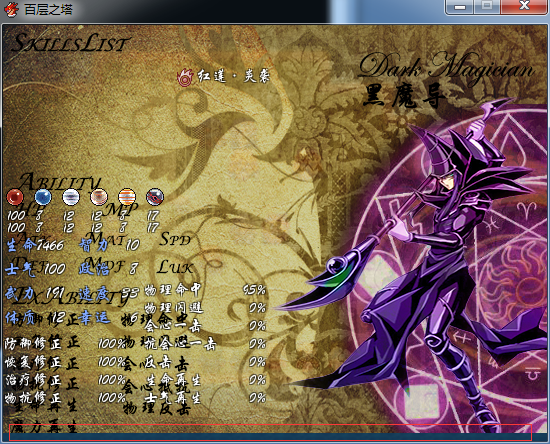

以为将印象中的heightmax从412修正为416能解决问题，回来测试的时候似乎并未解决最下端问题，脚本及图片附上：请再次指点。

[pre lang="ruby"]#encoding:utf-8
#==============================================================================
# ■ Window_Status
#------------------------------------------------------------------------------
# 　状态画面中，显示角色基本信息的窗口。
#==============================================================================
class Window_Status < Window_Selectable
        #--------------------------------------------------------------------------
        # ● 初始化对象
        #--------------------------------------------------------------------------
        def initialize(actor)
                super(0, 0, 544, 416)
                @actor = actor
                refresh
                activate
    self.opacity=0
                @data = []
        end
  def standard_padding
    return 0
  end
        #--------------------------------------------------------------------------
        # ● 设置角色
        #--------------------------------------------------------------------------
        def actor=(actor)
                return if @actor == actor
                @actor = actor
                refresh
        end
        #--------------------------------------------------------------------------
        # ● 刷新
        #--------------------------------------------------------------------------
        def refresh
                contents.clear
                draw_block1   (0)
                draw_skill
        end
        #--------------------------------------------------------------------------
        # ● 绘制区域 1
        #--------------------------------------------------------------------------
        def draw_block1(y)
#~     draw_window_backg
                draw_backg
#~                 draw_actor_name(@actor, 4, y)
#~                 draw_actor_class(@actor, 128, y)
                draw_basic_info(136, y)
                draw_parameters(32, y)
                draw_xparameters
                draw_sparameters
#~                 draw_equipments(288, y)
#~                 draw_description(4, y)
        end
        #--------------------------------------------------------------------------
        # ● 绘制水平线
        #--------------------------------------------------------------------------
        def draw_horz_line(y)
                line_y = y + line_height / 2 - 1
                contents.fill_rect(0, line_y, contents_width, 2, line_color)
        end
        #--------------------------------------------------------------------------
        # ● 获取水平线的颜色
        #--------------------------------------------------------------------------
        def line_color
                color = normal_color
                color.alpha = 48
                color
        end
        #--------------------------------------------------------------------------
        # ● 绘制基本信息
        #--------------------------------------------------------------------------
        def draw_basic_info(x, y)
                w=28
                rct_w=32
                rct_h=24
                y_z=160
                x_z=0
                #~  draw_actor_icons(@actor, x, y + line_height * 1)绘制状态图标
                contents.font.size=16
#~                 draw_actor_hp(@actor, 160, 200,width= 100)
#~                 draw_actor_mp(@actor, 160, 224,width= 100)
                draw_icon(6, x_z  , y_z    , enabled = true)
                draw_icon(3, x_z+w  , y_z  , enabled = true)
                draw_icon(4, x_z+w*2  , y_z, enabled = true)
                draw_icon(8, x_z+w*3  , y_z, enabled = true)
                draw_icon(5, x_z+w*4  , y_z, enabled = true)
                draw_icon(10, x_z+w*5  , y_z, enabled = true)

    draw_text(x_z+4 ,y_z+w-8    ,rct_w,rct_h,@actor.m5_20150228_skill_point["火"])
                draw_text(x_z+w+4 ,y_z+w-8  ,rct_w,rct_h,@actor.m5_20150228_skill_point["水"])
                draw_text(x_z+w*2+4 ,y_z+w-8,rct_w,rct_h,@actor.m5_20150228_skill_point["光"])
                draw_text(x_z+w*3+4 ,y_z+w-8,rct_w,rct_h,@actor.m5_20150228_skill_point["风"])
                draw_text(x_z+w*4+4 ,y_z+w-8,rct_w,rct_h,@actor.m5_20150228_skill_point["地"])
                draw_text(x_z+w*5+4 ,y_z+w-8,rct_w,rct_h,@actor.m5_20150228_skill_point["混沌"])

                draw_text(x_z+4 ,y_z+w+4    ,rct_w,rct_h,@actor.m5_20150228_skill_point_use["火"])
                draw_text(x_z+w+4 ,y_z+w+4  ,rct_w,rct_h,@actor.m5_20150228_skill_point_use["水"])
                draw_text(x_z+w*2+4 ,y_z+w+4,rct_w,rct_h,@actor.m5_20150228_skill_point_use["光"])
                draw_text(x_z+w*3+4 ,y_z+w+4,rct_w,rct_h,@actor.m5_20150228_skill_point_use["风"])
                draw_text(x_z+w*4+4 ,y_z+w+4,rct_w,rct_h,@actor.m5_20150228_skill_point_use["地"])
                draw_text(x_z+w*5+4 ,y_z+w+4,rct_w,rct_h,@actor.m5_20150228_skill_point_use["混沌"])
        end
        #--------------------------------------------------------------------------
        # ● 绘制技能
        #--------------------------------------------------------------------------
        def draw_skill
                dx = 170; dy = 40
                contents.font.size=16
                for skill in @actor.skills
                        next if skill.nil?
                        next unless @actor.added_skill_types.include?(skill.stype_id)
                        draw_item_name(skill, dx, dy)
                        #~  dx = dx == contents.width / 2 + 16 ? 0 : contents.width / 2 + 16
                        dy += line_height #if dx == 0
                        return if dy + line_height > contents.height
                end
        end
        #--------------------------------------------------------------------------
        # ● 绘制普通能力值
  #def mhp;  param(0);   end    # 最大HP          Maximum Hit Point
  #def mmp;  param(1);   end    # 最大MP          Maximum Magic Point
  #def atk;  param(2);   end    # 物理攻击        ATtacK power
  #def def;  param(3);   end    # 物理防御        DEFense power
  #def mat;  param(4);   end    # 魔法攻击        Magic ATtack power
  #def mdf;  param(5);   end    # 魔法防御        Magic DeFense power
  #def agi;  param(6);   end    # 敏 捷 值        AGIlity
  #def luk;  param(7);   end    # 幸 运 值        LUcK
        #--------------------------------------------------------------------------
        def draw_parameters(x, y)
                contents.font.size=18
    w=24
                rct_w=32
                rct_h=24
                y_z=210
                x_z=0
#~     draw_icon(15, x_z , y_z, enabled = true)
#~                 draw_icon(16, x_z , y_z+w, enabled = true)
#~                 draw_icon(17, x_z , y_z+w*2, enabled = true)
#~                 draw_icon(18, x_z , y_z+w*3, enabled = true)
#~                 draw_icon(19, x_z+70 , y_z, enabled = true)
#~                 draw_icon(10, x_z+70 , y_z+w, enabled = true)
#~                 draw_icon(21, x_z+70 , y_z+w*2, enabled = true)
#~     draw_icon(21, x_z+70 , y_z+w*3, enabled = true)
    draw_actor_param(@actor, x_z, y_z  , 0)
    draw_actor_param(@actor, x_z, y_z + w * 1, 1)
    draw_actor_param(@actor, x_z, y_z + w * 2, 2)
    draw_actor_param(@actor, x_z, y_z + w * 3, 3)
    draw_actor_param(@actor, 74, y_z , 4)
    draw_actor_param(@actor, 74, y_z + w * 1, 5)
    draw_actor_param(@actor, 74, y_z + w * 2, 6)
    draw_actor_param(@actor, 74, y_z + w * 3, 7)
        end
  #--------------------------------------------------------------------------
        # ● 绘制X能力值
        #--------------------------------------------------------------------------
        def draw_xparameters
                x=140
                l=18
                y=Graphics.height-l*10
                contents.font.size=16
                draw_actor_xparam(@actor, x, y+l*1,0 , "物理命中")
                draw_actor_xparam(@actor, x, y+l*2,1 , "物理闪避")
                draw_actor_xparam(@actor, x, y+l*3,2 , "会心一击")
                draw_actor_xparam(@actor, x, y+l*4,3 , "抗会心一击")
                #~  draw_actor_xparam(@actor, x, y+l*5,4 , "技能闪避")
                #~  draw_actor_xparam(@actor, x, y+l*6,5 , "技能反射")
                draw_actor_xparam(@actor, x, y+l*5,6 , "反击")
                draw_actor_xparam(@actor, x, y+l*6,7 , "生命再生")
                draw_actor_xparam(@actor, x, y+l*7,8 , "士气再生")
                #~  draw_actor_xparam(@actor, x, y+l*10,9 , "怒气增长")
        end
  #--------------------------------------------------------------------------
        # ● 绘制S能力值
        #--------------------------------------------------------------------------
        def draw_sparameters
                x=0
                l=18
                y=Graphics.height-l*7
                contents.font.size=16
                draw_actor_sparam(@actor, x, y+l*1, 1,"防御修正")
                draw_actor_sparam(@actor, x, y+l*2, 2,"恢复修正")
                draw_actor_sparam(@actor, x, y+l*3, 3,"治疗修正")
                #~  draw_actor_sparam(@actor, x, y+l*4, 4,"MP消费率")
                #~  draw_actor_sparam(@actor, x, y+l*5, 5,"TP消耗率")
                draw_actor_sparam(@actor, x, y+l*4, 6,"物抗修正")
                #~  draw_actor_sparam(@actor, x, y+l*7, 7,"魔法伤害加成")
                #~  draw_actor_sparam(@actor, x, y+l*8, 8,"地形伤害加成")
                #~  draw_actor_sparam(@actor, x, y+l*9, 9,"经验获得加成")
        end
  #--------------------------------------------------------------------------
        # ● 绘制人物背景
        #--------------------------------------------------------------------------
        def draw_backg
                actor=@actor
                actor_bg(actor.id)
        end
        def actor_bg(file_name)
                bitmap = Cache.picture("/Actor#{file_name}_Status")
                src_rect = Rect.new(0,0,544,416)
                contents.blt(0, 0, bitmap, src_rect,255)
        end
  #--------------------------------------------------------------------------
        # ● 绘制窗口背景
        #--------------------------------------------------------------------------
#~         def draw_window_backg
#~                 windowbg = Cache.picture("/windowbg")
#~                 src_rect = Rect.new(0,0,windowbg.width ,windowbg.height)
#~                 contents.blt(0, 0, windowbg, src_rect,125)
#~         end
end[/pre]

cinderelmini

想了一下。。。果然还是来传教惹……
【Sprite大法好！！】
总之就是不在Window里的contents来生成背景，而是用叠在后方的精灵，
这样就不会被窗口尺寸限制到大小之类的了，
代码如下：

点击展开／收起

1. #encoding:utf-8

2. #==============================================================================

3. # ■ Window_Status

4. #------------------------------------------------------------------------------

5. # 　状态画面中，显示角色基本信息的窗口。

6. #==============================================================================

7. class Window_Status < Window_Selectable

8.   #--------------------------------------------------------------------------

9.   # ● 初始化对象

10.   #--------------------------------------------------------------------------

11.   def initialize(actor)

12.     @back_sprite = Sprite.new

13.     @back_sprite.bitmap = Bitmap.new(544, 416)

14.     super(0, 0, 544, 416)

15.     @actor = actor

16.     refresh

17.     activate

18.     self.opacity=0

19.     @data = []

20.   end

21.

22.   #--------------------------------------------------------------------------

23.   # ● 释放

24.   #--------------------------------------------------------------------------

25.   def dispose

26.     super

27.     @back_sprite.bitmap.dispose

28.     @back_sprite.dispose

29.   end

30.   #--------------------------------------------------------------------------

31.   # ● 窗口边距

32.   #--------------------------------------------------------------------------

33.   def standard_padding

34.     return 0

35.   end

36.   #--------------------------------------------------------------------------

37.   # ● 设置角色

38.   #--------------------------------------------------------------------------

39.   def actor=(actor)

40.     return if @actor == actor

41.     @actor = actor

42.     refresh

43.   end

44.   #--------------------------------------------------------------------------

45.   # ● 刷新

46.   #--------------------------------------------------------------------------

47.   def refresh

48.     contents.clear

49.     draw_block1(0)

50.     draw_skill

51.   end

52.   #--------------------------------------------------------------------------

53.   # ● 绘制区域 1

54.   #--------------------------------------------------------------------------

55.   def draw_block1(y)

56. #~     draw_window_backg

57.     draw_backg

58. #~     draw_actor_name(@actor, 4, y)

59. #~     draw_actor_class(@actor, 128, y)

60.     draw_basic_info(136, y)

61.     draw_parameters(32, y)

62.     draw_xparameters

63.     draw_sparameters

64. #~     draw_equipments(288, y)

65. #~     draw_description(4, y)

66.   end

67.   #--------------------------------------------------------------------------

68.   # ● 绘制水平线

69.   #--------------------------------------------------------------------------

70.   def draw_horz_line(y)

71.     line_y = y + line_height / 2 - 1

72.     contents.fill_rect(0, line_y, contents_width, 2, line_color)

73.   end

74.   #--------------------------------------------------------------------------

75.   # ● 获取水平线的颜色

76.   #--------------------------------------------------------------------------

77.   def line_color

78.     color = normal_color

79.     color.alpha = 48

80.     color

81.   end

82.   #--------------------------------------------------------------------------

83.   # ● 绘制基本信息

84.   #--------------------------------------------------------------------------

85.   def draw_basic_info(x, y)

86.     w = 28

87.     rct_w = 32

88.     rct_h = 24

89.     y_z = 160

90.     x_z = 0

91. #~     draw_actor_icons(@actor, x, y + line_height * 1)绘制状态图标

92.     contents.font.size=16

93. #~     draw_actor_hp(@actor, 160, 200,width= 100)

94. #~     draw_actor_mp(@actor, 160, 224,width= 100)

95.     draw_icon(6,  x_z,         y_z, enabled = true)

96.     draw_icon(3,  x_z + w,     y_z, enabled = true)

97.     draw_icon(4,  x_z + w * 2, y_z, enabled = true)

98.     draw_icon(8,  x_z + w * 3, y_z, enabled = true)

99.     draw_icon(5,  x_z + w * 4, y_z, enabled = true)

100.     draw_icon(10, x_z + w * 5, y_z, enabled = true)

101.

102.     draw_text(x_z + 4,         y_z + w - 8, rct_w, rct_h, @actor.m5_20150228_skill_point["火"])

103.     draw_text(x_z + w + 4,     y_z + w - 8, rct_w, rct_h, @actor.m5_20150228_skill_point["水"])

104.     draw_text(x_z + w * 2 + 4 ,y_z + w - 8, rct_w, rct_h, @actor.m5_20150228_skill_point["光"])

105.     draw_text(x_z + w * 3 + 4 ,y_z + w - 8, rct_w, rct_h, @actor.m5_20150228_skill_point["风"])

106.     draw_text(x_z + w * 4 + 4 ,y_z + w - 8, rct_w, rct_h, @actor.m5_20150228_skill_point["地"])

107.     draw_text(x_z + w * 5 + 4 ,y_z + w - 8, rct_w, rct_h, @actor.m5_20150228_skill_point["混沌"])

108.

109.     draw_text(x_z + 4,         y_z + w + 4, rct_w, rct_h, @actor.m5_20150228_skill_point_use["火"])

110.     draw_text(x_z + w + 4,     y_z + w + 4, rct_w, rct_h, @actor.m5_20150228_skill_point_use["水"])

111.     draw_text(x_z + w * 2 + 4, y_z + w + 4, rct_w, rct_h, @actor.m5_20150228_skill_point_use["光"])

112.     draw_text(x_z + w * 3 + 4, y_z + w + 4, rct_w, rct_h, @actor.m5_20150228_skill_point_use["风"])

113.     draw_text(x_z + w * 4 + 4, y_z + w + 4, rct_w, rct_h, @actor.m5_20150228_skill_point_use["地"])

114.     draw_text(x_z + w * 5 + 4, y_z + w + 4, rct_w, rct_h, @actor.m5_20150228_skill_point_use["混沌"])

115.   end

116.   #--------------------------------------------------------------------------

117.   # ● 绘制技能

118.   #--------------------------------------------------------------------------

119.   def draw_skill

120.     dx = 170; dy = 40

121.     contents.font.size=16

122.     for skill in @actor.skills

123.       next if skill.nil?

124.       next unless @actor.added_skill_types.include?(skill.stype_id)

125.       draw_item_name(skill, dx, dy)

126. #~       dx = dx == contents.width / 2 + 16 ? 0 : contents.width / 2 + 16

127.       dy += line_height #if dx == 0

128.       return if dy + line_height > contents.height

129.     end

130.   end

131.   #--------------------------------------------------------------------------

132.   # ● 绘制普通能力值

133.   #def mhp;  param(0);   end    # 最大HP          Maximum Hit Point

134.   #def mmp;  param(1);   end    # 最大MP          Maximum Magic Point

135.   #def atk;  param(2);   end    # 物理攻击        ATtacK power

136.   #def def;  param(3);   end    # 物理防御        DEFense power

137.   #def mat;  param(4);   end    # 魔法攻击        Magic ATtack power

138.   #def mdf;  param(5);   end    # 魔法防御        Magic DeFense power

139.   #def agi;  param(6);   end    # 敏 捷 值        AGIlity

140.   #def luk;  param(7);   end    # 幸 运 值        LUcK

141.   #--------------------------------------------------------------------------

142.   def draw_parameters(x, y)

143.     contents.font.size=18

144.     w = 24

145.     rct_w = 32

146.     rct_h = 24

147.     y_z = 210

148.     x_z = 0

149. #~     draw_icon(15, x_z , y_z, enabled = true)

150. #~     draw_icon(16, x_z , y_z+w, enabled = true)

151. #~     draw_icon(17, x_z , y_z+w*2, enabled = true)

152. #~     draw_icon(18, x_z , y_z+w*3, enabled = true)

153. #~     draw_icon(19, x_z+70 , y_z, enabled = true)

154. #~     draw_icon(10, x_z+70 , y_z+w, enabled = true)

155. #~     draw_icon(21, x_z+70 , y_z+w*2, enabled = true)

156. #~     draw_icon(21, x_z+70 , y_z+w*3, enabled = true)

157.     draw_actor_param(@actor, x_z, y_z,         0)

158.     draw_actor_param(@actor, x_z, y_z + w * 1, 1)

159.     draw_actor_param(@actor, x_z, y_z + w * 2, 2)

160.     draw_actor_param(@actor, x_z, y_z + w * 3, 3)

161.     draw_actor_param(@actor, 74,  y_z,         4)

162.     draw_actor_param(@actor, 74,  y_z + w * 1, 5)

163.     draw_actor_param(@actor, 74,  y_z + w * 2, 6)

164.     draw_actor_param(@actor, 74,  y_z + w * 3, 7)

165.   end

166.   #--------------------------------------------------------------------------

167.   # ● 绘制X能力值

168.   #--------------------------------------------------------------------------

169.   def draw_xparameters

170.     x = 140

171.     l = 18

172.     y = Graphics.height - l * 10

173.     contents.font.size = 16

174.     draw_actor_xparam(@actor, x, y + l * 1, 0, "物理命中")

175.     draw_actor_xparam(@actor, x, y + l * 2, 1, "物理闪避")

176.     draw_actor_xparam(@actor, x, y + l * 3, 2, "会心一击")

177.     draw_actor_xparam(@actor, x, y + l * 4, 3, "抗会心一击")

178. #~     draw_actor_xparam(@actor, x, y + l * 5, 4 , "技能闪避")

179. #~     draw_actor_xparam(@actor, x, y + l * 6, 5 , "技能反射")

180.     draw_actor_xparam(@actor, x, y + l * 5, 6, "反击")

181.     draw_actor_xparam(@actor, x, y + l * 6, 7, "生命再生")

182.     draw_actor_xparam(@actor, x, y + l * 7, 8, "士气再生")

183. #~     draw_actor_xparam(@actor, x, y + l * 10, 9, "怒气增长")

184.   end

185.   #--------------------------------------------------------------------------

186.   # ● 绘制S能力值

187.   #--------------------------------------------------------------------------

188.   def draw_sparameters

189.     x = 0

190.     l = 18

191.     y = Graphics.height - l * 7

192.     contents.font.size = 16

193.     draw_actor_sparam(@actor, x, y + l * 1, 1, "防御修正")

194.     draw_actor_sparam(@actor, x, y + l * 2, 2, "恢复修正")

195.     draw_actor_sparam(@actor, x, y + l * 3, 3, "治疗修正")

196. #~     draw_actor_sparam(@actor, x, y + l * 4, 4, "MP消费率")

197. #~     draw_actor_sparam(@actor, x, y + l * 5, 5, "TP消耗率")

198.     draw_actor_sparam(@actor, x, y + l * 4, 6, "物抗修正")

199. #~     draw_actor_sparam(@actor, x, y + l * 7, 7, "魔法伤害加成")

200. #~     draw_actor_sparam(@actor, x, y + l * 8, 8, "地形伤害加成")

201. #~     draw_actor_sparam(@actor, x, y + l * 9, 9, "经验获得加成")

202.   end

203.   #--------------------------------------------------------------------------

204.   # ● 绘制人物背景

205.   #--------------------------------------------------------------------------

206.   def draw_backg

207.     @back_sprite.bitmap.clear

208.     bitmap = Cache.picture("Actor#{@actor.id}_Status")

209.     @back_sprite.bitmap.blt(0, 0, bitmap, Rect.new(0, 0, 544, 416))

210.   end

211.

212.   #--------------------------------------------------------------------------

213.   # ● 绘制窗口背景

214.   #--------------------------------------------------------------------------

215. #~   def draw_window_backg

216. #~     windowbg = Cache.picture("/windowbg")

217. #~     src_rect = Rect.new(0,0,windowbg.width ,windowbg.height)

218. #~     contents.blt(0, 0, windowbg, src_rect,125)

219. #~   end

220.

221.   #--------------------------------------------------------------------------

222.   # ● 绘制能力值

223.   #--------------------------------------------------------------------------

224.   def draw_actor_param(actor, x, y, param_id)

225. #~     change_color(system_color)

226. #~     draw_text(x, y, 120, line_height, Vocab::param(param_id))

227.     change_color(normal_color)

228.     draw_text(x, y, 36, line_height, actor.param(param_id), 2)

229.   end

230.

231.

232. end


复制代码

替换掉你原来的就好（有必要的话请先备份一下你原来的脚本……）
PS:顺便整理了一下代码缩进之类的，简直逼死强迫症…………
PS2:顺便兼容了LZ另外一个问题（去掉各种能力值的描述蓝字，如果不需要这个功能，脚本最后一个方法去掉就好。）
PS3:不知道之前图片命名前面需要一个斜杠吗？如果找不到文件的话试试把图片名前面的斜杠去掉？或者在脚本里加回去？
